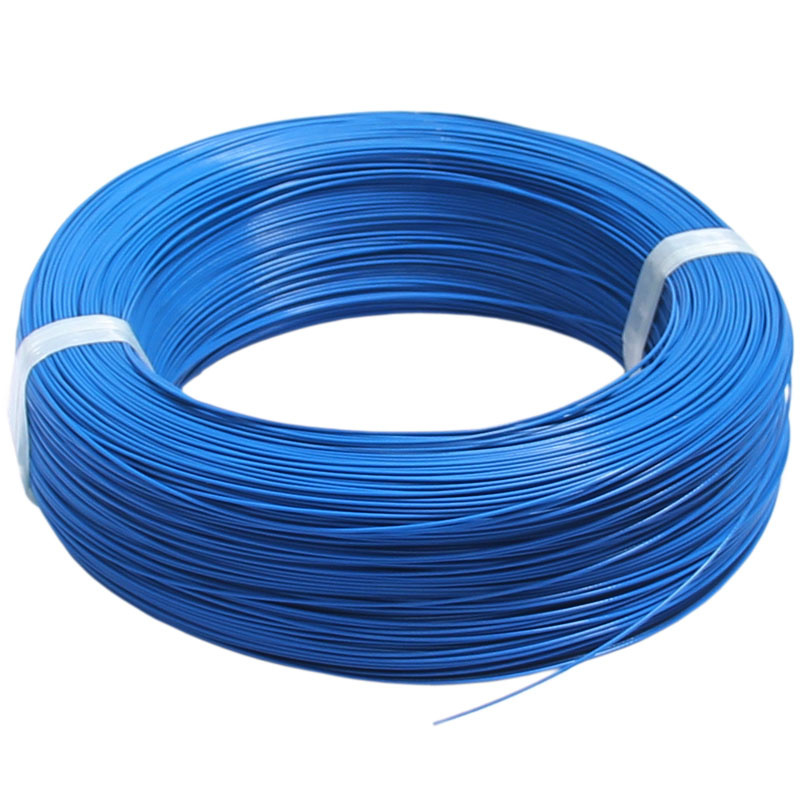

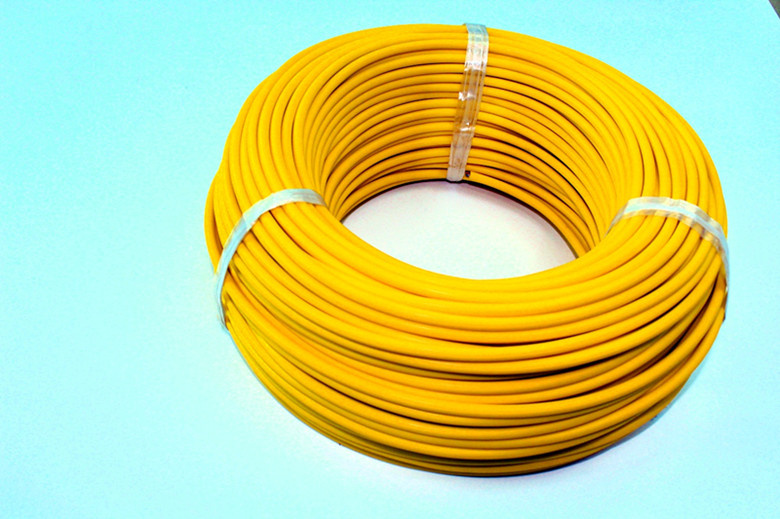

Insulated PVC Cable with UL1015

Name: Insulated PVC Cable with UL1015
Brand: all-electronics-online.com
SKU: 695653615
Availability: InStock
Rating: 4.3 (150 reviews)

Price:	US $ 0.05-10/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL1015
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PVC Cable:	(UL1015)
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Insulation Material:	PVC
Certification:	RoHS
Conductor Material:	Tinned Copper&Bare Copper
Brand:	Dewei

Product Description

Nominal Voltage:600V
Rated Temperature :105ºC
Conductor:Tinned copper&bare copper
Insulator:PVC
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect

AWG	con.of conductor.	Thickness of insulator	over diameter	Packing	Max.con.resistance at 20ºC
AWG	NO/mm	mm	mm	mt/coils	ohm/kft/20ºC
26#	7/0.16	0.79	2.05	610	45.2
24#	11/0.16	0.79	2.2	610	29.3
22#	17/0.16	0.79	2.35	610	16.7
20#	21/0.18	0.79	2.55	610	10.5
18#	34/0.18	0.79	2.8	610	6.64
16#	26/0.254	0.79	3.1	305	4.18
14#	41/0.254	0.79	3.5	305	2.62
12#	65/0.254	0.79	3.95	305	1.65
10#	105/0.254	0.79	5.05	305	1.04

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
