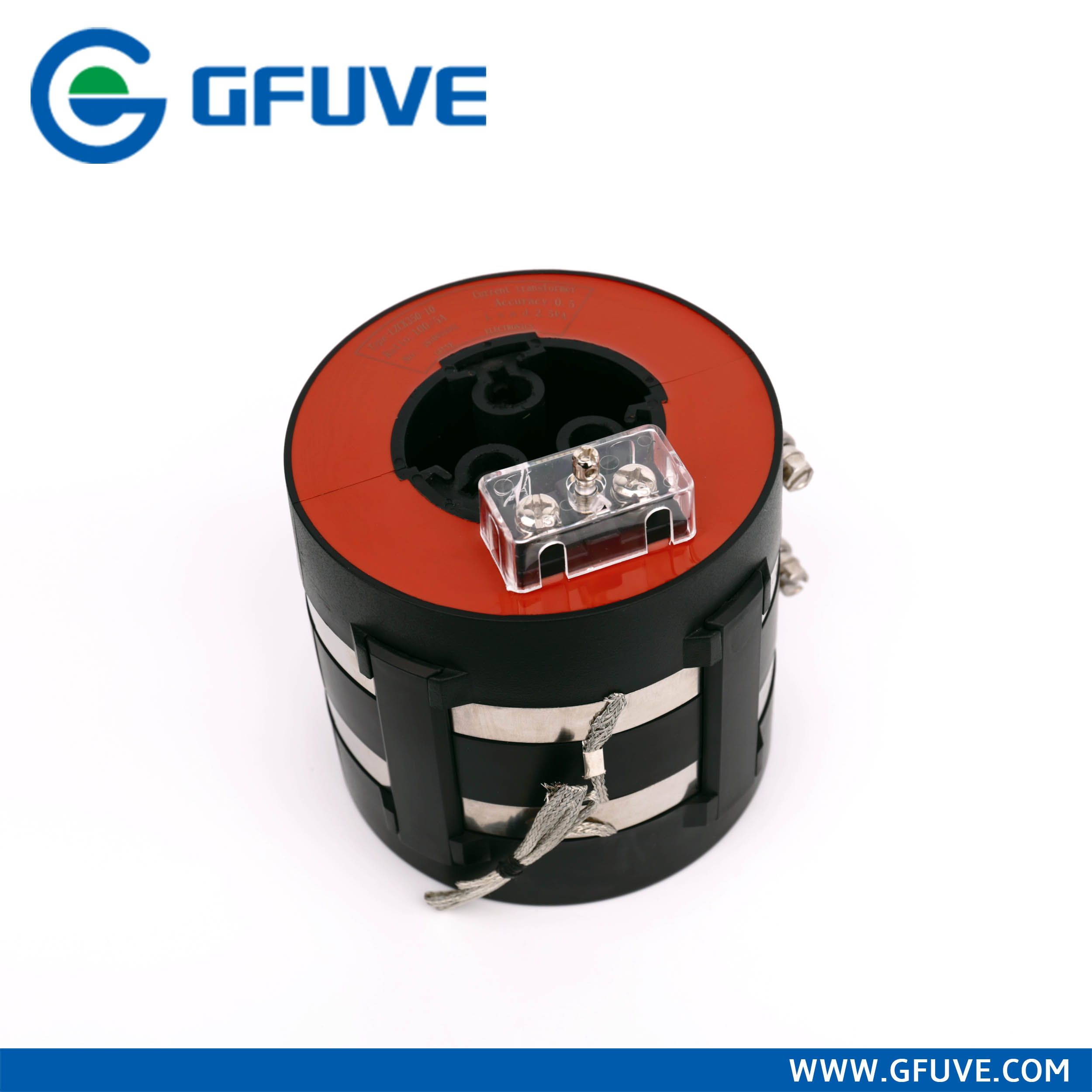

Insulated Resin High-Precision Split Core Current Transformer

Name: Insulated Resin High-Precision Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 721684062
Availability: InStock
Rating: 4.4 (124 reviews)

Price:	Negotiable/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZCK350-10
Standards:	IEC60044-1; IEC 61869-2; Ntc 2205; GB1208-2006
Rated Primary Current:	20-600A
Rated Load:	≤25va
Rated Frequency:	50Hz or 60Hz
Rated Secondary Current:	5A or 1A
Instrument Security Factor:	Fs≤10
Weight (Kg):	3.1
Operating Temperature:	-35°c to +55°c
Altitude:	<3500 Meters
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

LZCK series split core current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in compact fully insulated ring network switchgears such as ABB-SafeRing/SafePlus...and cable distribution boxes.

The transformer can be directly installed at the inlet and outlet cables.The slice is imported silicon material. The semicircular ring core and secondary windings are vacuum poured by insulated resin.

Modelo	Corriente nominal primaria	Carga nominal	Apertura (mm)	Descripción (mm)	Peso (kg)	Material	Impermeable
LZCK-55	100-1200A	≤10VA	φ55	180×138×52	2	PC	IP65
LMCK185-10	300-3000A	≤25VA	φ185	350×283×55	4.5	PC	IP65
LZCK310-10	300-600A	≤10VA	φ50	φ50 x φ110 x 32	1	Resina	Caja de silicio (opcional)
LZCK322-10	30-600A	≤10VA	φ50	φ50 x φ110 x 52	1.6	Resina	Caja de silicio (opcional)
LZCK350-10	20-600A	≤25VA	φ50	φ50 x φ110 x 105	3.1	Resina	Caja de silicio (opcional)
LZCG530-10	30-600A	≤20VA	φ45	φ45 x φ120 x 65	5	Resina	Caja de silicio (opcional)

More information please CLICK our website: http://gfuve.com/

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
