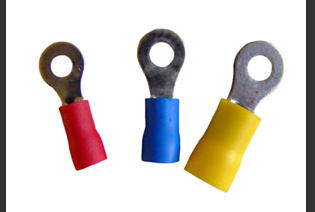

Insulated Ring Terminal Easy Entry

Name: Insulated Ring Terminal Easy Entry
Brand: all-electronics-online.com
SKU: 740054945
Availability: InStock
Rating: 4.5 (140 reviews)

Price:	US $ 0.24/Piece
Trade Terms:	FOB
Min Order:	3000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RV1.25-4
Markets:	North America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Size:	Various Size Available
Application:	Conduct Electricity
Type:	Socket Terminals
Material:	Copper

Product Description

Specifications
1)professional producer in terminal
2) nylon, copper
3) OEM provited
4) best quanlity, price and service

ABOUT PRODUCTS
1, material: Copper, brass
2, insulating tube: Nylon, pvc.
3, packing: 100pcs/bag, then put bags into inner box

We can supply: High quality terminal, connector, cable lug, cable accesorries
Types available:
RV series, RNB series, SV series, SNB series, V series, PTV series, PTN series, MPD series, FRD series, FDD series, MDD series, FDFD series, DBV series, PBDD series, BV series, BN series, E series, TE series, EN series, SC cable lugs series, GTY series
Besides, the strain clamp, suspension clamp, insulation piercing connector and the parallel groove connector is our main products.

Wenzhou ziyong electrical Co., Ltd is a comprehensive and production processing trading enterprise in Zhejiang Province which is approved by the Forgeign Trade Department in China, and has own import and export power. We are engaged in cable and cable accessories, Like insulation piercing connector, cable connectors and fittings, like insulators and cable lugs and other connectors, explosion-proof products, fuse products, transformers, auto parts to cars, electricity and electronic products, plastics, machinery and decorated products.

Item No		USA screw	Screw dia.d2(mm)	Dimension(mm)					Color
Item No		USA screw	Screw dia.d2(mm)	B	L	F	H	Dφ	Color
	RV 1.25-3	#4	3.2	5.7	17.8	4.95	10	4.3	red
	RVS 1.25-3.5	#6	3.7	5.7	17.8	4.95
	RVM 1.25-3.5	#6	3.7	6.6	20.1	6.3
	RVL 1.25-3.5	#6	4.3	8	21.5	7
	RVS 1.25-4	#8	4.3	6.6	20.1	6.3
	RVL 1.25-4	#8	4.3	8	21.5	7
	RV 1.25-5	#10	5.3	8	21.5	7
	RVL 1.25-5	#10	5.3	9.8	23	8.5
	RVS 1.25-6	1/4	6.4	9.8	23	8.5
	RV 1.25-6	1/4	6.4	11.6	27.5	11.1
	RV 1.25-8	5/16	8.1	11.6	27.5	11.1
	RV 1.25-10	3/8	10.5	13.6	31.6	13.9
	RV 1.25-12	1/2	13	19.2	36	16.5

Item No		USA screw	Screw dia.d2(mm)	Dimension(mm)					Color
Item No		USA screw	Screw dia.d2(mm)	B	L	F	H	Dφ	Color
	RV 2-3	#4	3.2	6.6	17.8	4.3	10	4.9	blue
	RVS 2-3.5	#6	3.7	6.6	17.8	4.3
	RVM 2-3.5	#6	3.7	6.6	20.1	7
	RVL 2-3.5	#6	3.7	8.5	22.5	7.75
	RVS 2-4	#8	4.3	6.6	21	7
	RVL 2-4	#8	4.3	8.5	22.5	7.75
	RV 2-5	#10	5.3	8.5	22.5	7.75
	RVL 2-5	#10	5.3	9.5	22.5	7.25
	RV 2-6	1/4	6.4	12	27.6	11
	RV 2-8	5/16	8.1	12	27.6	11
	RV 2-10	3/8	10.5	13.6	30.2	13.9
	RV 2-12	1/2	13	19.2	36.5	16.5






Item No		USA screw	Screw dia.d2(mm)	Dimension(mm)					Color
Item No		USA screw	Screw dia.d2(mm)	B	L	F	H	Dφ	Color
	RV 5.5-3.5	#6	3.7	7.2	21.4	5.9	13	6.7	yellow
	RVS 5.5-4	#8	4.3	7.2	21.4	5.9
	RVL 5.5-4	#8	4.3	9.5	25.5	8.3
	RV 5.5-5	#10	5.3	9.5	25.5	8.3
	RV 5.5-6	1/4	6.4	12	31.5	13
	RV 5.5-8	5/16	8.4	15	33.7	13.7
	RV 5.5-10	3/8	10.5	15	33.7	13.7
	RV 5.5-12	1/2	13	19.2	38.1	16

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
