Insulated Ring Terminals

Name: Insulated Ring Terminals
Brand: all-electronics-online.com
SKU: 688858831
Availability: InStock
Rating: 4.5 (149 reviews)

Price:	Negotiable/Piece
Min Order:	2000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Type:	Socket Terminals
Material:	Copper

Product Description

Product Description
I. About Products

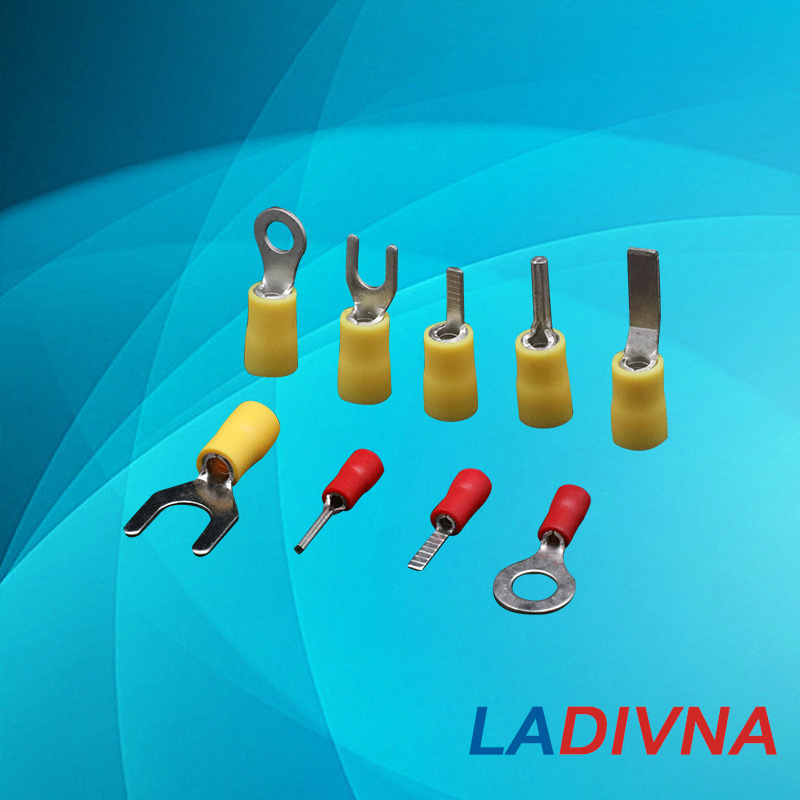

1. Products Name: Insulated Ring Terminals
2. Material: Brass or Copper
3. Insulating Tube: PVC
4. Packing: 100pcs/bag, then put bags into inner box, 20 boxes/carton
II. Picture and Specificatin about Insulated Ring Terminals

Lead section: 0.5-1.5mm2(22-16) Max current: =19A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
RV1.25-2.5	#4	3.2mm	5.7	17.8	4.95	10.0	4.3	Red
RV1.25-3.7	#6	3.7mm	5.7	17.8	4.95
RV1.25-3.7	#6	3.7mm	6.6	20.1	6.3
RV1.25-3.7	#6	3.7mm	7.2	21.2	7.0
RV1.25-4	#8	4.3mm	6.6	20.1	6.3
RV1.25-4	#8	4.3mm	8.0	21.5	7.0
RV1.25-5	#10	5.3mm	8.0	21.5	7.0
RV1.25-5	#10	5.3mm	9.5	23.3	8.0
RV1.25-5	#10	5.3mm	11.6	27.5	11.1
RV1.25-6	1/4	6.5mm	9.5	23	8.0
RV1.25-6	1/4	6.5mm	11.6	27.5	11.1
RV1.25-8	5/16	8.4mm	11.6	27.5	11.1
RV1.25-8	5/16	8.4mm	14.5	30.2	22.0
RV1.25-10	3/8	10.5mm	13.6	31.6	13.9
RV1.25-10	3/8	10.5mm	19.2	35	16
RV1.25-12	1/2	13.0mm	19.2	35.0	16.0

Lead section: 1.5-2.5mm2(16-14) Max current: =27A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
RV2-3.2	#4	3.2mm	6.6	17.8	4.3	10.0	4.9	Blue
RVS2-3.7	#6	3.7mm	6.6	17.8	4.3
RVM2-3.7	#6	3.7mm	6.6	21.0	7.0
RVL2-3.7	#6	3.7mm	8.5	22.5	7.75
RVS2-4	#8	4.3mm	6.6	21.0	7.0
RVL2-4	#8	4.3mm	8.5	22.5	7.75
RVS2-5	#10	5.3mm	8.5	22.5	7.75
RVL2-5	#10	5.3mm	9.5	22.5	7.25
RVS2-6	1/4	6.5mm	9.5	25.0	10.0
RV2-6	1/4	6.5mm	12.0	27.6	11.0
RV2-8	5/16	8.4mm	12.0	27.6	11.0
RVL2-8	5/16	8.4mm	14.5	30.2	13.9
RV2-10	3/8	10.5mm	13.6	30.2	13.9
RVL2-10	3/8	10.5mm	19.2	35.0	16.0
RV2-12	1/2	13.0mm	19.2	35.0	16.0

Lead section: 2.5-4mm2(14-12) Max current: =37A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
RV3.5-4	#8	4.3mm	8.0	24.5	7.7	12.5	6.2	Black
RVS3.5-5	#10	5.3mm	8.0	24.5	7.7
RVM3.5-5	#10	5.3mm	9.5	25.5	7.7
RVL3.5-5	#10	5.3mm	12.0	27.9	7.7
RV3.5-6	1/4	6.5mm	12.0	27.9	7.7
RV3.5-8	5/16	8.4mm	15.0	32.0	13.5
RV3.5-10	3/8	10.5mm	15.0	32.0	13.5
