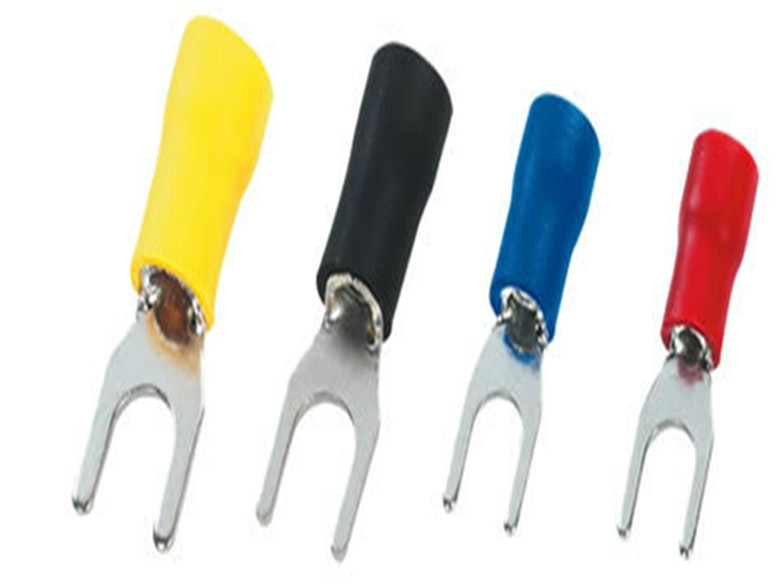

Insulated Spade Terminals/Terminal Connectors

Name: Insulated Spade Terminals/Terminal Connectors
Brand: all-electronics-online.com
SKU: 797418655
Availability: InStock
Rating: 4.6 (113 reviews)

Price:	US $ 0.2/Bag
Min Order:	1000/Bag
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TGS-1
Brand:	Longroad

Product Description

Section of lead:5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 19A
ITEMNO	Dimension							Color
	USABOLTNO	BOLT Dia.	B	L	F	H	DΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm
SV1.25 - 3	#4	3.2mm	5.7	21.2	6.5	10.0	4.3	red
SVS1.25 - 3.5	#6	3.7mm	5.7	21.2	6.5
SVL1.25 - 3.5	#6	3.7mm	6.4	21.2	6.5
SVS1.25 - 4	#8	4.3mm	6.4	21.2	6.5
SVM1.25 - 4	#8	4.3mm	7.2	21.2	6.5
SVL1.25 - 4	#8	4.3mm	8.1	21.2	6.5
SVS1.25 - 5	#10	5.3mm	8.1	21.2	6.5
SVL1.25 - 5	#10	5.3mm	9.5	21.2	6.5
SVS1.25 - 6	1/4	6.5mm	9.5	21.2	6.5
SVL1.25 - 6	1/4	6.5mm	12.0	27.2	11.0

Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14) Imax = 27A
ITEMNO	Dimension							Color
	USABOLTNO	BOLT Dia.	B	L	F	H	DΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm
SV2 - 3	#4	3.2mm	5.7	21.2	6.5	10.0	4.9	blue
SVS2 - 3.5	#6	3.7mm	5.7	21.2	6.5
SVL2 - 3.5	#6	3.7mm	6.0	21.2	6.5
SVS2 - 4	#8	4.3mm	6.4	21.2	6.5
SVM2 - 4	#8	4.3mm	7.2	21.2	6.5
SVL2 - 4	#8	4.3mm	8.1	21.2	6.5
SVS2 - 5	#10	5.3mm	8.1	21.2	6.5
SVL2 - 5	#10	5.3mm	9.5	21.2	6.5
SVS2 - 6	1/4	6.5mm	9.5	21.2	6.5
SVL2 - 6	1/4	6.5mm	12.0	27.2	11.0

Section of lead:2.5 - 4 mm² (USA Spec 14 - 12) Imax = 37A
ITEMNO	Dimension							Color
	USABOLTNO	BOLT Dia.	B	L	F	H	DΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm
SV3.5 - 4	#8	4.3mm	8.0	24.8	7.0	12.5	6.2	black
SV3.5 - 5	#10	5.3mm	8.0	24.8	7.0
SV3.5 - 6	1/4	6.5mm	12.0	28.0	12.1

Section of lead:4 - 6 mm² (USA Spec 12 - 10) Imax = 48A
ITEMNO	Dimension							Color
	USABOLTNO	BOLT Dia.	B	L	F	H	DΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm
SV5.5 - 3.5	#6	3.7mm	8.3	25.2	7.5	12.5	6.7	yellow
SVS5.5 - 4	#8	4.3mm	8.3	25.2	7.5
SVL5.5 - 4	#8	4.3mm	9.0	25.2	7.5
SV5.5 - 5	#10	5.3mm	9.0	25.2	7.5
SVS5.5 - 6	1/4	6.5mm	9.0	25.2	7.5
SVL5.5 - 6	1/4	6.5mm	12.0	31.2	12.0
SV5.5 - 8	5/16	8.4mm	14.0	30.0	11.5
