Insulated Spade Terminals

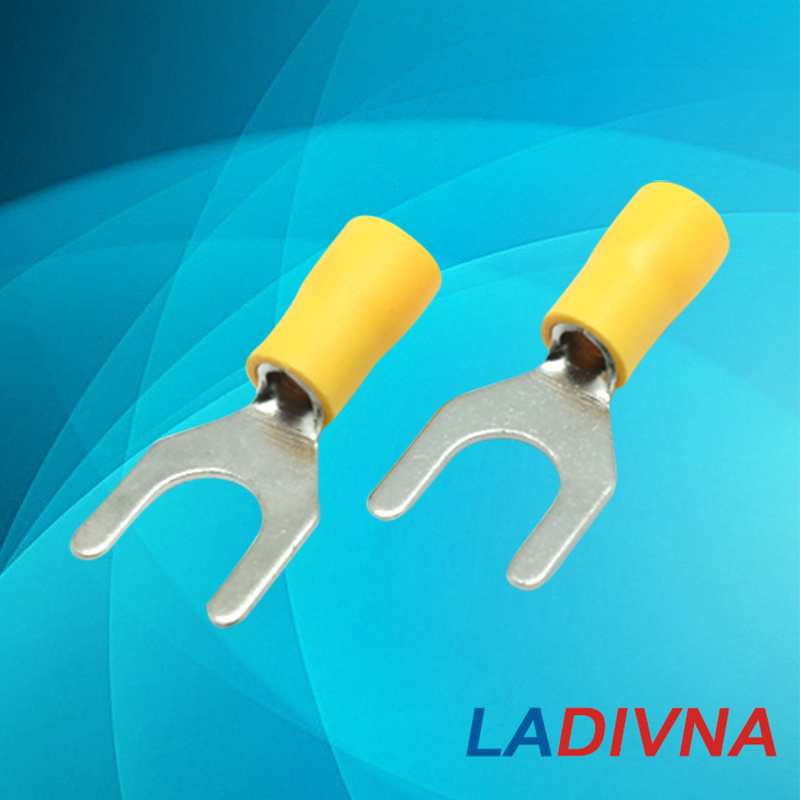

Name: Insulated Spade Terminals
Brand: all-electronics-online.com
SKU: 688871081
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	Negotiable/Piece
Min Order:	2000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Type:	Socket Terminals
Material:	Copper

Product Description

ead section:0.5~1.5mm2(A.W.G:22~16) Imax=19A material:pure copper thickness:0.75mm										thickness mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)						color
Item NO	USA BOLT NO	BOLT dia.d2(mm)	W	L	F	d1	H	Dφ	color	T
SV 1.25-3.2	#4	3.2	5.7	21.2	6.5	1.7	10	4.2	red	0.8
SVS 1.25-3.5	#6	3.7	5.7	21.2	6.5
SVL 1.25-3.5	#6	3.7	6.4	21.2	6.5
SVS 1.25-4	#8	4.3	6.4	21.2	6.5
SVM 1.25-4	#8	4.3	7.2	21.2	6.5
SVL 1.25-4	#8	4.3	8.1	21.2	6.5
SVS 1.25-5	#10	5.3	8.1	21.2	6.5
SVL 1.25-5	#10	5.3	9.5	21.2	6.5
SVS 1.25-6	1/4inch	6.5	9.5	21.2	6.5
SVL 1.25-6	1/4inch	6.5	12	27.2	11
SV1.25-8	5/16inch	8.5	13.5	26.7	11.5		10	4.2	RED	0.8
lead section:1.5~2.5mm2(A.W.G:16~14) Imax=27A material:pure copper thickness:0.8mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)						color	T
Item NO	USA BOLT NO	BOLT dia.d2(mm)	W	L	F	d1	H	Dφ	color	T
SV 2-3.2	#4	3.2	5.7	21.2	6.5	2.3	10	4.7	blue	0.8
SVS 2-3.5	#6	3.7	5.7	21.2	6.5
SVL 2-3.5	#6	3.7	6	21.2	6.5
SVS 2-4	#8	4.3	6.4	21.2	6.5
SVM 2-4	#8	4.3	7.2	21.2	6.5
SVL 2-4	#8	4.3	8.1	21.2	6.5
SVS 2-5	#10	5.3	8.1	21.2	6.5
SVL 2-5	#10	5.3	9.5	21.2	6.5
SVS 2-6	1/4INCH	6.5	9.5	21.2	6.5
SVL 2-6	1/4INCH	6.5	12	27.2	11
SV2-8	5/16INCH	8.5	13.5	27	11.5		10	4.7	BLUE
lead section:2.5~4mm2(A.W.G:14~12) Imax=37A material:pure copper thickness:1.0mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)						color	T
Item NO	USA BOLT NO	BOLT dia.d2(mm)	W	L	F	d1	H	Dφ	color	T
SV 3.5-3.5	#4	3.7	8	25.3	7.7	2.9	13	6.2	black	1
SV 3.5-4	#8	4.3	8		7.7
SV 3.5-5	#10	5.3	8		7.7
SV 3.5-6	1/4INCH	6.5	12	28.5	9.1
SV 3.5-8	5/16INCH	8.5	14	30.7	11.5
lead section:4~6mm2(A.W.G:12~10) Imax=48A material:pure copper thickness:1.0mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)						color	T
Item NO	USA BOLT NO	BOLT dia.d2(mm)	W	L	F	d1	H	Dφ	color	T
SV 5.5-3.5	#6	3.7	8.3	25.2	7	3.4	13	6.5	yellow	1
SVS 5.5-4	#8	4.3	8.3	25.2	7
SVL 5.5-4	#8	4.3	9	25.2	7
SV 5.5-5	#10	5.3	9	25.2	7
SVS 5.5-6	1/4	6.5	9	25.2	7
SVL 5.5-6	1/4	6.5	12	31.7	12
SV 5.5-8	5/16	8.5	14	30.7	11.5
