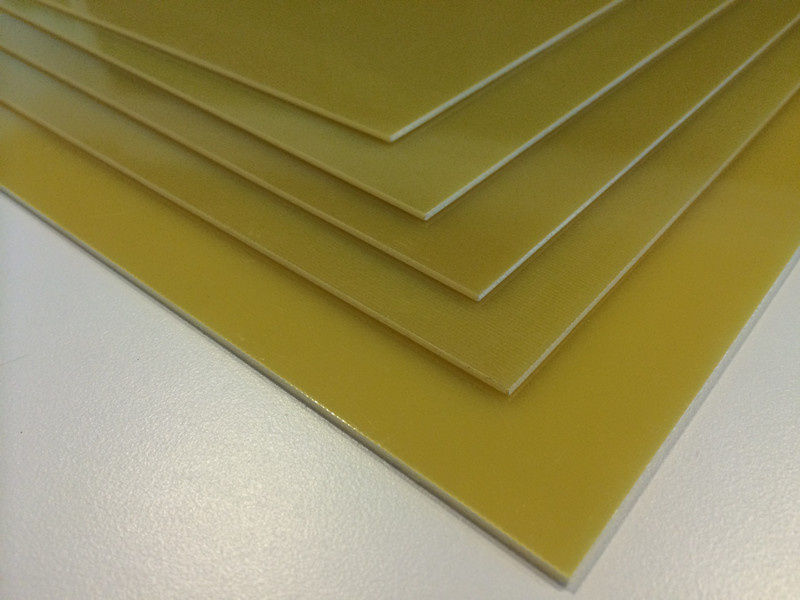

Insulating Board Epgc202

Prod Model:	epgc202, FR4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Size:	1020 X 1220mm
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV
Brand:	Nova

Product Description

Applications:
Widely used as insulating structural parts in electrical & mechanical equipments, such as generators, motors, transformers, terminal boards, PC boards, washers, and many others.

Advantages:
*High mechanical & electrical strength
*Excellent rigidity & dimensional stability
*Good dielectric properties
*Low water absorption
*Flame resistance (Type: FR-4)
*Tighter thickness tolerance
*Flat and straight panel
*Smooth and clean surface.
*Easy to machine

Specifications:
1) Grade: G10/FR4
2) Color: Natural Green; Yellow; Black
3) Thickness range: 0.1mm~100mm
*(101~200mm available in 915*1220mm & 1020*1220mm)
4) Sheet size: 915*1220mm; 1020*1220mm; 1020*2040mm; 1220*2440mm
5)Min. Order Quantity: 500 kgs in a lot

These grades are composed ofelectrical alkali-free glass woven fabric base impregnated with an epoxy resin binder under pressure and heat. They have extremely high mechanical & electrical strength. Good dielectric properties under dry and humid conditions. Excellent rigidity and dimensional stability.
G10/FR4 Temperature Index: 135 Degree Celsius


NEMA Grade: G-10, FR-4
(IEC Grade: EPGC201, EPGC202)
(DIN7735 Grade: Hgw2372, Hgw2372.1)
(ISO1642 Grade: EPGC1, EPGC2)
