Insulating Silicone Cloth

Name: Insulating Silicone Cloth
Brand: all-electronics-online.com
SKU: 748664555
Availability: InStock
Rating: 4.4 (143 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Meter
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

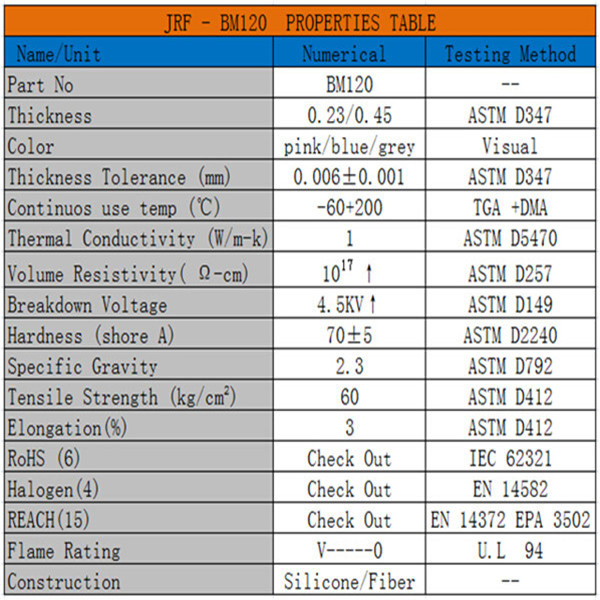

Prod Model:	BM120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness (Mm):	0.23/0.45
Specific Gravity:	2.3
Hardness (Shore A):	70+-5
Tensile Strength (Kg/Cm2):	60
Thickness Tolerance (Mm):	0.006+-0.001
Thermal Conductivity (W/M-K):	1.0
Chemistry:	Organic Insulation
Material:	Rubber
Thermal Rating:	200 200
Maximum Voltage:	<10KV
Brand:	Jrft
Application:	Electronic Products
Type:	Insulation Cloth
Color:	Pink/ Grey

Product Description

Product Introduction

BM120 Thermal insulation silicone cloth is glass fiber as reinforcement of silicone elastomeric material and high molecular polymer, also known as thermal silicone cloth, anti tearing silicone. the silica gel cloth can effectively reduce the thermal resistance between the electronic component and the radiator. It has good characteristic of electrical insulation, high dielectric strength, good thermal conductivity, high resistance chemical properties, in addition, It can withstand problem of short circuit of high voltage and metal piercing , and is an excellent thermal conductive insulation material to instead of the traditional mica and silicone grease.

Advantages
1.Dielectric strength high,
2.Good thermal conductivity,
3.Good toughness, tear resistance,
4.Surface soft, no viscosity on surface ,
5.High voltage insulation performance,
6.Strong withstand voltage, wear resistance,
7.Thin thickness, suitable for insulation and thermal power device.

Application:
1. Military, aviation ;
2. Large power source ;
3. Heating power device;
4. Automobile electronic heating module ;
5. Motor control, communication equipment;
6. Power semiconductor, IS MOS tube IGBT chip;
7. High voltage, high temperature, high power welding machine etc.

Specifications:
Sheet, die-cutting, roll, with adhesive and without adhesive.
Basic size
0.23mm*300mm*50m
0.3mm*300mm*50m
0.45mm*300mm*50m other different thickness can be customized

According to customer requirements can be processed into sheets of different shapes, we also can undertake gum processing to meet the customer demand.
specifications:
Sheet, die-cutting, coil, with adhesive and without adhesive

Basic size
0.18mm*300mm*50m
Sheet can form different shapes according to the customer request processing, also can undertake gum processing to meet the customer demand.
