Insulation Acid Resistant Polyimide Tube for Heating Element

Insulation Acid Resistant Polyimide Tube for Heating Element
Price: US $ 0.1-5.69/Meter
Min Order: 2000/Meter
Pay Type: L/C,T/T,Paypal
Prod Model: SB-PFT
ID: 2.0~65.0mm
Od: 0.05~1.0mm
Length: 10~1000mm
Flammability: Slow to Self-Extinguishing
Application: Switch Baseplate
Type: Insulation Sleeve
Material: Polyimide
Thermal Rating: -60°c~+150°c
Maximum Voltage: 600V
Color: Clarity, Light Yellow, Haze , Stripe
Brand: Sunbow

Product Description

Insulation Acid Resistant Polyimide Tube For Heating Element

MODEL NO.: SB-PET-HST

Operating temperature:-60°C~+150°C



STRUCTURE

PET tubing is manufactured by twisted polyester film then adhesives by special glue.

The glue possesses similar chemical characteristics with polyester film.



USAGE

Main application range: insulation and mechanical protection for soldering, connection, wire harness, transformer, motor, cable, heating element, capacitor, telephone, electrical appliance etc.



PRODUCT CHARACTERISTICS

Dimension

Inside diameter 2.0-65(mm),Thickness 0.05-1 (mm), Length10-1000(mm)

Color

Clarity, light yellow, haze , stripe

Melting point

250°C-265°C

Service temperature

-70~150°C

Dielectric strength

2650V/MIL25°C60CYCLE       2125V/MIL150°C60CYCLE

Water absorption

75% max after 24 hr immersion

Corrosive on Copper

Negligible

Solubility in acid, oil, paint, industrial solvents tec.

Undissolved

Antibacterial, anti corrosive

Excellent

Tenacity

Excellent

Cuticle intensity

400g/cm2 (MIN)

Resistance pressure

50HZ 2500V/min Not perforative

Visual

Smooth, No fleck & Eye winker

Style

Polyester

Heat shrink polyester

Slow shrink polyester

Not flammable polyester

Shrinkage (Diameter)

≤2

32%

8-12%

≤2%

Shrinkage (Length)

≤2

35%

8-12%

≤2%

Flammability

Slow to self-extinguishing

Burning resistance

Resistance characteristics

Resistance to abrasion, acids, immersion, mildew, industrial solvent, mechanical destroy, Freon and special liquids

Xylene extraction

<2%

Environment protection

No hurtful to human and environment

 Note: Besides above dimension, we can manufacture other dimension upon request.

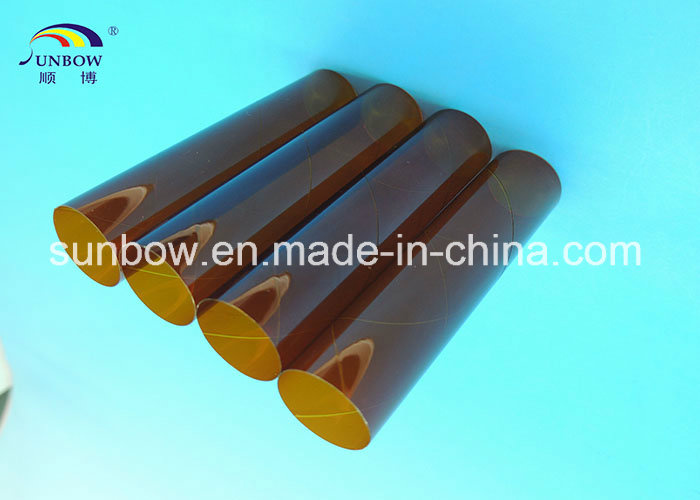

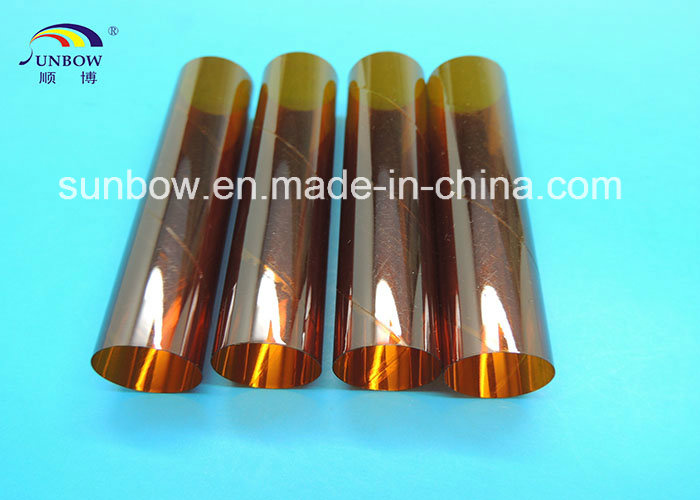

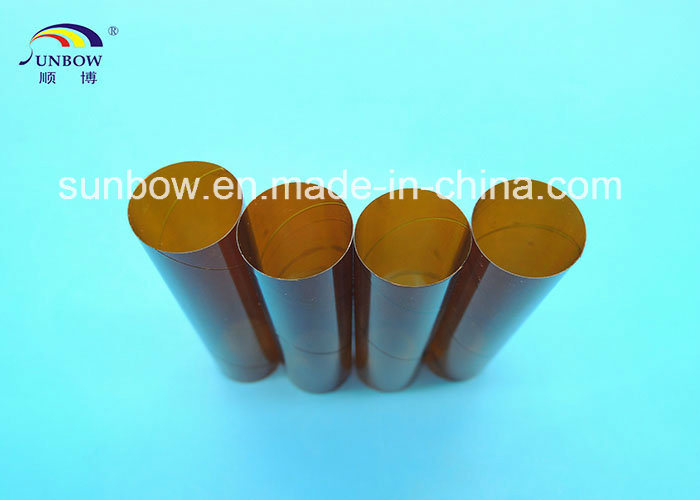

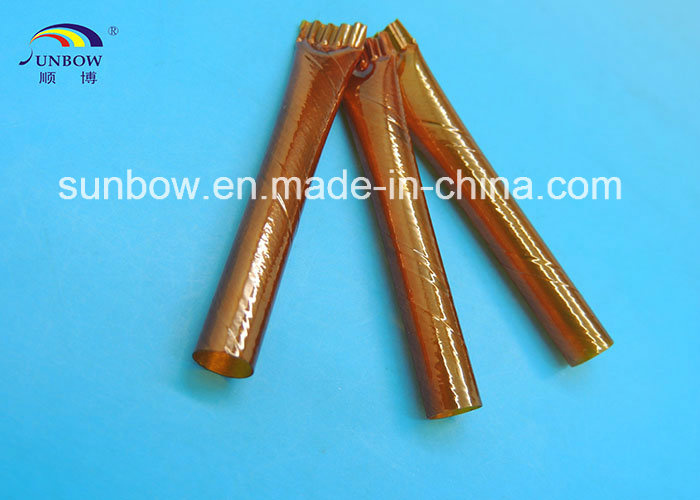

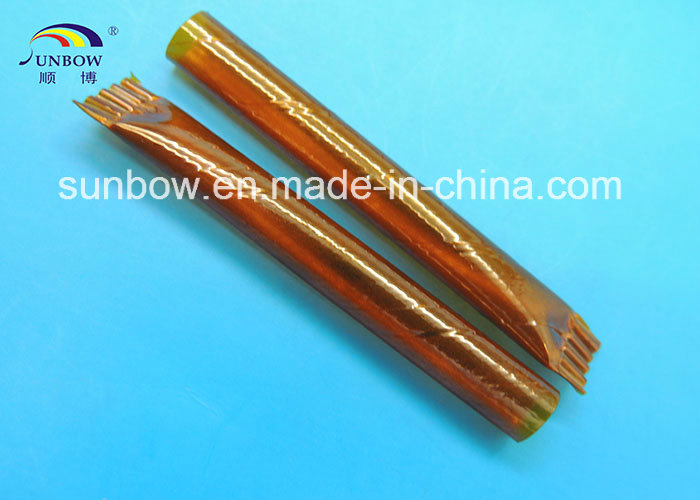

PHOTO:
