| Prod Model: |
A12O3 ceramic |
| Name: |
Ceramic |
| Component Content: |
96% |
| Specific Gravity: |
>=3.6 g/cm3 |
| Bending Strength: |
6.2-8.5 MPa |
| Temperature Resistance: |
1600 Oc |
| Sintering Temp: |
1650-1680 Oc |
| Hardness: |
2400 Hra |
| Power: |
<10kv |
| Emitting Color: |
White |
| Voltage: |
<10kv |
| Chemistry: |
Organic Insulation |
| Certification: |
RoHS, UL, SGS |
| Application: |
Electronic Products |
Product Description
Product Description96% Al2O3 Ceramic Substrate For Electronic Parts
Feature:
1.High hardness
2.Extremely abrasive resistance performance
3.Light weight
4.Wide scope of application
Alumina ceramic is Al2O3 as main raw material, in the rare metal oxide as flux, special ceramic piece after one thousand degrees high temperature roasting into.
Al2O3 ceramic alumina content is high, the structure is relatively compact, with special properties, it is known as the special ceramics. The Al2O3. ceramic materials are densely arranged six party structure for oxygen ion and aluminum ion, filled in 2/3 with eight sides in the gap, which is the same with natural corundum stable alpha Al2O3 structure, so the ceramics with high melting point, high hardness, good wear - resistance.
| PROPERTIES TABLE |
| Test Item/Unit | Numerical Value | Test Item/Unit | Numerical Value |
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia |
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance cm | >1012 | >1012 | >1012 |
| Sintering Temp ºC | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient *10° | 6.8-8 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm | 15 | 15 | 15 | Roughness μm | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate % | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700 | 2400 | 5000 | Thermal Conductivity W/m-k | 25 | 20 | 2.5 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ºC | 1700 | 1600 | 1800 |
Performance
Physical properties: high insulation resistance, breakdown, high temperature resistance, abrasion resistance, high strength (three meters altitude fall not broken)
Fire rating: USA military standard MIL-F-51058 (the highest level)
Typical application: strong current, voltage, strong high temperature parts, IC MOS, IGBT power tube heat pipe insulation
Certification: natural organic matter, the European Union, exempt products without certification materials
Thermal conductivity: high temperature: 1600 degrees below the ideal heat insulating material of high voltage and high frequency equipment
Application:
Alumina ceramic is mainly used in large power equipment, IC MOS tube, IGBT chip heat conducting insulation, high frequency power supply, communication, mechanical equipment, strong current, high voltage, high temperature and other thermal heat insulation parts need products.
Physical properties: high thermal conductivity, high voltage insulation resistance, high temperature resistant, abrasion resistant, high strength
Certification:
Product specifications:
Regular size and models :

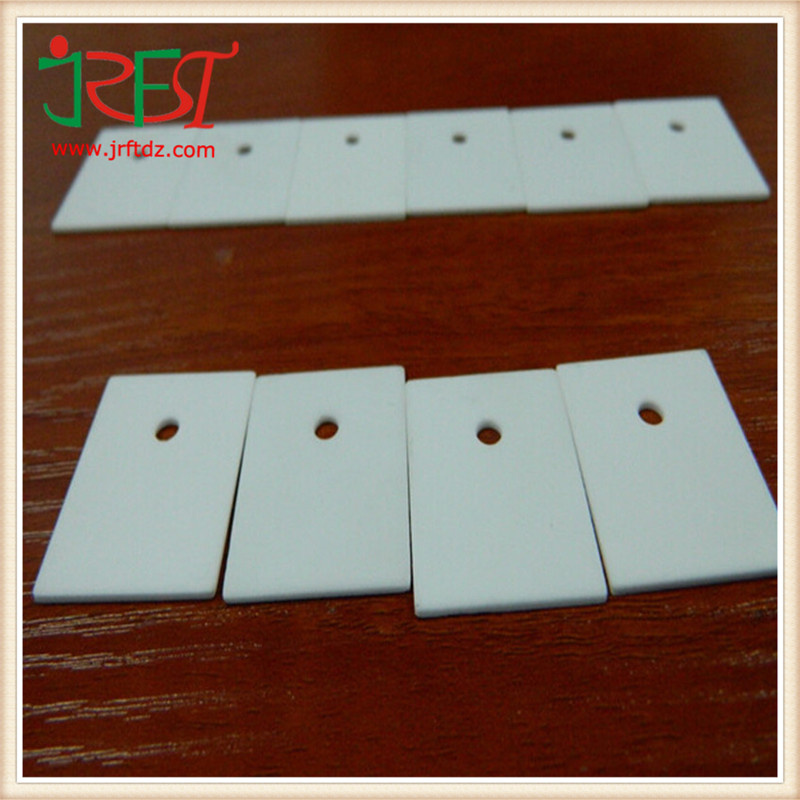

The TO-220, 1mm*13mm*19mm

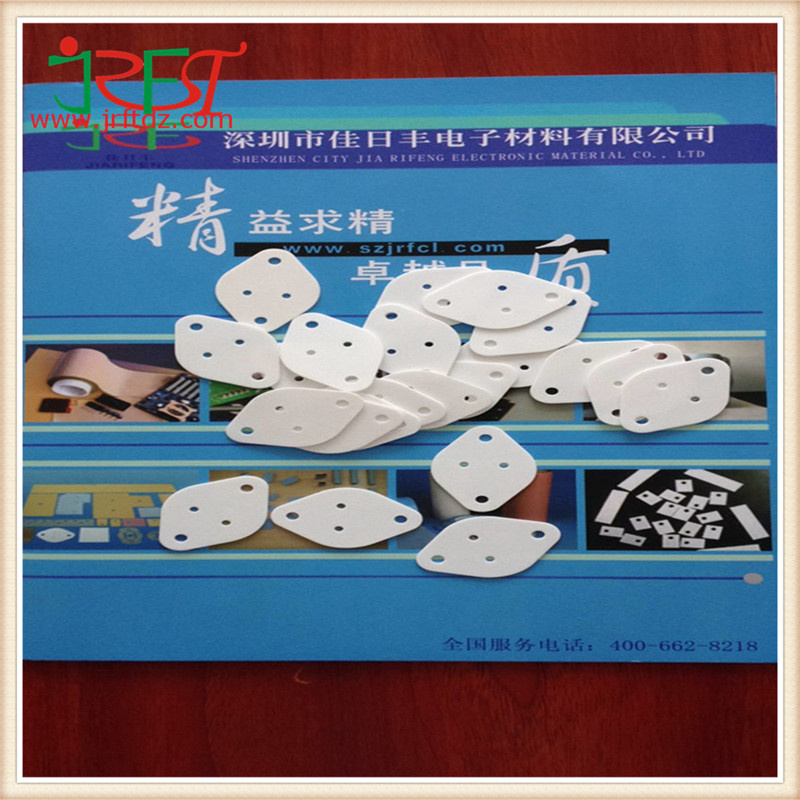

The TO-3 P, 1mm*20mm*25mm
The TO-264, 1mm*22mm*28mm
The T0-247, 0.635mm*17mm*22mm
Other non-standard products can provide drawings of custom processing
