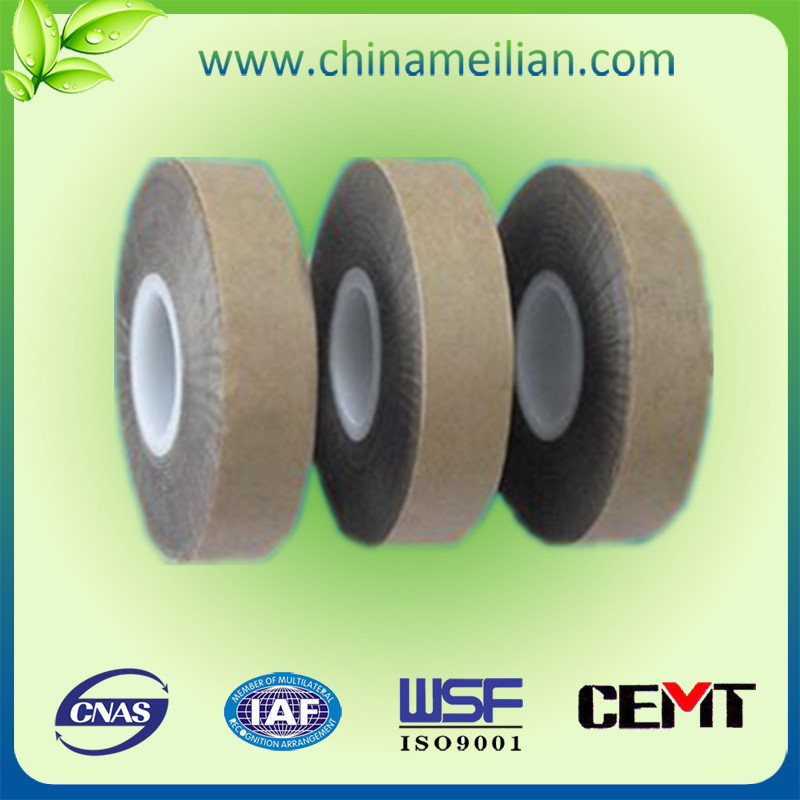

Insulation Epoxy Polyester Tape for Cable Mica Tape

Name: Insulation Epoxy Polyester Tape for Cable Mica Tape
Brand: all-electronics-online.com
SKU: 743115025
Availability: InStock
Rating: 4.7 (148 reviews)

Price:	US $ 9.6-12.5kg
Trade Terms:	FOB,CFR,CIF
Min Order:	100kg
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-5450
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Customized
Formation Methods:	High Temperature and High Pressure
Samples:	Free Samples Available
Appliction:	Motor & Generator
Delivery:	7-10 Working Days
Customizable:	Yes
MOQ:	1 Piece
Application:	Generator
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Maximum Voltage:	>100KV
Type:	Mica Tape
Thermal Rating:	Grade C
Brand:	Mj

Product Description

All Products Show

Feature:epoxy mica tape
Good dielectrical and mechanical property
Good heat resistance
Room temperature the material is flexible
Less thickness tolerance
Application:epoxy mica tape
Room temperature the material is flexible, when it surround the coil and is formed, it will have good electrical and mechanical properties
Suitable for high pressure motor coil insulation and turn insulation, fireproof cable can be used for wraping

Technical Parameters:

Basic information
Product name	5450 Epoxide Glass Mica Tape
Item No.	MJ-5450
Brand	MJ
Material	Fiber Mica with epoxy resin
Grade	Grade C
Appearance	Adhesive evenly distributed, no impurities, no spinning, off paper, adhesion, delamination and die loosening
Bandwidth	15/20/25/30/35 mm
Nominal thickness	0.14±0.02 mm 0.17±0.03 mm
Mica content	≥ 37%
Volatile content	≤ 2%
Adhesives content	20-40%
Breakdown strength (Normal)	≥ 16 MV/m
Tensile strength	≥ 80 N/10mm
Softness	Consulting
Reference Standard	GB/T1303.1-1998
Packaging and Storage
Each package is not more than 100KG with paper and plastic film cover plate into a inner carton, steel strapped or wooden carton outside Each package should be marked with item number, specification and type Stored in ventilated,dry and clean warehouse.

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
