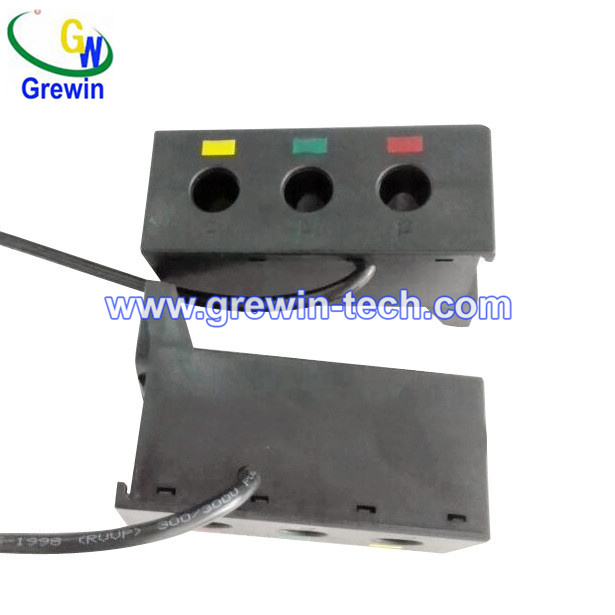

Insulation Instrument Current Transformer-Three Phase (GWTA79)

Name: Insulation Instrument Current Transformer-Three Phase (GWTA79)
Brand: all-electronics-online.com
SKU: 676796102
Availability: InStock
Rating: 4.4 (147 reviews)

Price:	US $ 1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWTA79 SERIE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Current Transformer
Shell Material:	PBT or ABS
Accuracy Class:	Class 0.1,0.2
Power Rating:	0.6va
Working Frequency Bound:	20Hz~20kHz
Design Advantage:	Flexible Current Transformer
Application:	Lighting
Type:	Current Transformer
Phase:	Three

Product Description

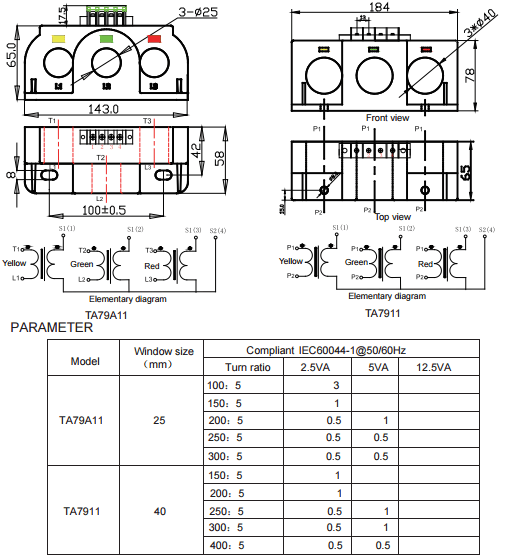

The GW TA79 series of 600V instruction three phase current transformers are designed for in the room. Two different window openings along with numerous secondary ratios are availableto meet most applications. This short form catalog shows an overview of our production.Contact factory for different sizes or style.

Features
      Low cost
      Water proof

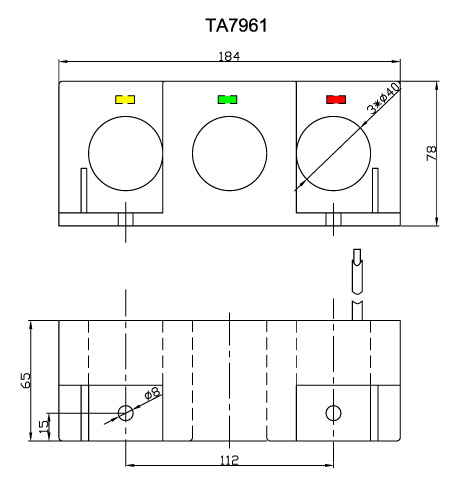

      2 outline size
      5.0,1.0,0.2&0.1Aac secondary ratios available
Applications
      Current,Power,Energy monitoring devices
      Relay protection device
Specifications
      Shell material:ABS
      Frequency:50-400 Hz
      Operating Temperature:-25 to +55ºC,-40 to
         +85ºC optional
      Operating Voltage:600Vac
      Isolation:600V,BIL 10KV Full Wave
      Accuracy class:compliantIy EC60044-1
      RoHS compliant

CONTACT INFO:

Victor Dong

Tianjin Grewin Technology Co.,Ltd.
Web: http://grewin-tech.en.made-in-china.com or www.grewin-tech.com
TEL:86-22-84943756
FAX:86-22-85909471

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
