Insulation Material 3025 Phenolic Cotton Cloth Laminated Sheet/Pressboard

Name: Insulation Material 3025 Phenolic Cotton Cloth Laminated Sheet/Pressboard
Brand: all-electronics-online.com
SKU: 703907422
Availability: InStock
Rating: 4.8 (49 reviews)

Price:	US $ 2.2kg
Trade Terms:	FOB,CFR,CIF
Min Order:	1000kg
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3025 sheet
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.5mm-120mm
Size:	1mx2m
Heat-Resistance:	E Class 120
Storage Life:	1 Year
Delivery Time:	20days
Application:	Insulating Varnish
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Thermal Rating:	E 120
Maximum Voltage:	<10KV
Material:	Phenolic
Brand:	Chr

Product Description

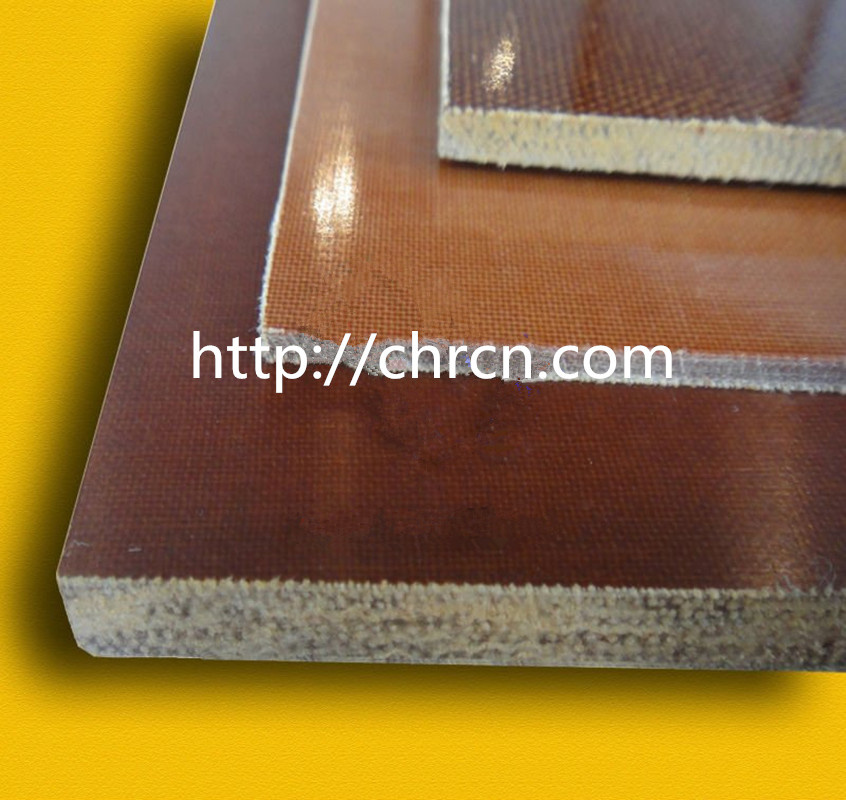

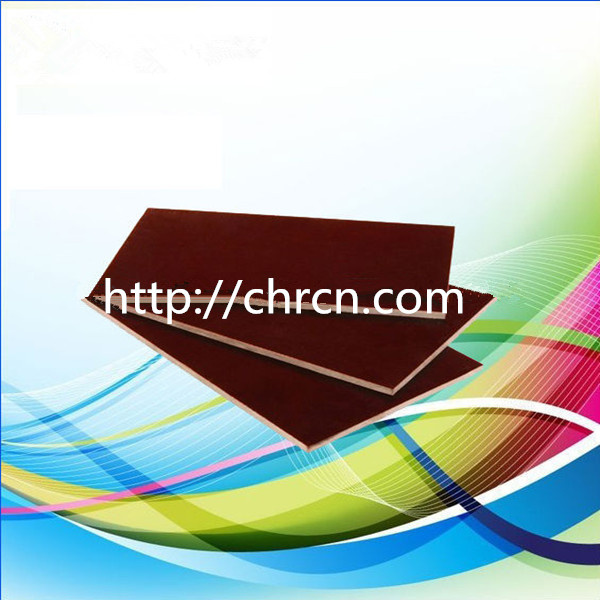

1.Description of t3025 phenolic cotton cloth laminated sheet
Phenolic cotton cloth laminated sheet/ 3025 Phenolic Cotton Fabric Laminate Sheet is a kind of insulation sheet, made of coarse cotton cloth impregnated phenolic resin by processing under heat and pressure. This product is widely used for low voltage applications ,for machines & appliances having higher voltages but lower electrical stress (slot wedges ,spacers) as material for bearing , gears , rollers & other constructional components , drilling jigs , underwater bearings , telecommunication & high frequency technique property ,oil resistance and dielectric property, as electrical materials with low electric property
2.The specification:
Heat-resistance: E Class 120
Thickness: 0.5mm-120mm
Size: 1020X2070MM 1MX2M 980X1980MM
Package: Pallet or upon the customer's request
Storage life: 1 year
3.Technical of textolite

Properties		Unit	Grade
			3025
Flexural strength perpendicularto laminations	≥	MPa	100
Compression strength perpendicular To laminations	≥	MPa	245
Bonding strength	≥	N	5400
Dielectric StrengthPerpendicular to Laminations(in 90±2°C transformer oil,1mm in thickness)	≥	KV/mm	0.82
Breakdown voltage parallelto laminations(in 90±2°CTransformer oil)	≥	kV	1
Permittivity(1MHz)	≤	-	5.5
Dissipation factor(1MHz)	≤	-	0.04
Insulation Resistance afterimpregnated in water	≥	Ω	1.0×106
Density		g/cm3	1.45-1.5
Water absorption(1mm in thickness)		mg	206
Color		-	Brown
Tensile strength	≥	MPa	98
Impact strength	≥	KJ/m2	8.8
Temperature index(short time).	≥	-	120

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

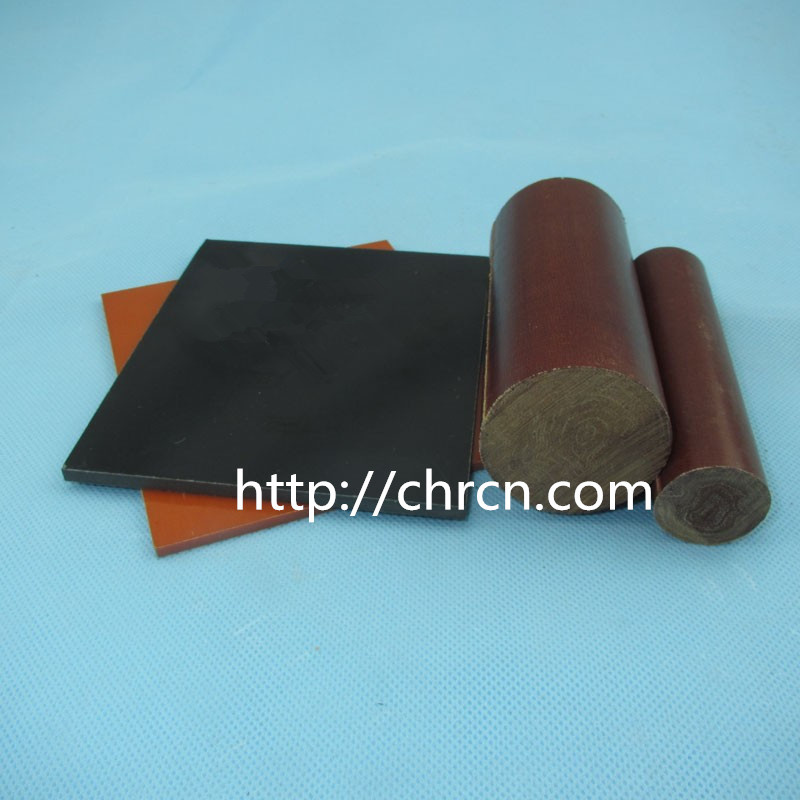

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
