Insulation Material DDP (kraft paper)

Name: Insulation Material DDP (kraft paper)
Brand: all-electronics-online.com
SKU: 811878985
Availability: InStock
Rating: 5 (140 reviews)

Price:	US $ 2.60-2.9516
Min Order:	50016
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DDP-kraft paper
Application:	Transformer\Capacitor\Reactor
Type:	Insulation Paper
Chemistry:	Inorganic Insulation
Material:	Paper
Thermal Rating:	B 130
Maximum Voltage:	<10KV
Brand:	Yuxiang\Yohann

Product Description

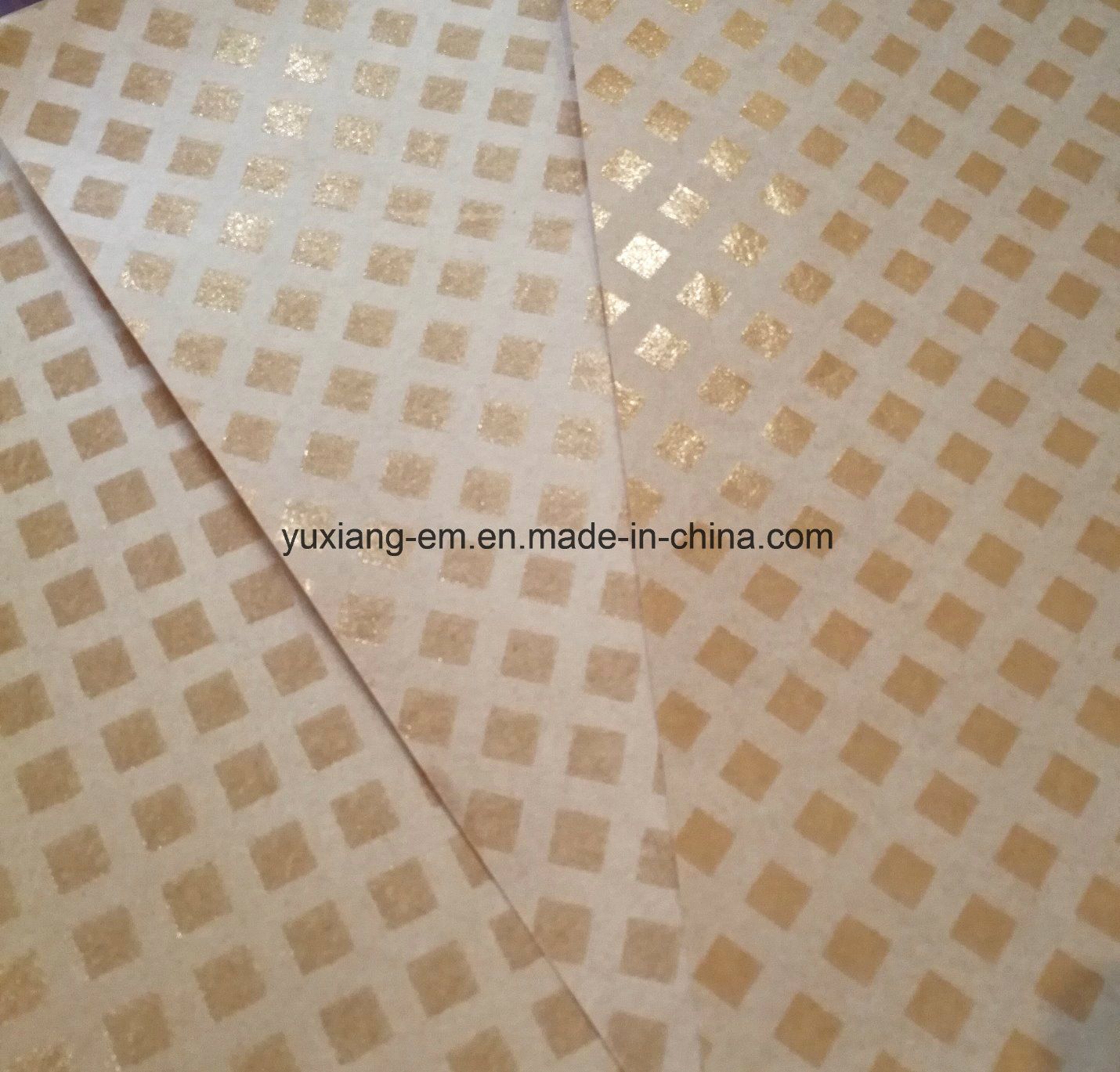

Description: DDP is produced by coating modified epoxy-resin in diamond-dotted patterns on electrical insulating paper.
Advantages: In the process of coil desiccation, the coated epoxy-resin would be melted in a certain temperature and become adhesive. With the temperature increased, the melted resin would cure to C-stage, and firmly adhere each adjoining layer of the coil, thus forming a winding section. If a short circuit occurs in the coil, the resin bond strength would sufficiently prevent the displacement of each winding layer, which ensures the long-term mechanical and physical properties of the insulation structure. As the resin coating distributes in a diamond-dotted pattern, little quantity of the resin would soak into the insulating paper during the melting and curing process, which ensures the elimination of air content in the insulating paper and guarantees the soakage of oil, minimizing the damages of corona and partial discharge.
Applications: It is suitable for turn-to-turn insulation of coil wires on oil-immersed power transformers and suitable for layer insulation of coils on distribution transformers.

ITEM

Property

Unit

Index

Thickness and Tolerance

0.08
±0.005

0.13
±0.007

0.18±0.01

0.20±0.01

0.25
±0.01

0.30
±0.01

0.35
±0.02

0.38
±0.02

0.45±
0.02

0.50±
0.03

Density

g/cm³

0.85~1.10

One Side Coating

µm

6~12

10~15

Moisture Content

4.0~8.0

Ash Content

≤1.0

Water Extraction of Electrical Conductivity

mS/m

≤10

PH Water Extract

6.5~8.5

Oil Absorption

≥20

Bond
Strength

Normalcy

Kpa

≥650

100ºC±2

≥400

Tensile Strength

N/10mm

110

160

180

230

≥250

100

≥120

BDV

0.88

1.37

2.00

2.10

2.25

≥2.50

2.Curing conduction stock
2.1 Curing: 90ºC±2 ºC/3h firstly , then130ºC±5ºC/6h, or according customer needs
2.2 Storage: ≤30ºC, dry, clean in warehouse. Avoid fire, heat and sunlight.
2.3 Storage life: 6 months. Still effective if qualified in retest after 6 months.
