Ningbo Nide Mechanical Equipment Co., Ltd. >> Insulation Paper Polyester Mylar Film

Insulation Paper Polyester Mylar Film

Insulation Paper Polyester Mylar Film
Price: US $ 3-4KG
Trade Terms: FOB,CIF,CIP
Min Order: 100KG
Pay Type: L/C,T/T
Prod Model: NDPJ-JYZ-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: a Wide Range
Composition: Polyester Fiber Paper and Polyester Film
Layer Number: Three
Thermal Class: :F
Competitive Advantages: a Wide Range
Certificate: CCC
Application: Insulating Varnish
Type: Insulation Paper
Chemistry: Hybrid Insulation
Thermal Rating: F 155
Color: Blue
Brand: Nide

Product Description

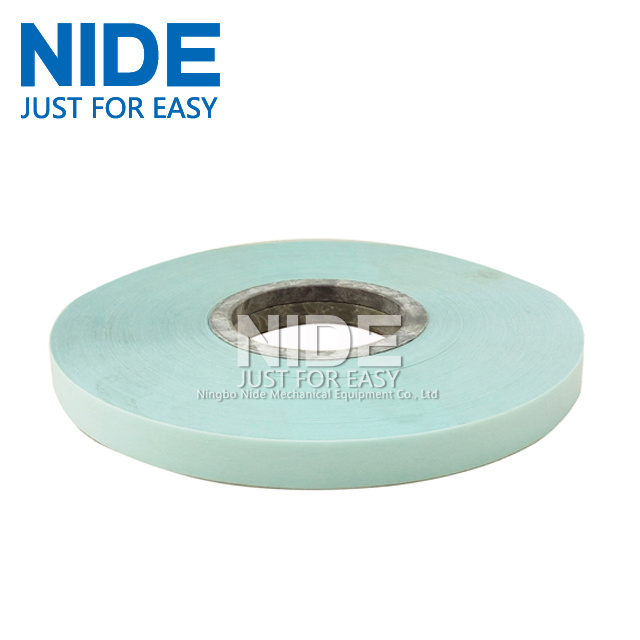

Insualtion paper DMD
DMD is made of two layers of polyester fiber paper with one of polyester film. It is a three-layer combined material. It shows excellent mechanical and electrical properties and good heat resistance.
Thermal class: F
Application: it is widely used in slot, phase and liner insulating of motor, transformer and so on.
We could supply DMD in three forms, such as DMD roll, DMD pieces, DMD tape.

Item
Thickness0.13~0.47mm
Width5mm~1000mm
Working temperature180 degree
ColorLight blue
Thermal classClass F
FunctionMotor insulation

Competitive advantages
1.We directly supply our insulation materials to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
2. Our insulation material has a wide application, such as automotive industry, household appliances, power tools and etc.
3. We have a wide range of insulation material.
4. We could customize insulation material for our customer.

Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)
2. Insulation material dimension: width, thickness, tolerance.
3. Insulation material thermal class: Class F, Class E, Class B, Class H
4. Insulation material applications
5. Required quantity: normally its weight
6. Other technical requirement.
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers. Nide has three main business divisions. The first division is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line. The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc. The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Nide has following affiliated companies

Ningbo Nide Mechanical Equipment Co., Ltd

Jiangsu Nide Automation Tech Co., Ltd

Jiangsu Xiandian Mechanical Co., Ltd

Ningbo Haishu Nide International Co., Ltd

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 40 countries such as Germany, U. K, Spain, Italy, Turkey, Brazil, Argentina, Mexico, Iran, India, Vietnam, etc. Among the customers, many of them are the world-renown companies.

In the international market, Nide is the leading motor manufacturing machines supplier from China.

Nide--Just for easy, our objective is not only to make motor manufacturing easier, but also strike for making life easier.
