Insulation Polyolefin Heat Shrink End Cap for Cable
| Price: |
US $ 0.01-0.99/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
SB-WRSFM |
| Shrink Ratio: |
2:1 |
| Shrink Temperature: |
110-130ºC |
| Size: |
11-250mm |
| Minimum Fully Recovered Temperature: |
130ºC |
| Application: |
Cable Accessories, Mechanical Protection |
| Type: |
Insulation Sleeve |
| Chemistry: |
Organic Insulation |
| Material: |
Rubber |
| Maximum Voltage: |
35kv |
| Color: |
Black |
| Certification: |
Rohas, Reach |
| Brand: |
Sunbow |
| Thermal Rating: |
125 ºC |
Product Description

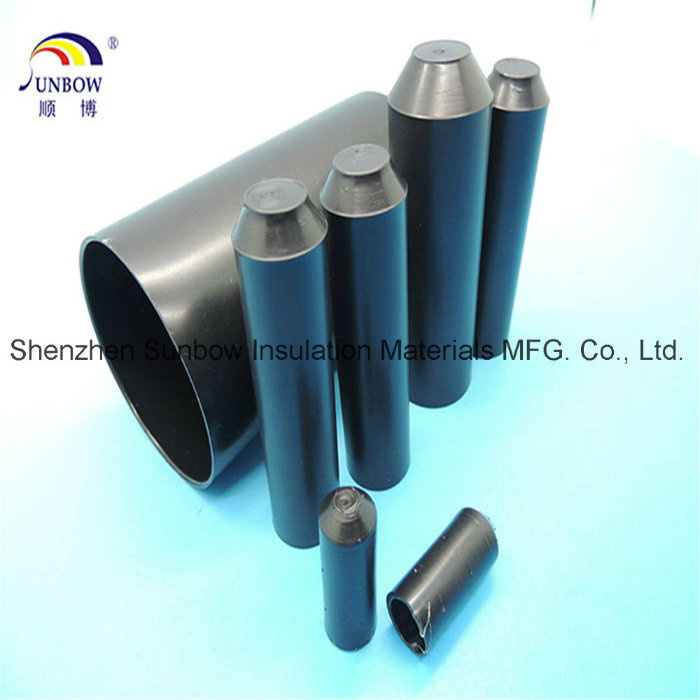

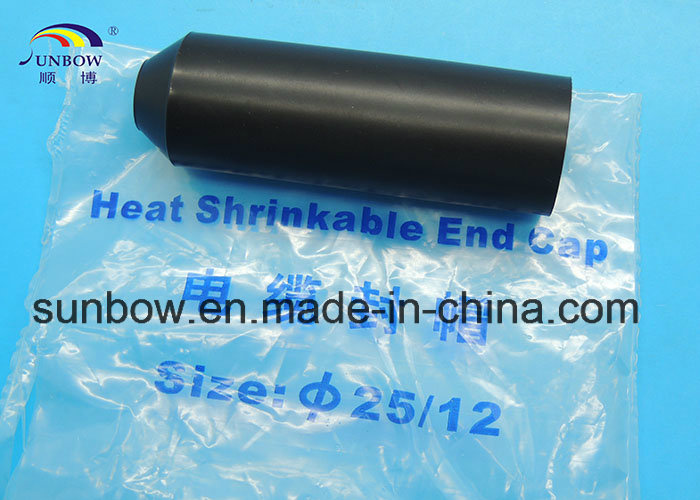

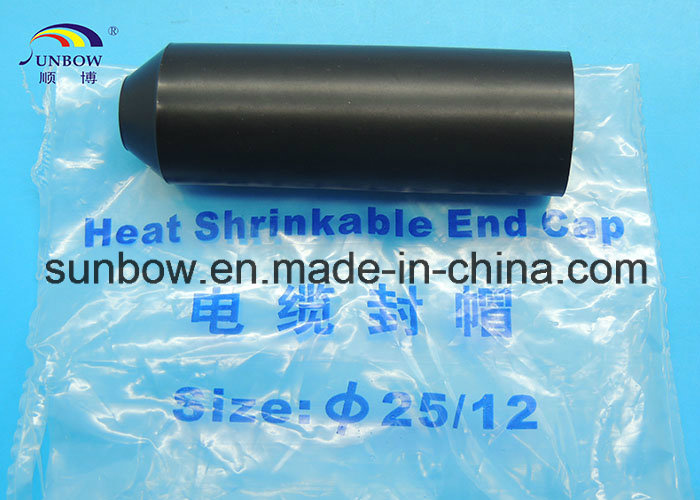

Insulation Polyolefin Heat Shrink End Cap for CableModel Number: SB-WRSFMHeat shrink end caps are a simple yet effective method for sealing cable ends, pipe, conduit or other similar objects.CHRACTERISTICS2:1 shrink ratio
Superior resistance to weathering
Resistant to common fluids
Standard adhesive liner provides coated hot melt adhesive resists continuous operating temperature
Shrink temperature: start at 110ºC, and fully recovered at 130ºC DIMENSION| Size | Size After Recovery(mm) | Size As Supplied (mm) | Cable Sizes(mm) |
| Inner Diameter | Wall Thickness | Inner Diameter | Wall Thickness | Length | Outer Diameter |
| Φ 11 | ≤6.5 | 1.1±0.1 | ≥11 | 0.7±0.2 | ≥22 | Φ6-9 |
| Φ 16 | ≤8.0 | 2.5±0.1 | ≥16 | 1.2±0.2 | ≥70 | Φ9-14 |
| Φ 20 | ≤8.0 | 2.5±0.1 | ≥20 | 1.2±0.2 | ≥70 | Φ9-17 |
| Φ 25 | ≤11 | 2.5±0.1 | ≥25 | 1.2±0.2 | ≥80 | Φ12-22 |
| Φ 32 | ≤17 | 2.6±0.1 | ≥32 | 1.5±0.2 | ≥90 | Φ17-27 |
| Φ 40 | ≤15 | 2.8±0.1 | ≥40 | 1.5±0.2 | ≥90 | Φ20-35 |
| Φ 55 | ≤25 | 2.8±0.1 | ≥55 | 1.5±0.2 | ≥125 | Φ28-45 |
| Φ 75 | ≤30 | 3.2±0.1 | ≥75 | 1.8±0.2 | ≥145 | Φ40-65 |
| Φ 100 | ≤42 | 3.5±0.1 | ≥100 | 1.8±0.2 | ≥140 | Φ50-90 |
| Φ 120 | ≤59 | 3.5±0.1 | ≥120 | 1.8±0.2 | ≥155 | Φ70-110 |
| Φ 140 | ≤63 | 4.0±0.1 | ≥140 | 2.0±0.2 | ≥180 | Φ90-130 |
| Φ 250 | ≤94 | 4.0±0.1 | ≥250 | 2.0±0.2 | ≥270 | Φ120-240 |
TECHNICAL DATA | Property | Test Method | Standard Value |
| Operating Temperature | IEC 216 | -45ºC to+105ºC |
| Tensile Strength | ASTM-D 2671 | ≥13MPa |
| Elongation At Break | ASTM-D 2671 | ≥300% |
| Tensile Strength After Aging | ASTM-D-2671/120ºC,168hrs | ≥10MPa |
| Elongation At Break After Aging | ASTM-D-2671/120ºC,168hrs | ≥240% |
| Dielectric Strength | IEC 243 | ≥15kV/mm |
| Volume Resistance | ASTM-D-2303 | ≥1×1013.cm |
| Dielectric Constant | IEC 250 | 3.0 |
| Radial Shrinkage | - | ≥50% |
| Eccentricity | ASTM-D-2671 | ≤35% |
| Low Temperature Flexibility | ASTM-D-2671 | -40ºC, 4hrs, No Cracking |
| Minimum Shrink Temperature | - | 90ºC |
Minimum Fully Recovered
Temperature | - | 130ºC |
DIMENSION | Size | Size After Recovery(mm) | Size As Supplied (mm) | Cable Sizes(mm) |
| Inner Diameter | Wall Thickness | Inner Diameter | Wall Thickness | Length | Outer Diameter |
| Φ 11 | ≤6.5 | 1.1±0.1 | ≥11 | 0.7±0.2 | ≥22 | Φ6-9 |
| Φ 16 | ≤8.0 | 2.5±0.1 | ≥16 | 1.2±0.2 | ≥70 | Φ9-14 |
| Φ 20 | ≤8.0 | 2.5±0.1 | ≥20 | 1.2±0.2 | ≥70 | Φ9-17 |
| Φ 25 | ≤11 | 2.5±0.1 | ≥25 | 1.2±0.2 | ≥80 | Φ12-22 |
| Φ 32 | ≤17 | 2.6±0.1 | ≥32 | 1.5±0.2 | ≥90 | Φ17-27 |
| Φ 40 | ≤15 | 2.8±0.1 | ≥40 | 1.5±0.2 | ≥90 | Φ20-35 |
| Φ 55 | ≤25 | 2.8±0.1 | ≥55 | 1.5±0.2 | ≥125 | Φ28-45 |
| Φ 75 | ≤30 | 3.2±0.1 | ≥75 | 1.8±0.2 | ≥145 | Φ40-65 |
| Φ 100 | ≤42 | 3.5±0.1 | ≥100 | 1.8±0.2 | ≥140 | Φ50-90 |
| Φ 120 | ≤59 | 3.5±0.1 | ≥120 | 1.8±0.2 | ≥155 | Φ70-110 |
| Φ 140 | ≤63 | 4.0±0.1 | ≥140 | 2.0±0.2 | ≥180 | Φ90-130 |
| Φ 250 | ≤94 | 4.0±0.1 | ≥250 | 2.0±0.2 | ≥270 | Φ120-240 |
TECHNICAL DATA | Property | Test Method | Standard Value |
| Operating Temperature | IEC 216 | -45ºC to+105ºC |
| Tensile Strength | ASTM-D 2671 | ≥13MPa |
| Elongation At Break | ASTM-D 2671 | ≥300% |
| Tensile Strength After Aging | ASTM-D-2671/120ºC,168hrs | ≥10MPa |
| Elongation At Break After Aging | ASTM-D-2671/120ºC,168hrs | ≥240% |
| Dielectric Strength | IEC 243 | ≥15kV/mm |
| Volume Resistance | ASTM-D-2303 | ≥1×1013.cm |
| Dielectric Constant | IEC 250 | 3.0 |
| Radial Shrinkage | - | ≥50% |
| Eccentricity | ASTM-D-2671 | ≤35% |
| Low Temperature Flexibility | ASTM-D-2671 | -40ºC, 4hrs, No Cracking |
| Minimum Shrink Temperature | - | 90ºC |
Minimum Fully Recovered
Temperature | - | 130ºC |
