Insulation Synthetic Oil Varnish Cloth 2310

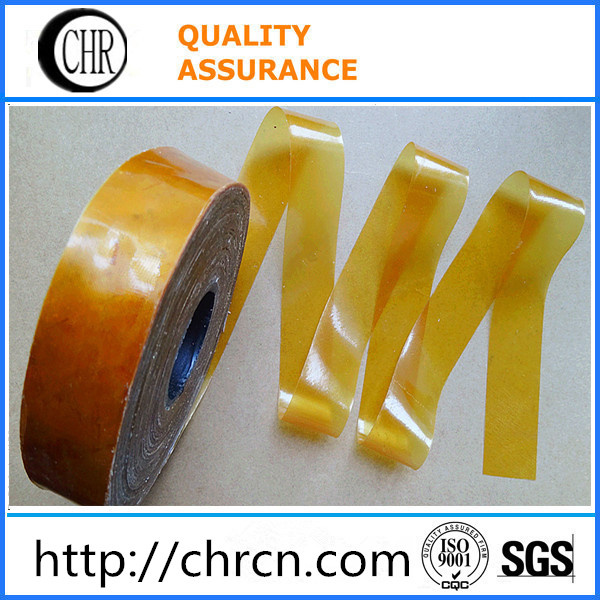

Name: Insulation Synthetic Oil Varnish Cloth 2310
Brand: all-electronics-online.com
SKU: 702959032
Availability: InStock
Rating: 5 (61 reviews)

Price:	US $ 9kg
Trade Terms:	FOB,CFR,CIF
Min Order:	200kg
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	2310
Markets:	North America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia
Thickness:	0.08mm 0.10mm 0.12mm 0.15mm
Width:	20mm 25mm 1000mm 1100mm
Heat-Resistance:	a Class 105
Storage Life:	1 Year
Delivery Time:	20days
Application:	Switch Baseplate
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	A 105
Maximum Voltage:	<10KV
Brand:	Chr

Product Description

2310 oil varnished synthetic fabric cloth

1 .Description:
2310 oil varnished synthetic fabric cloth is made from the silk ,insulating silk and then in the process of dipping in the oily paint and dyring.2310-Oil varnished synthetic fabric is Class A insulating varnished material.Oil varnished synthetic fabric has good electrical and mechanical performances ,it will be used at 105°or less for a long period

2.Specifications:
1).Thickness:0.08, 0.10, 0.12, 0.15, mm
2). has good electrical and mechanical performances
3). Thermal grade is class A.

3. Color: Brown

4. Application:
can be used as liner insulation and coil insulation for the binding and insulating materials for the electric motor,appliance.etc

Properties	Environmental		Units	values
Shrinkage	After treated at temperature of 105±2°C for 6h:		%	≤1
Volume resistivity	At the normality:		Ω.m	≥1.0*1011
	At 105±20c			≥1.0*108
	After being humidified for 24h:			≥1.0*108
Normal thickness			mm	0.08		0.1		0.12		0.15
Tolerance			mm	±0.01		±0.01		±0.015		±0.015
Tensile strength				Medium	Max	Medium	Max	Medium	Max	Medium	Max
	Shrinkage 6%	2210	N/10mm	2~10	11	2~12	14	3~12	14	3~14	17
	Shrinkage 6%	2212		2~10	12	3~12	14	3~14	15	3~15	18
				Medium	Min	Medium	Min	Medium	Min	Medium	Min
	warp-wise	2210		≥22	≥16	≥24	≥18	≥25	≥20	≥30	≥24
	across warp	2210		≥15	≥10	≥17	≥12	≥18	≥14	≥22	≥18
	45°	2210		≥15	≥10	≥17	≥12	≥17	≥12	≥17	≥12
Breakdown voltage			kv	Medium	Min	Medium	Min	Medium	Min	Medium	Min
	Under23±2OC	2210		4.8	2.4	5.8	3.1	7.2	4.8	8.7	5.2
	Under23±2OC	2212		5.4	2.8	7.0	4.0	9.1	6.2	9.8	6.5
	After bending Under23±2OC	2210		3.0	1.8	4.4	2.2	6.3	3.2	6.9	3.8
	After bending Under23±2OC	2212		3.2	2.1	5.2	3	6.9	3.8	7.7	4.2
	Under105±2OC	2210		3	1.8	4.3	2.2	5.2	2.5	5.8	3.1
	Under105±2OC	2212		3.3	1.9	4.8	2.6	5.5	3.4	7.4	3.7
	After bending Underheat treatment	2210		2.5	1.4	3.7	1.7	4.0	2.1	4.2	2.7
	After bending Underheat treatment	2212		2.5	1.5	4.2	2.3	5.4	2.6	5.8	3.2
	Sweat 24 hours after	2210		2.3	1.4	3.5	2	4.1	2.5	4.7	2.8
	Sweat 24 hours after	2212		3.2	1.6	4.2	2.1	4.7	2.6	5.5	3.0
	Shrinkage 6% Under 450	2210		2.7	-	4.1	2.1	5.0	2.5	6.1	3.1
	Shrinkage 6% Under 450	2212		2.7	-	4.1	2.1	5.0	2.5	6.1	3.1
The quality warranty period					Six months(under25OC)

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
