| Prod Model: |
Nitride Ceramic |
| Name: |
Nitride Ceramic |
| Thermal Conductivity: |
160-190 W/M.K |
| Hardness: |
2400 Hra |
| CNC: |
Sure |
| Customized: |
Sure |
| Aplication: |
Insulation |
| Application: |
Insulating Varnish |
| Type: |
Insulation Sheet |
| Chemistry: |
Inorganic Insulation |
| Thermal Rating: |
220 220 |
| Maximum Voltage: |
10KV~20KV |
| Material: |
Nitride |
| Certification: |
RoHS |
| Color: |
Grey and White |
| Brand: |
Jrft |
Product Description

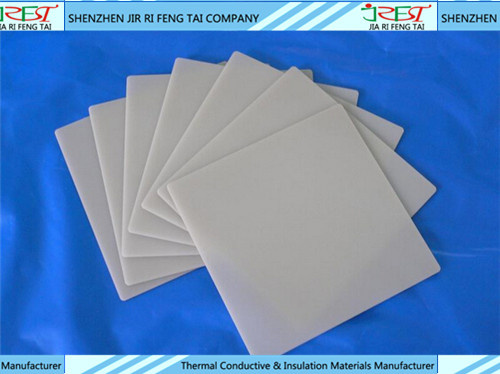

Insulator Ceramic Plate Aluminium Nitride Ceramic for Electronic Semiconductor Component
Product Description
Specifications
AlN ceramic plate
1.High thermal conductivity
2.High flexural strength, high temperature
2.Good electrical insulation
Aluminium Nitride AlN Ceramic Plate
AlN Ceramic Plate
Aluminium Nitride Substrate
INTRODUCTION
The aluminum nitride (AlN) ceramic has high thermal conductivity(5-10 times as the alumina ceramic), low dielectric constant and dissipation factor, good insulation and excellent mechanical properties, non-toxic, high thermal resistance, chemical resistance ,and the linear expansion coefficient is similar with Si,which is widely used in communication components, high power led, power electronic devices and other fields.Special spec products can be produced upon requests.
PRODUCT PERFORMANCE
High thermal conductivity, high flexural strength, high temperature
Good electrical insulation
Low dielectric constant and loss
MATERIAL PROPERTIES | Material Properties of Aluminum Nitride Substrate/Wafer |
| Property Content | Property Index |
| Density(g/cm3) | 3.335 |
| Resistance to Thermal Shock | No Cracks |
| Thermal conductivity(30°C, W/m.k) | ≥170 |
Linear expansion coefficient
(/°C, 5°C/min, 20-300°C) | 2.805×10-6 |
| Flexural strength (MPa) | 382.7 |
| Volume Resistivity (Ω.cm) | 1.4×1014 |
| Dielectric constant(1MHz) | 8.56 |
| Chemical Durability (mg/cm2) | 0.97 |
| Dielectric strength (KV/mm) | 18.45 |
| Surface roughness Ra(μm) | 0.3~0.5 |
| Camber (length‰) | ≤2‰ |
| Appearance/ Color | Dense/ Dark Gray |
As a professional company in advanced ceramic industries, HIGHBORN is supplying high quality and high precision ceramic components for clients from worldwide. Our ceramic products are widely used in various fields of automotive, metallurgy, machinery, electronic & electrical, food, chemical, medical and so on. With experienced engineers and talented workers, we are able to evaluate projects and drawings properly, make valuable suggestion, supply satisfying products. Our materials including: - Aluminium Oxide ( 95% 96% 99% 99.5% 99.7% Al2O3 )- Zirconium Oxide ( Yttria stabilized ZrO2 )- Silicon Nitride ( Gas pressure sintered & Hot pressed Si3N4 )- Silicon Carbide (Reactive sintered, Pressureless sintered & Recrystallization SiC)- Aluminum Nitride- Machinable Glass Ceramic Aiming at building long term cooperation relationship with our clients, we set our motto as "Quality First". Far now, our products have been exported to North Amirica, East Europe, West Europe, East Asia, Southeast Asia and get good reputation from our client.Payment TermT/TL/CD/AD/PAliExpressWestern UnionMoneyGramAccording to certain countries, our way of payment will be adjusted.
Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.
Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.
Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.
High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
