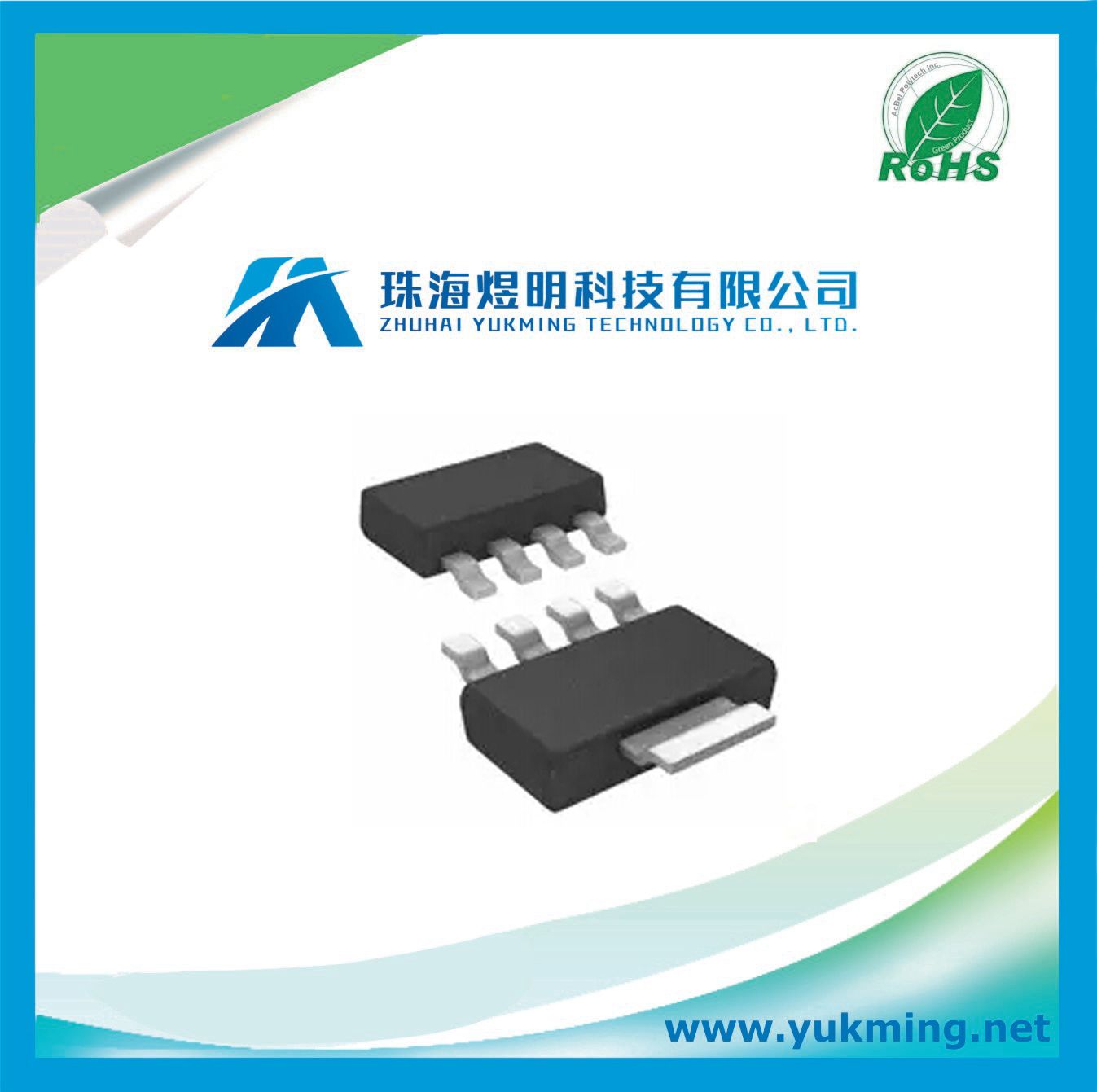

Integratd Circuit Lp38692MP-5.0 of Low Dropout Linear Regulator IC

Name: Integratd Circuit Lp38692MP-5.0 of Low Dropout Linear Regulator IC
Brand: all-electronics-online.com
SKU: 799599325
Availability: InStock
Rating: 4.3 (72 reviews)

Price:	US $ 0.3825/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP38692MP-5.0
Wide Input Voltage Range:	2.7 V to 10 V
2.5% Output Accuracy:	25
Low Dropout Voltage:	450 Mv at 1 a (Typical, 5 Vout)
Ensured Specifications For:	–40 to 125
Ground Pin Current:	55 µa (Typical) at Full Load
Precision Output Voltage:	2.5% (25c) Accuracy

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Description
The LP38690 and LP38692 low-dropout CMOS linear regulators provide tight output tolerance (2.5% typical), extremely low dropout voltage (450 mV at a 1-A load current, VOUT = 5 V), and excellent AC performance utilizing ultra low ESR ceramic output capacitors.
The low thermal resistance of the WSON, SOT-223, and TO-252 packages allow the full operating current to be used even in high ambient temperature environments.
The use of a PMOS power transistor means that no DC base drive current is required to bias it allowing ground pin current to remain below 100 µA regardless of load current, input voltage, or operating temperature.
For all available packages, see the orderable addendum at the end of the data sheet.

Features
Wide Input Voltage Range (2.7 V to 10 V)
2.5% Output Accuracy (25°C)
Low Dropout Voltage: 450 mV at 1 A
(typical, 5 VOUT)
Precision (Trimmed) Bandgap Reference
Ensured Specifications for -40°C to 125°C
1-µA Off-State Quiescent Current
Thermal Overload Protection
Foldback Current Limiting

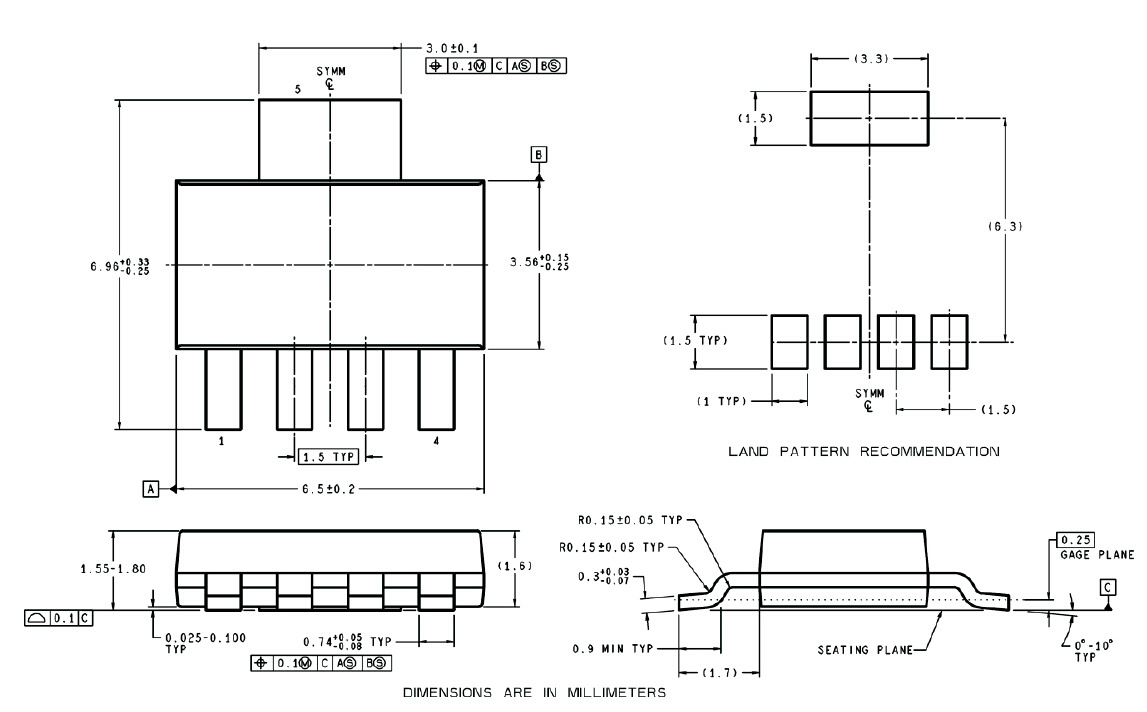

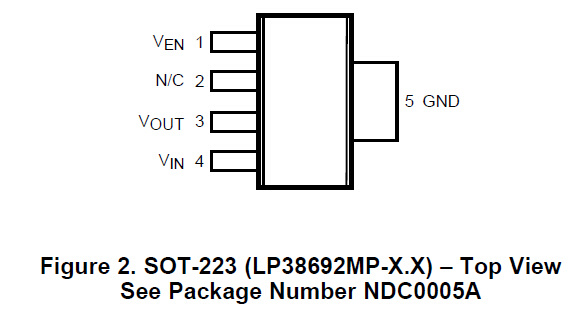

3-Lead TO-252, 5-Lead SOT-223, and 6-Bump WSON Packages
Enable Pin (LP38692)
Ground Pin Current: 55 µA (typical) at Full Load
Precision Output Voltage: 2.5% (25°C) Accuracy

Applications
Hard Disk Drives
Notebook Computers
Battery Powered Devices
Portable Instrumentation
