| Prod Model: |
Top Star Series 1-10Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature: |
0~40° C |
| Nominal Frequency: |
50/60Hz |
| Power Factor: |
0.98 |
| Thdi: |
< 3% |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

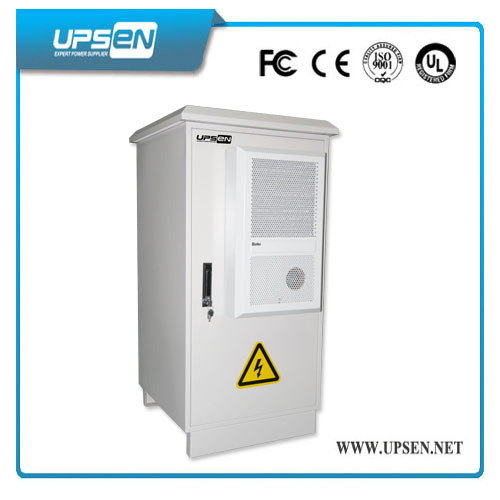

Integrated 110v 220v outdoor UPS with ISO/ CE/ RoHS approval
Model: Outdoor Online UPS Top Star Series 1K-100Kva (1ph in / 1ph out) (3ph in / 1ph out) (3ph in / 3ph out)
Outdoor UPS Quick View
1. Outdoor UPS with Single Phase 220Vac 230Vac 240Vac or Three Phase 380Vac 400Vac 415Vac Input and Output
2: Outdoor UPS with Pure Sine Wave Output and Double Conversion tech
3. Outdoor UPS Equiped Air Conditioned Cabinet to Put Batteries
4: Outdoor UPS with IP55 Protection Level
5. Outdoor UPS can be used in bed enviroment like high temperature (+50 ° C) / low temperature (-15 ° C), severe dust, moisture, rain, mist erosion situation
Key Features
1:IP55, with isolation inverter
2:humanization network management
3:super cold start function even at full load,DC start UPS when no gird power.
4:Providing with pure sinewave power for outdoor telecom and network equipment
5:with overload automatic recovery function
6:Optional: EPO / SNMP / Relais I/O Card / GPRS Card / Environmental Card / Input Isolation Transformer
7:UPSEN Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave 2:AC power supply for outside communications / network equipment.
Applications
UPSEN outdoor UPS is mainly used in the corner of the city, traffic light,remote roads, mountains, bad environment,etc.
Technical Specification
| Top Star Series |
Model | |
T1K |
T2K |
T3K |
T6K |
T10K |
Capacity |
Capacity |
1KVA/700W |
2KVA/1400W |
3KVA/2100W |
6KVA/4200W |
1000KVA/7000W |
Input |
Nominal voltage |
220/230/240VAC |
Nominal frequency |
50/60HZ |
Voltage Range |
115~295VAC(± 3VAC) |
176~297VAC(± 3VAC) |
Frequency Range |
50HZ(46~54HZ), 60H(56HZ~64HZ) |
Power Factor |
0.98 |
Output |
Voltage Precision |
220/230/240X (1± 2%)VAC |
Frequency Precision |
50/60HZ± 0.05Hz |
Power Factor |
0.7 |
THDI |
< 3% (Linear load) < 6% (Non-linear load) |
Overload Capability |
Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode. |
Crest Factor |
3:1 |
Transfer Time |
0ms(AC to DC ) |
Battery |
DC Voltage |
36VDC |
96VDC |
96VDC |
240VDC |
240VDC |
Charge Current |
4A/8A(optional) |
4.2A |
4.2A |
Internal Battery Capacity |
(38/65/80/100AH/120AH)optional |
Panel Display |
LED/LCD Digital Display |
Display input and output voltage, frequency, battery voltage, battery capacity, load percentage |
Communications |
Communicate Interface |
RS232, SNMP card(optional) |
Enviroment |
Temperature |
0~40° C |
Humidity |
0~95% Non-condensing |
Storage Temperature |
-25° C~55° C |
Altitude |
< 1500m |
Acoustic Noise ( within 1 meter) |
< 50dB |
Physical |
Weight(KG) |
85 |
125 |
125 |
150 |
155 |
Dimensions (LxWxH)mm |
900×640×900 |
900*640*1185 |
900*640*1185 |
940*940*1770 |
940*940*1770 |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
