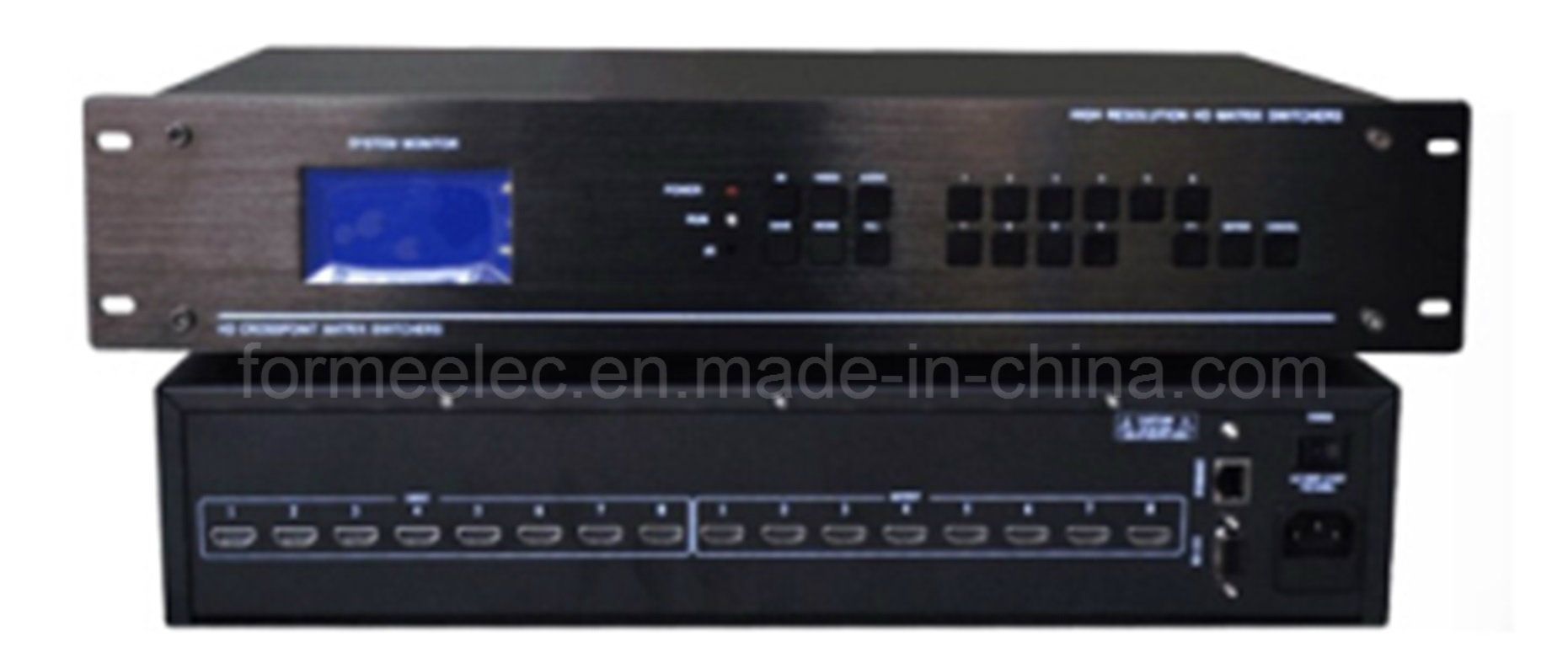

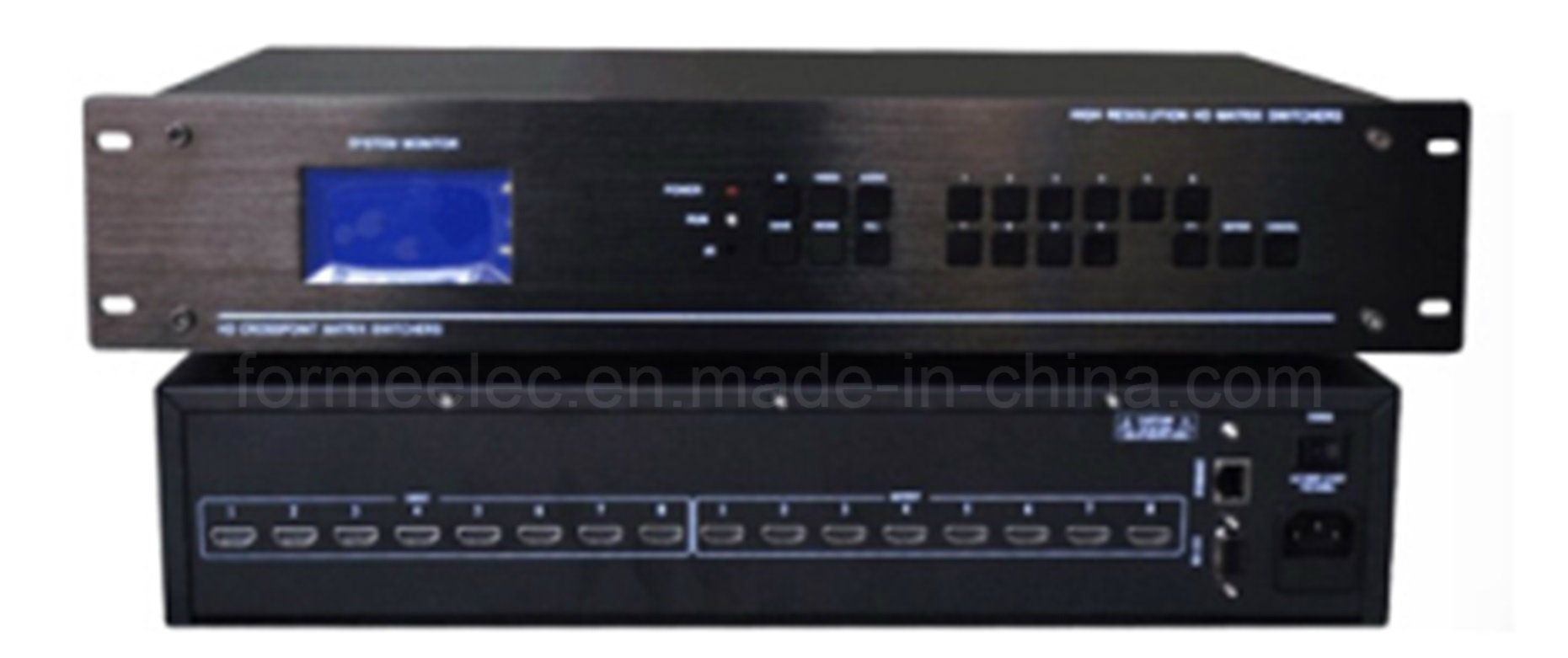

Product Description
1. integrated-type HD matrix with 4-way HDMI interface, a section that can support the project site replacement plug the input and output sections to facilitate the expansion of maintenance, flexible configuration of the number of input and output;
2. Support EDID read management data, support HDCP, support Blu-ray DVD and other matrix management
3. Input and output can support more than 40 meters HDMI line distance (no chip HDMI cable), HDMI input plate comes with digital equalization adjustment circuit, the output plate comes with signal pre-emphasis gain circuit;
4. Support RS-232 and central control (customer optional built-in control module), compatible with IOS and Andrews system flat panel or mobile phone APP wireless control operation to switch audio and video signals;
5. The use of international standard rack-mounted metal U chassis, high-grade aluminum drawing the front panel, supporting the operation of the control panel keys and high-grade Blu-ray LCD display;
6. The use of faster and more stable operation of the imported ARM processor control to ensure the effective operation of the matrix system;
7. HD matrix comes with power-off memory function, effectively protect the scene of the original screen state;
8. Matrix PCB board with all-chip SMT technology, carrier-class core digital switching chip, comes with ESD ESD protection and powerful anti-jamming function;
9. The use of point-to-point lossless transmission of digital signal to ensure that the high-fidelity image signal output;
10. The use of international standard wide voltage input power to ensure the stability of the matrix system and reliability;
11. Support 3D function, support 1080P input and output
HD HDMI Matrix switcher parameters
| Signal type | Full Digital T.M.D.S. Signals | interface | HDMI |
| Pixel bandwidth | 165MHz / 5.25Gbps / all digital | Maximum resolution | 1080P |
| Clock jitter | <0.15Tbit | Rise time | <0.3Tbit |
| Maximum transmission delay | 5 nS | Fall time | <0.3Tbit |
| Switch speed | 200 nS (maximum time) | Number of plates | 4 road |
| Control the serial port | RS-232/9 pin / male / D interface | Baud rate | 9600 |
| Data bits | 8 bits | Stop bit | 1 without parity |
| Ethernet control interface (optional) | RJ-45 female interface, TCP / IP Server or UDP mode,
Adaptive 10M or 100M / full duplex |
| Gain | 0 dB | impedance | 50 Ω |
| Signal strength | T.M.D.S. +/- 0.4Vpp | Minimum / maximum level | T.M.D.S. 2.9V/3.3V |
| Maximum DC offset error | 15 mV | power supply | 100-250V / 50-60 Hz |
| Serial control port structure | 2=TX,3=RX,5=GND | Minimum / maximum power | 30-100 W |
| Operating temperature | -20ºC-+70ºC | Use humidity | 10-90% |
| Standard rack chassis | 3U | Mean time to failure | 40000 h |
| 4-way HDMI input board | model: HD04-IN | Max Power | 12 W |
| | Pixel bandwidth | 165MHz full- digital |
| Interface bandwidth | 5.25Gbps full-digital |
| Bit clock jitter | <0.15 Tbit |
| Bit | <0.3Tbit(20%--80%) | Bit down time | <0.3Tbit (20%--80%) |
| Maximum | 5 nS | impedance | 50 Ω |
| Signal | T.M.D.S. +/- 0.4Vpp | Minimum / maximum level | T.M.D.S. 2.9V/3.3V |
1. Each card supports 4 HDMI input, using HDMI interface audio and video simultaneous interpretation
2. Compatible with HDMI1.4 standard, HDCP1.3 protocol and DVD-1.0 protocol, support Blu-ray DVI
3. The use of high-quality immersion gold circuit board
4. The use of German imports Erni high-speed professional connector and motherboard connection
5. Maximum support image resolution 1920x1200P down compatible
6. Automatic EDID management, without human management
7. Point-to-point hardware uncompressed real-time transmission switch
8. With input and output preload, seamless switching faster
9. Transmission distance> 20 meters
10. Plug and play, no drivers and software |
| 4-way HDMI output board | model:HD04-OUT | Max Power | 12 W |
| | Pixel bandwidth | 165MHz full-digital |
| Interface bandwidth | 5.25Gbps full-digital |
| Bit clock jitter | <0.15 Tbit |
| Bit rise time | <0.3Tbit(20%--80%) | Bit down time | <0.3Tbit (20%--80%) |
| Maximum transmission delay | 5 nS | impedance | 50 Ω |
| Signal strength | T.M.D.S. +/- 0.4Vpp | Minimum / maximum level | T.M.D.S. 2.9V/3.3V |
1. Each card supports 4 HDMI output, using HDMI interface audio and video simultaneous interpretation
2. Compatible with HDMI1.4 standard, HDCP1.3 protocol and DVD-1.0 protocol, support Blu-ray DVI
3. The use of high-quality immersion gold circuit board
4. The use of German imports Erni high-speed professional connector and motherboard connection
5. Maximum support image resolution 1920x1200P down compatible
6. Automatic EDID management, without human management
7. Point-to-point hardware uncompressed real-time transmission switch
8. With input and output preload, seamless switching faster
9. Transmission distance> 20 meters
10. Plug and play, no drivers and software1. |
