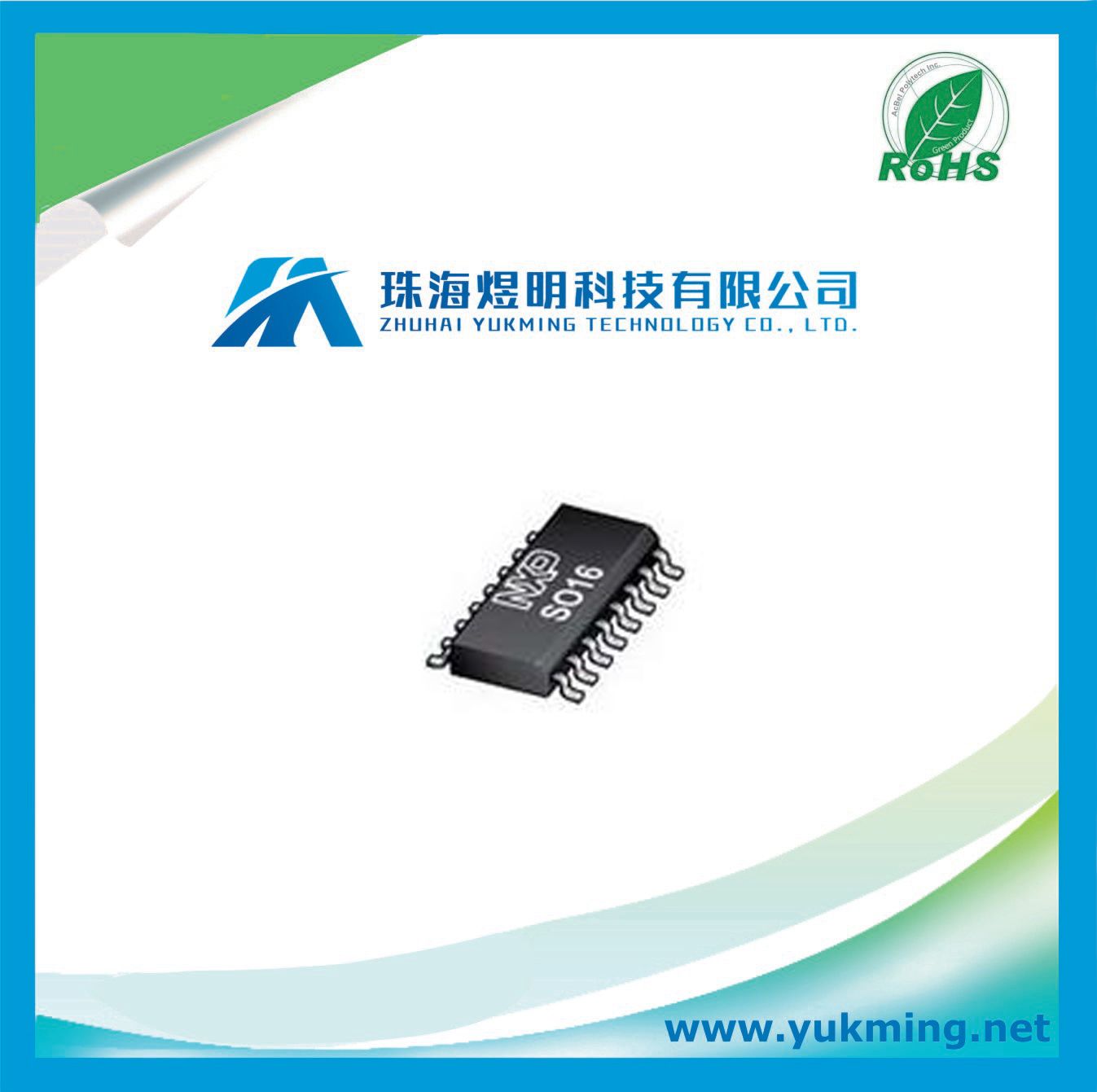

Integrated Circuit 74hc595D of Parallel-out Shift Register IC

Prod Model:	74HC595D

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

8-bit serial-in/serial or parallel-out shift register with output latches; 3-state

FEATURES
•8-bit serial input
•8-bit serial or parallel output
•Storage register with 3-state outputs
•Shift register with direct clear
•100 MHz (typ) shift out frequency
•Output capability:- parallel outputs; bus driver- serial output; standard
•ICCcategory: MSI.APPLICATIONS
•Serial-to-parallel data conversion
•Remote control holding register.

DESCRIPTION
74HC/HCT595The 74HC/HCT595 are high-speed Si-gate CMOS devicesand are pin compatible with low power Schottky TTL(LSTTL). They are specified in compliance with JEDECstandard no. 7A.The "595" is an 8-stage serial shift register with a storageregister and 3-state outputs. The shift register and storageregister have separate clocks.Data is shifted on the positive-going transitions of theSHCPinput. The data in each register is transferred to thestorage register on a positive-going transition of the STCPinput. If both clocks are connected together, the shiftregister will always be one clock pulse ahead of thestorage register.The shift register has a serial input (DS) and a serialstandard output (Q7') for cascading. It is also provided withasynchronous reset (active LOW) for all 8 shift registerstages. The storage register has 8 parallel 3-state busdriver outputs. Data in the storage register appears at theoutput whenever the output enable input (OE) is LOW.
