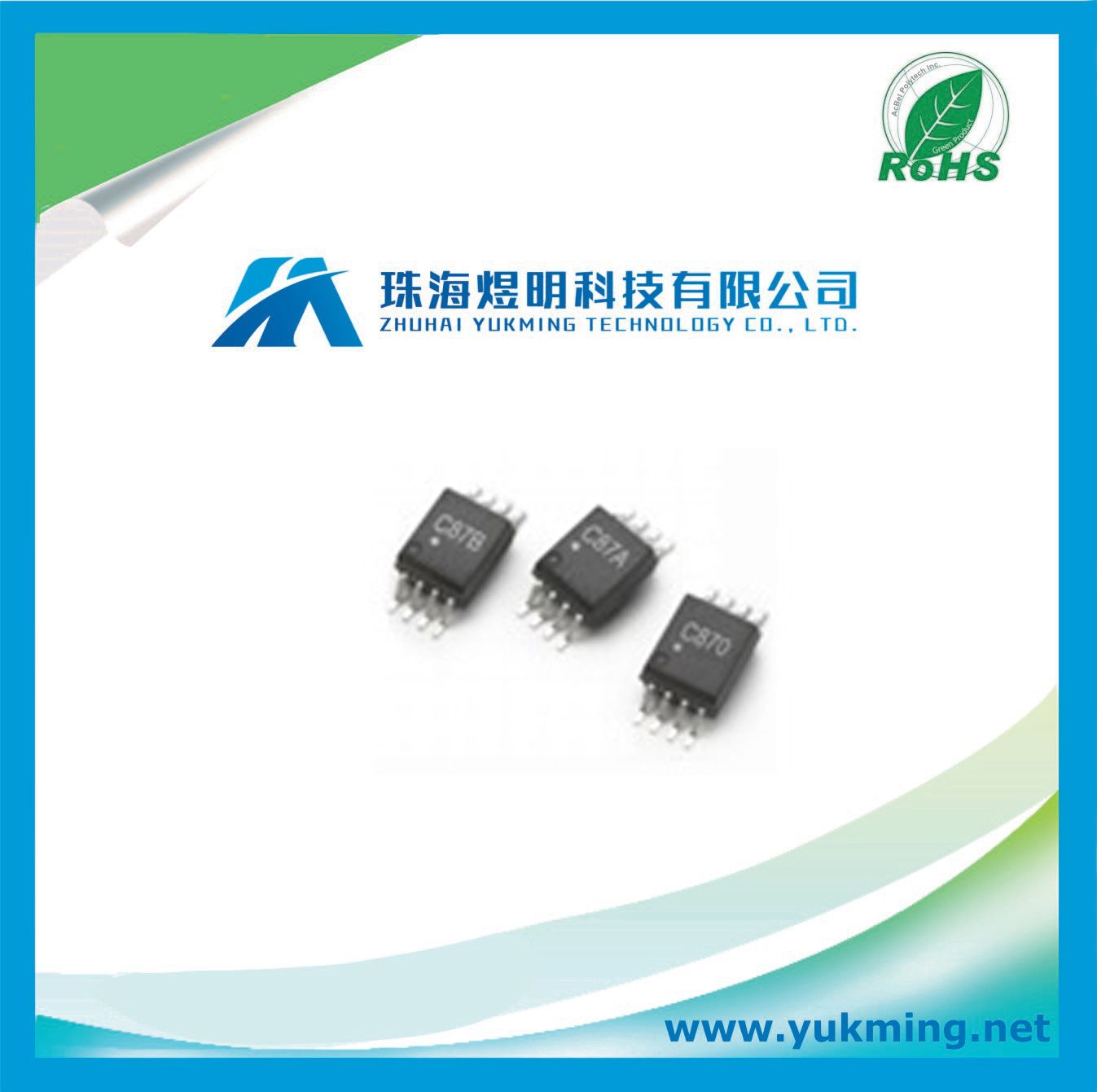

Integrated Circuit Acpl-C87A-500e of Optical Isolation Amplifier IC

Name: Integrated Circuit Acpl-C87A-500e of Optical Isolation Amplifier IC
Brand: all-electronics-online.com
SKU: 799218135
Availability: InStock
Rating: 4.8 (105 reviews)

Price:	US $ 9.1532/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ACPL-C87A-500E

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Description

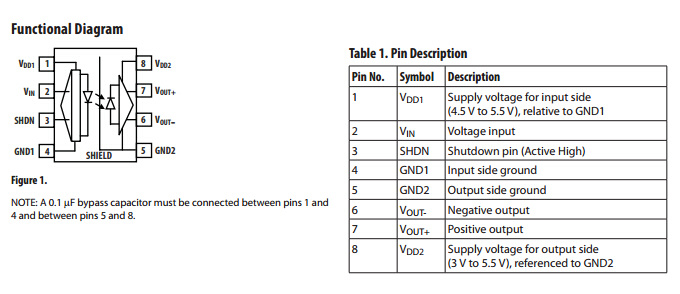

The ACPL-C87B/C87A/C870 voltage sensors are optical
isolation amplifi ers designed specifi cally for voltage
sensing. Its 2 V input range and high 1 GW input impedance,
makes it well suited for isolated voltage sensing
requirements in electronic power converters applications
including motor drives and renewable energy systems.
In a typical voltage sensing implementation, a resistive
voltage divider is used to scale the DC-link voltage to suit
the input range of the voltage sensor. A diff erential output
voltage that is proportional to the input voltage is created
on the other side of the optical isolation barrier.
For general applications, the ACPL-C87A (±1% gain
tolerance) and the ACPL-C870 (±3% gain tolerance)
are recommended. For high precision requirements,
the ACPL-C87B (±0.5% gain tolerance) can be used. The
ACPL-C87B/C87A/C870 family operates from a single 5 V
supply and provides excellent linearity. An active-high
shutdown pin is available which reduces the IDD1 current
to only 15 mA, making them suitable for battery-powered
and other power-sensitive applications.
The high common-mode transient immunity (15 kV/μs)
of the ACPL-C87B/C87A/C870 provides the precision and
stability needed to accurately monitor DC-link voltage in
high noise environments. Combined with superior optical
coupling technology, the ACPL-C87B/C87A/C870 implements
sigma-delta (∑-△) modulation, chopper stabilized
amplifi ers, and diff erential outputs to provide unequaled
isolation-mode noise rejection, low off set, high gain
accuracy and stability. This performance is delivered in a

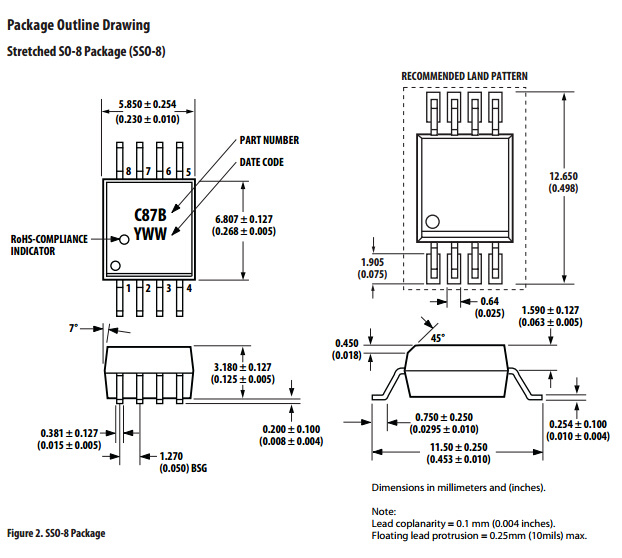

compact, auto-insertable Stretched SO-8 (SSO-8) package
that meets worldwide regulatory safety standards.

Features
· Advanced Sigma-Delta (∑-△) Modulation Technology
· Unity Gain 1 V/V, ±0.5% High Gain Accuracy (ACPL-C87B)
· 1 GW Input Impedence
· 0 to 2 V Nominal Input Range
· -35 ppm/°C Low Gain Drift
· 21mV /°C Off set Voltage Drift
· 0.1% Non-Linearity Max
· Active-High Shutdown Pin
· 100 kHz Wide Bandwidth
· 3 V to 5.5 V Wide Supply Range for Output Side
· -40° C to +105° C Operating Temperature Range
· 15 kV/ms Common-Mode Transient Immunity
· Compact, Auto-Insertable Stretched SO-8 Package
· Safety and Regulatory Approvals (pending):
       - IEC/EN/DIN EN 60747-5-5: 1230 Vpeak working
       insulation voltage
       - UL 1577: 5000 Vrms/1 min double protection rating
       - CSA: Component Acceptance Notice #5

Applications
· Isolated Voltage Sensing in AC and Servo Motor Drives
· Isolated DC-Bus Voltage Sensing in Solar Inverters,
Wind Turbine Inverters
· Isolated Sensor Interfaces
· Signal Isolation in Data Acquisition Systems
· General Purpose Voltage Isolation
