Integrated Circuit ADP3303arz-5 of Linear Voltage Regulators IC

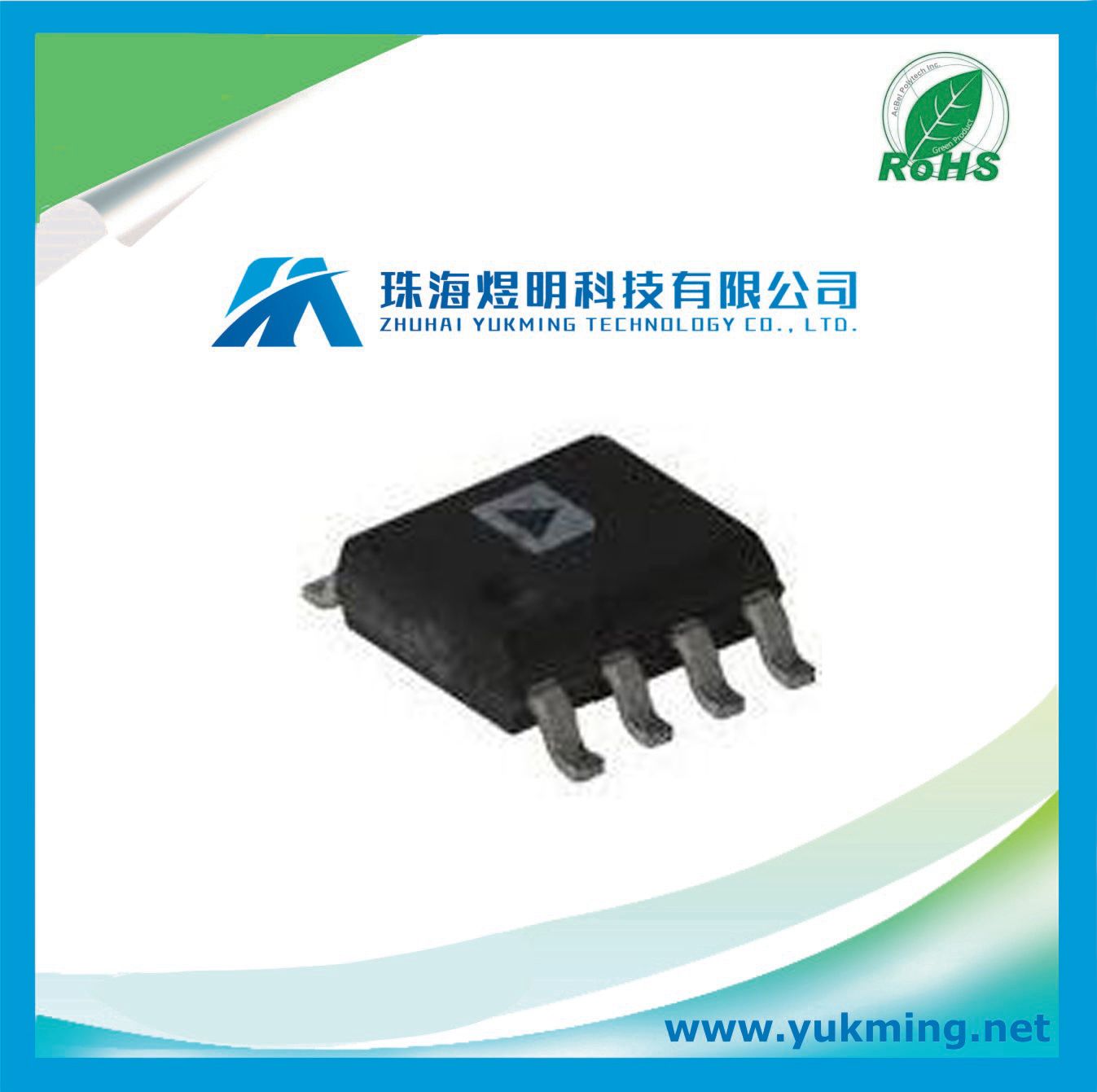

Name: Integrated Circuit ADP3303arz-5 of Linear Voltage Regulators IC
Brand: all-electronics-online.com
SKU: 799589405
Availability: InStock
Rating: 5 (124 reviews)

Price:	US $ 3.0175/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ADP3303ARZ-5
Voltage - Output:	5V
Output:	200mA
Voltage - Dropout (Typical):	0.18V @ 200mA
Number Of Regulators:	1
Voltage - Input:	up to 12V
Operating Temperature:	-25 ~ 125

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Category Integrated Circuits (ICs)
Family PMIC - Voltage Regulators - Linear
Manufacturer Analog Devices Inc.
Series anyCAP®
Packaging Tube
Part Status Active
Regulator Topology Positive Fixed
Voltage - Output 5V
Current - Output 200mA
Voltage - Dropout (Typical) 0.18V @ 200mA
Number of Regulators 1
Voltage - Input Up to 12V
Operating Temperature -25°C ~ 125°C
Mounting Type Surface Mount

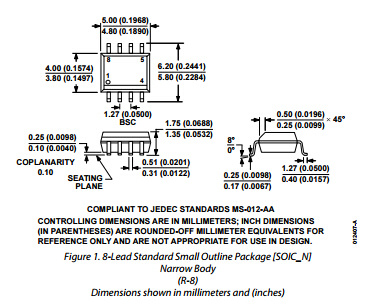

Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC

FEATURES
High Accuracy Over Line and Load 60.8% @ at +258C,
61.4% Over Temperature
Ultralow Dropout Voltage: 180 mV (Typ) @ 200 mA
Requires Only CO = 0.47 mF for Stability
anyCAP = Stable with All Types of Capacitors
(Including MLCC)
3.2 V to 12 V Supply Range
Current and Thermal Limiting
Low Noise
Dropout Detector
Low Shutdown Current: < 1 mA
Thermally Enhanced SO-8 Package
Excellent Line and Load Regulation Performance

APPLICATIONS
Cellular Telephones
Notebook, Palmtop Computers
Battery Powered Systems
Portable Instruments
Post Regulator for Switching Supplies
Bar Code Scanners

GENERAL DESCRIPTION
The ADP3303 is a member of the ADP330x family of precision
low dropout anyCAP voltage regulators. The ADP3303
stands out from the conventional LDOs with a novel architecture,
an enhanced process and a new package. Its patented
design requires only a 0.47 µF output capacitor for stability.
This device is insensitive to capacitor Equivalent Series Resistance
(ESR) and is stable with any good quality capacitor, including
ceramic types (MLCC) for space restricted applications.
The ADP3303 achieves exceptional accuracy of ±0.8% at room
temperature and ±1.4% overall accuracy over temperature, line
and load regulations. The dropout voltage of the ADP3303 is
only 180 mV (typical) at 200 mA.
In addition to the new architecture and process, ADI's new
proprietary thermally enhanced package (Thermal Coastline)
can handle 1 W of power dissipation without external heatsink
or large copper surface on the PC board. This keeps PC board
real estate to a minimum and makes the ADP3303 very attractive
for use in portable equipment.
The ADP3303 operates with a wide input voltage range from
3.2 V to 12 V and delivers a load current in excess of 200 mA.
