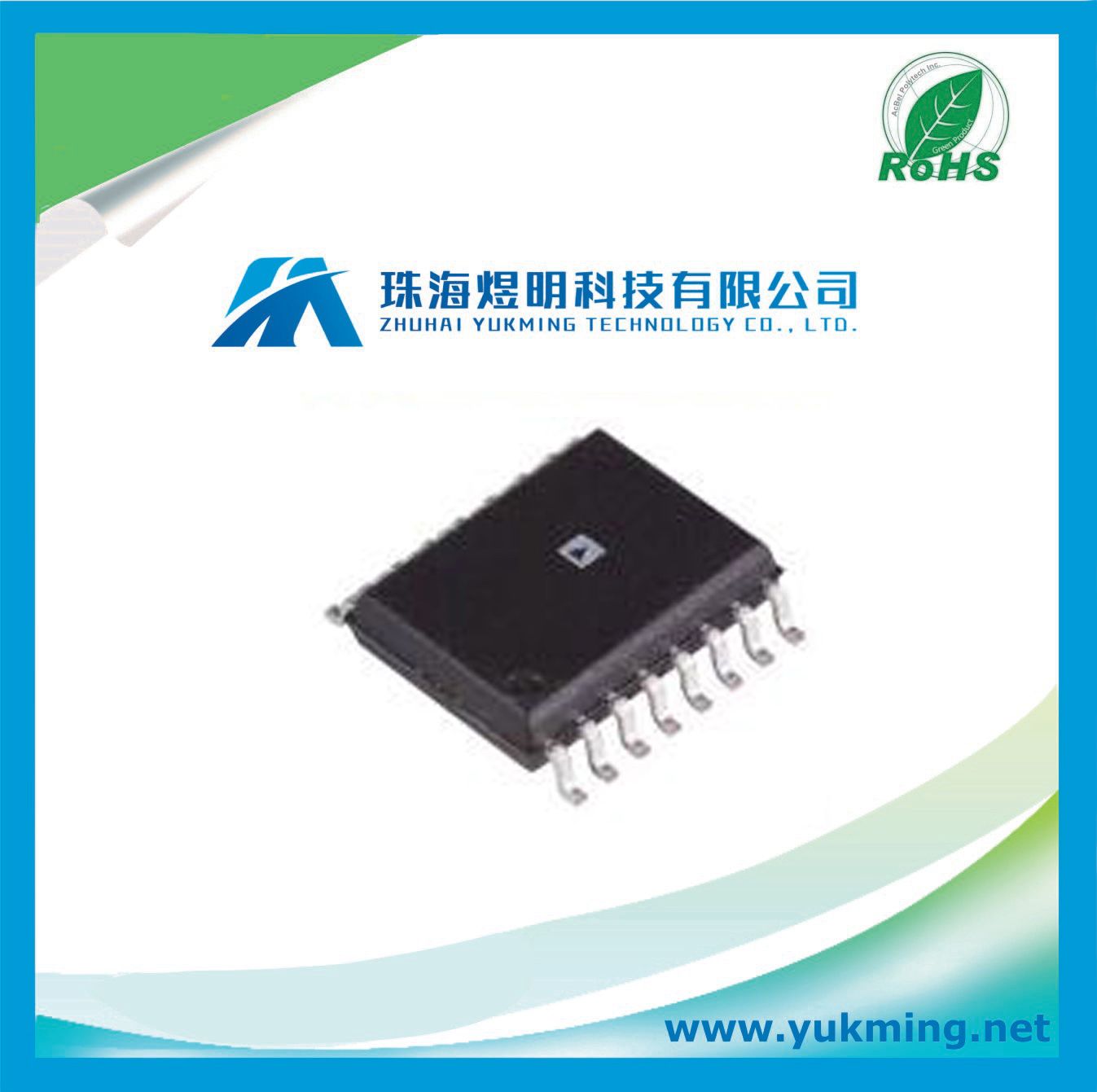

Integrated Circuit Adum1401brwz of Digital Isolator IC

Name: Integrated Circuit Adum1401brwz of Digital Isolator IC
Brand: all-electronics-online.com
SKU: 799591155
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	US $ 2.1127/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

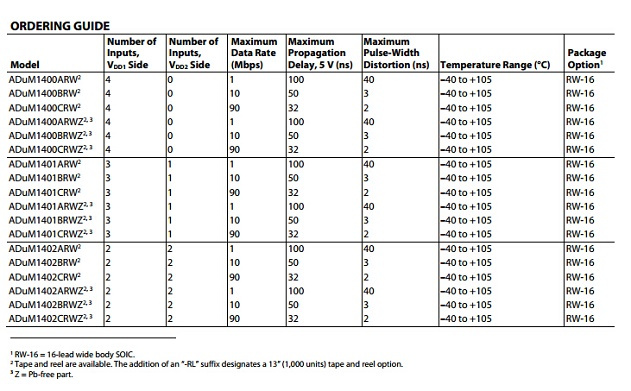

Prod Model:	ADUM1401BRWZ
Output Type:	CMOS
Number Of Channels Per Chip:	4
Maximum Data Rate:	10Mbps
Maximum Operating Supply Voltage (V):	5.5
Maximum Propagation Delay Skew (Ns):	50
Minimum Isolation Voltage (Vrms):	2500
Operating Temperature Range:	-40 ~ 105

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Analog Devices

PRODUCT CATEGORY
Digital Isolator

DESCRIPTION
Digital Isolator CMOS 4-CH 10Mbps 16-Pin SOIC W Tube

Specifications
EU RoHS Compliant
Output Type CMOS
Number of Channels per Chip 4
Maximum Data Rate 10Mbps
Maximum Operating Supply Voltage (V) 5.5
Maximum Propagation Delay Skew (ns) 50
Minimum Isolation Voltage (Vrms) 2500
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 105
Maximum Fall Time (ns) 3(Typ)
Maximum Rise Time (ns) 3(Typ)
Maximum Propagation Delay Time(tPHL) (ns) 50
Maximum Propagation Delay Time(tPLH) (ns) 50
Maximum Pulse Width Distortion (ns) 3
Maximum Quiescent Supply Current (mA) 0.53/0.21
Maximum Working Insulation Voltage 560Vp
Minimum Common Mode Rejection (kV/us) 25
Minimum Pulse Width (ns) 1000
Packaging Tube
Temperature Grade Industrial

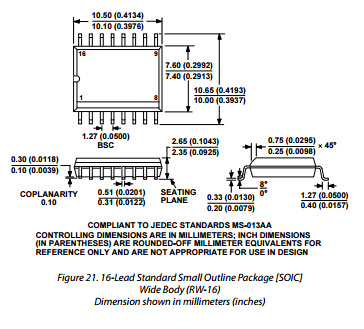

Mounting Surface Mount
Package Height (mm) 2.35(Max)
Package Length (mm) 10.5(Max)
Package Width (mm) 7.6(Max)
PCB changed 16
Standard Package Name SOP
Supplier Package SOIC W
Pin Count 16
Lead Shape Gull-wing

Features
Low power operation
5 V operation
1.0 mA per channel max @ 0 Mbps to 2 Mbps
3.5 mA per channel max @ 10 Mbps
31 mA per channel max @ 90 Mbps
3 V operation
0.7 mA per channel max @ 0 Mbps to 2 Mbps
2.1 mA per channel max @ 10 Mbps
20 mA per channel max @ 90 Mbps
Bidirectional communication
3 V/5 V level translation
High temperature operation: 105°C
High data rate: dc to 90 Mbps (NRZ)
Precise timing characteristics
2 ns max pulse-width distortion
2 ns max channel-to-channel matching
High common-mode transient immunity: >25 kV/μs
Output enable function
Wide body 16-lead SOIC package, Pb-free models available
Safety and regulatory approvals
UL recognition: 2500 V rms for 1 minute per UL 1577
CSA component acceptance notice #5A
VDE certificate of conformity
DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01
DIN EN 60950 (VDE 0805): 2001-12; EN 60950: 2000
V_IORM = 560 V peak

APPLICATIONS
General-purpose multichannel isolation
SPI® interface/data converter isolation
RS-232/RS-422/RS-485 transceiver
Industrial field bus isolation
