Integrated Circuit Ame5269 of Rectified Step-Down Converter IC

Name: Integrated Circuit Ame5269 of Rectified Step-Down Converter IC
Brand: all-electronics-online.com
SKU: 799704885
Availability: InStock
Rating: 4.3 (65 reviews)

Price:	US $ 0.1365/Piece
Min Order:	2500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AME5269
Operating Input Range:	4.75V to 28V
Output Current:	2A
Output:	Adjustable From 0.925V to 25V
Efficiency:	up to 95%
Frequency:	Fixed 340kHz

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Rectified Step-Down Converter

General Description
The AME5269 is a fixed frequency monolithic synchronous
buck regulator that accepts input voltage from 4.75V
to 28V. Two NMOS switches with low on-resistance are
integrated on the die. Current mode topology is used for
fast transient response and good loop stability.
Shutdown mode reduces the input supply current to less
than 1mA. An adjustable soft-start prevents inrush current
at turn-on.

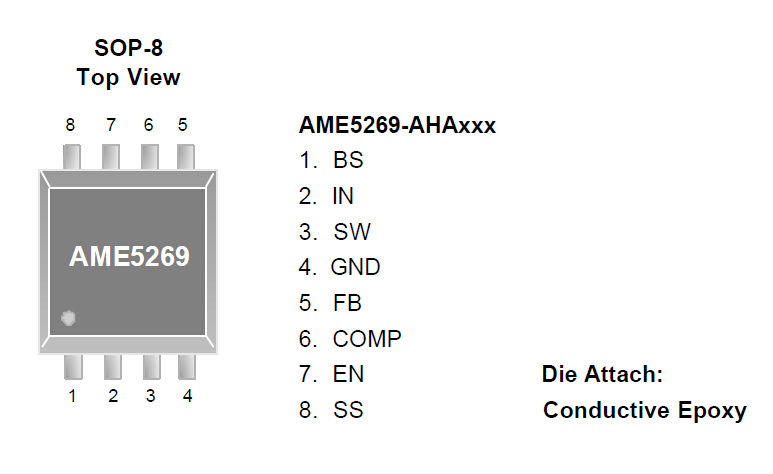

This device is available in SOP-8 package.

Features
2A Output Current
Wide 4.75V to 28V Operating Input Range
Integrated Power MOSFET Switches
Output Adjustable from 0.925V to 25V
Up to 95% Efficiency
Programmable Soft Start
Stable with Low ESR Ceramic Output
Capacitors
Cycle-by Cycle Over Current Protection
Fixed 340KHz Frequency
Input Under Voltage Lockout
System Protected by Over-current Limiting,
Over-voltage Protection and Thermal Shutdown
Green Products Meet RoHS Standards

Applications
Distributed Power System
Networking System
FPGA, DSP, ASIC Power Supplies
Notebook Computers
