Integrated Circuit At42qt1111-Mu of Capacitive Touch Sensor IC

Name: Integrated Circuit At42qt1111-Mu of Capacitive Touch Sensor IC
Brand: all-electronics-online.com
SKU: 799173755
Availability: InStock
Rating: 4.8 (30 reviews)

Price:	US $ 2.26/Piece
Min Order:	460/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AT42QT1111-MU

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Atmel

PRODUCT CATEGORY
Specialized Sensor

DESCRIPTION

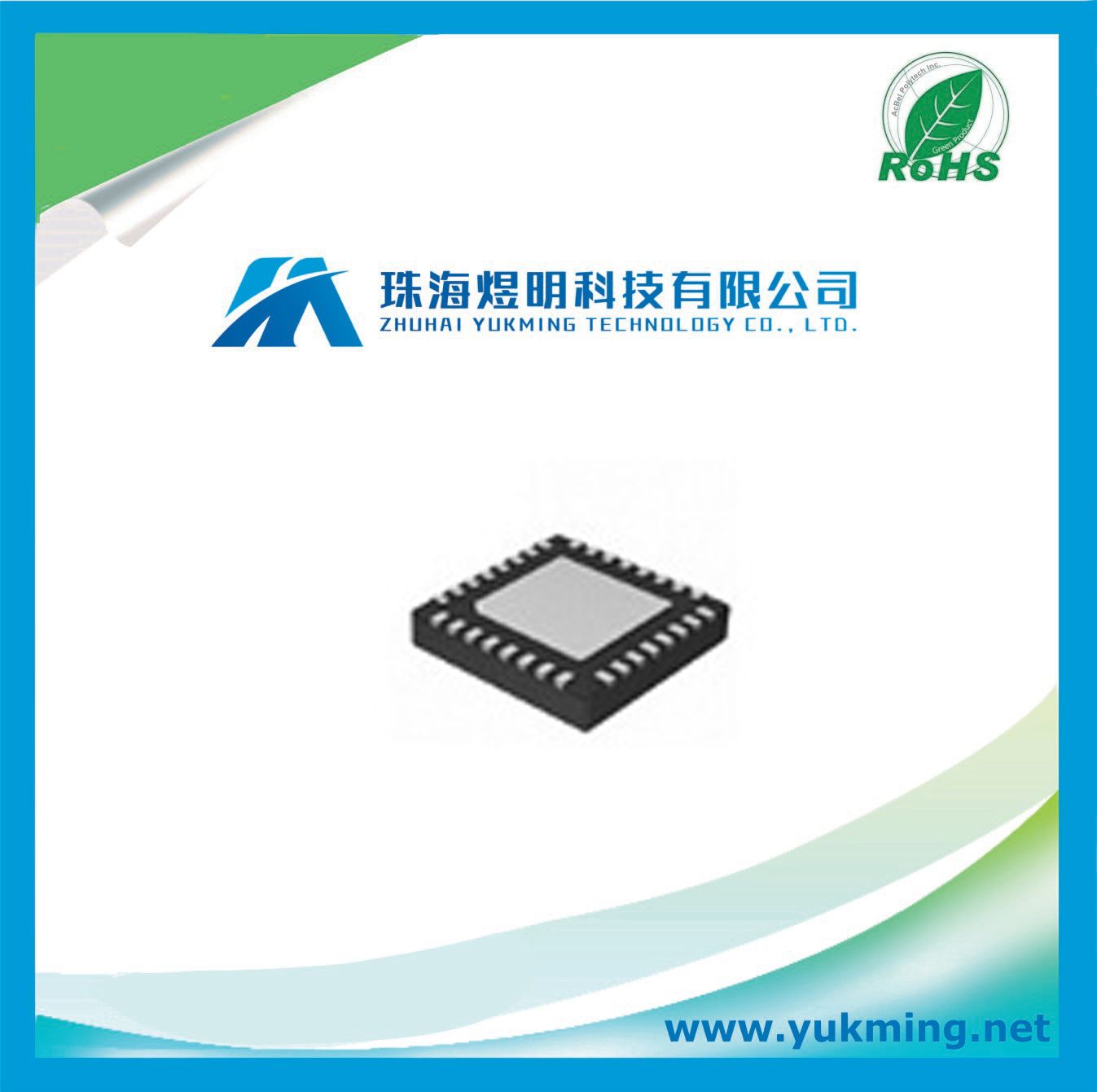

Capacitive Touch Sensor 32-Pin MLF EP
Capture all physical changes in your circuit by using this AT42QT1111-MU specialized sensor by Atmel.

Specifications
EU RoHS Compliant
Product Category Capacitive Touch Sensor
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Temperature Grade Industrial
Mounting Surface Mount

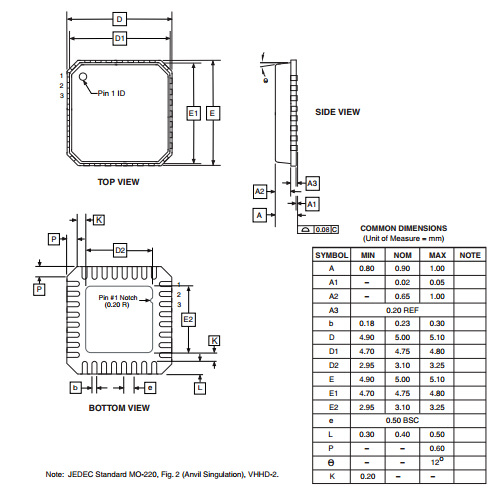

Package Height (mm) 0.88
Package Length (mm) 5
Package Width (mm) 5
PCB changed 32
Standard Package Name QFN
Supplier Package MLF EP

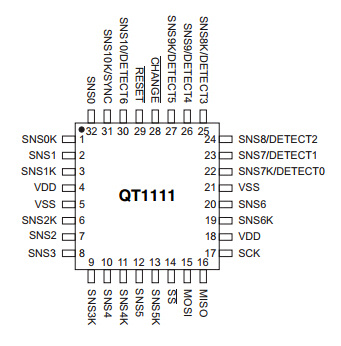

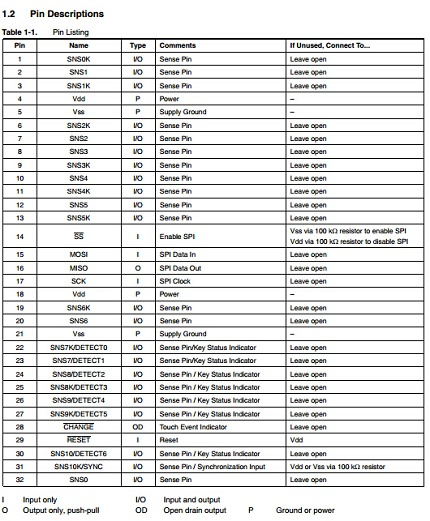

Pin Count 32

Features
• Sensor Keys:
- Up to 11 QTouch™ channels
• Data Acquistion:
- Measurement of keys triggered either by a signal applied to the SYNC pin or at
regular intervals timed by the AT42QT1110's internal clock
- Keys measured sequentially for better performance, or in parallel groups for faster
operation
- Raw data for key touches can be read as a report over the SPI interface
• Discrete Outputs:
- Configurable "Detect" outputs indicating individual key touch (7-key mode)
• Device Setup:
- Device configuration can be stored in EEPROM
• Technology:
- Patented spread-spectrum charge-transfer (direct mode)
• Key Outline Sizes:
- 6 mm x 6 mm or larger (panel thickness dependent); widely different sizes and
shapes possible, including solid or ring shapes
• Key Spacings:
- 7 mm center to center or more (panel thickness dependent)
• Layers Required:
- One
• Electrode Materials:
- Etched copper, silver, carbon, Indium Tin Oxide (ITO)
• Electrode Substrates:
- PCB, FPCB, plastic films, glass
• Panel Materials:
- Plastic, glass, composites, painted surfaces (low particle density metallic paints
possible)
• Panel Thickness:
- Up to 10 mm glass, 5 mm plastic (electrode size dependent)
• Key Sensitivity:
- Individually settable via simple commands over serial interface
• Adjacent Key Suppression® (AKS™)
- Patented AKS technology to enable accurate key detection
• Interface:
- Full-duplex SPI slave mode (750 KHz), "change" pin, discrete detection outputs
• Moisture Tolerance Good
• Power:
- 1.8V ~ 5.5V
• Package:
- 32-pin 5 x 5 mm MLF RoHS compliant
- 32-pin 7 x 7 mm TQFP RoHS compliant
• Signal Processing:
- Self-calibration, auto drift compensation, noise filtering, AKS technology
• Applications:
- Consumer and industrial applications, such as TV, media player, etc
