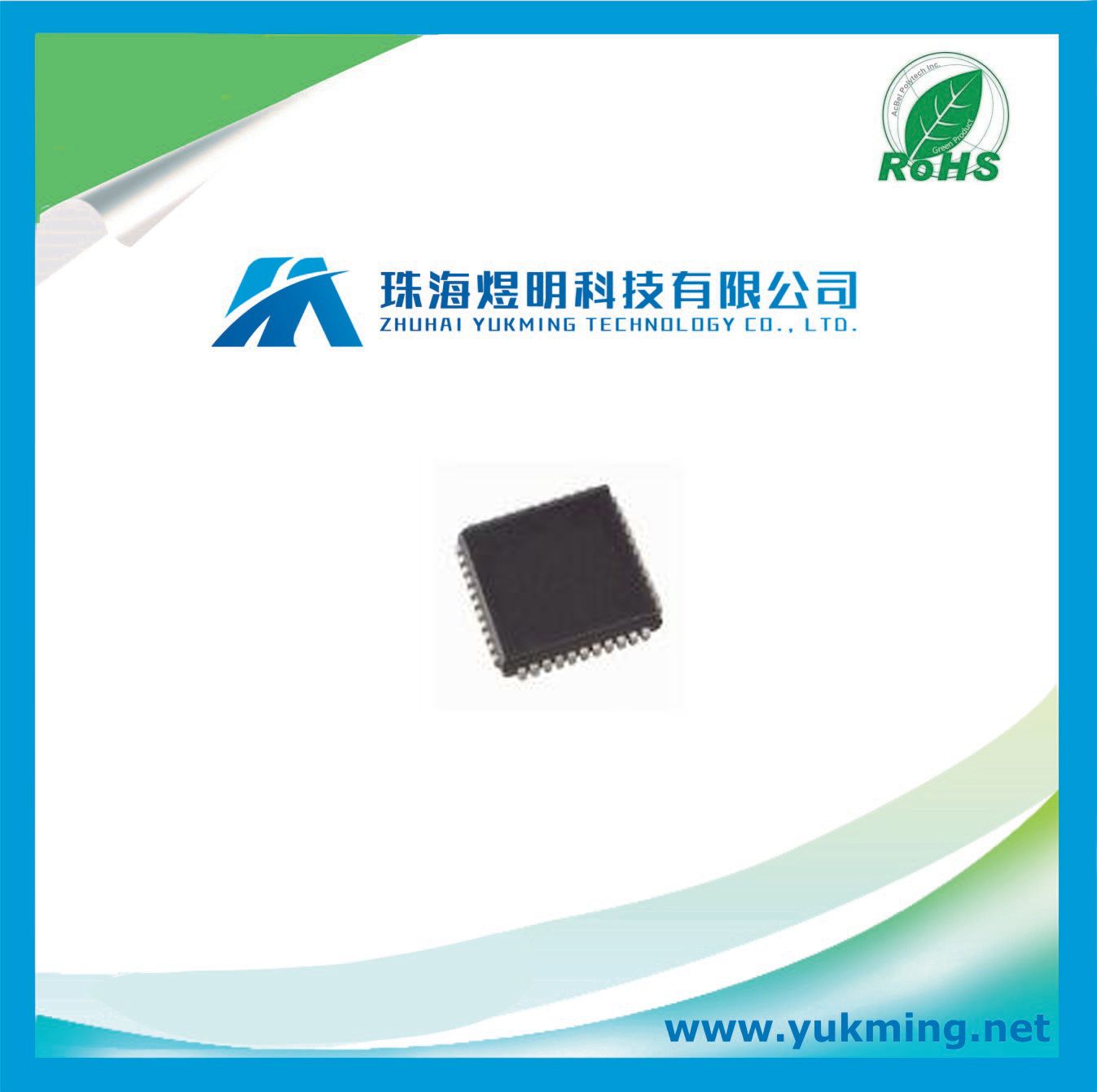

Integrated Circuit At89c51ID2-Slsum of Programmable Microcontroller IC

Prod Model:	AT89C51ID2-SLSUM
Number Of Elements Per Chip:	1
Number Of Element Inputs:	9
Number Of Count Input Enables:	0
Number Of Element Outputs:	1
Operation Temperature Range:	-40~125

Product Description

MANUFACTURER
Atmel

PRODUCT CATEGORY
Microcontroller

DESCRIPTION
MCU 8-bit AT89 8051 CISC 64KB Flash 3.3V/5V 44-Pin PLCC Stick

Use this programmable AT89C51ID2-SLSUM microcontroller manufactured by Atmel, to dress up any design. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 40 MHz. This device has a typical operating supply voltage of 3.3|5 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 5.5 V. This is a 8 bit processor. This device is based on the 8051 core architecture. Its flash program memory is 64KB.

Specifications
EU RoHS Compliant
Family Name AT89
Data Bus Width (bit) 8
Instruction Set Architecture CISC
Maximum Clock Rate (MHz) 40
Maximum CPU Frequency (MHz) 40
Device Core 8051
Program Memory Type Flash
Program Memory Size 64KB
Maximum Expanded Memory Size 64KB
RAM Size 2KB
Number of Programmable I/Os 32
Core Architecture 8051
Programmability Yes
Number of Timers 3
Interface Type SPI/UART
CAN 0
I2C 0
SPI 1
Ethernet 0
UART 1
USART 0
USB 0
I2S 0
Maximum Operating Supply Voltage (V) 5.5
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Packaging Stick
Maximum Power Dissipation (mW) 1000
Minimum Operating Supply Voltage (V) 2.7
Typical Operating Supply Voltage (V) 3.3|5
Temperature Flag Opr
CECC Qualified No
Mounting Surface Mount
Package Height (mm) 3.48(Max)
Package Length (mm) 16.7(Max)
Package Width (mm) 16.7(Max)
PCB changed 44
Standard Package Name LCC
Supplier Package PLCC
Pin Count 44
Lead Shape J-Lead
