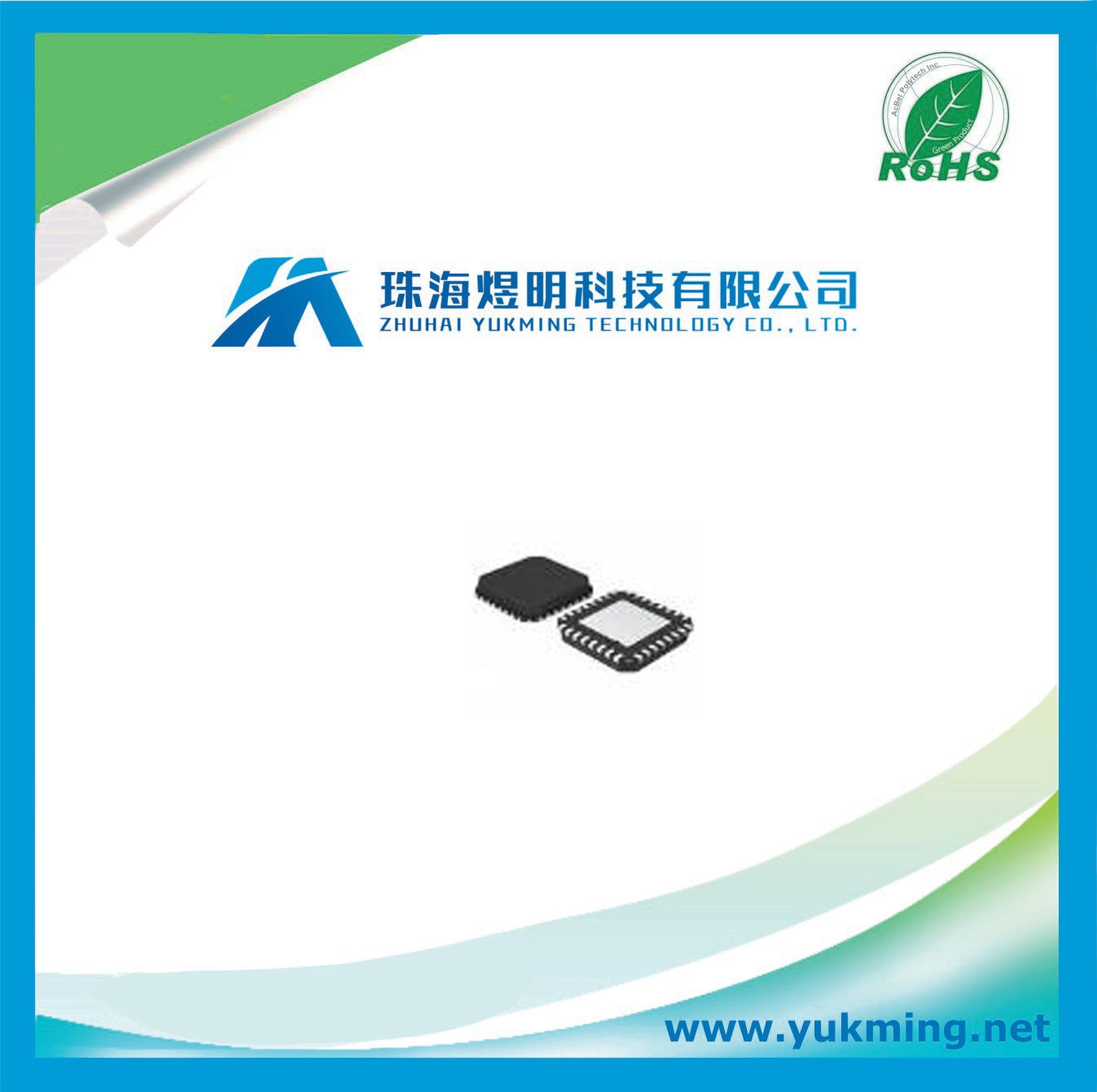

Integrated Circuit Atsamd20e15A-Mu of MCU 32-Bit Microcontroller IC

Prod Model:	ATSAMD20E15A-MU
Family Name:	Sam D20e
Data Bus Width (Bit):	32
Maximum Clock Rate (MHz):	48
Maximum CPU Frequency (MHz):	48
Program Memory Size:	32kb
RAM Size:	4kb
Number Of Programmable I/OS:	26
Number Of Timers:	6

Product Description

MANUFACTURER
Atmel

PRODUCT CATEGORY
Microcontroller

DESCRIPTION
MCU 32-bit SAM D20E ARM Cortex M0+ RISC 32KB Flash 1.8V/2.5V/3.3V 32-Pin QFN EP Tray

Automate any process or system using this ATSAMD20E15A-MU microcontroller from Atmel. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 48 MHz. Its ADC resolution is 12. Its flash program memory is 32KB. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.62 V, while its maximum is 3.63 V. This is a 32 bit processor. This device is based on the ARM Cortex M0+ core architecture.

Specifications
EU RoHS Compliant
Family Name SAM D20E
Data Bus Width (bit) 32
Instruction Set Architecture RISC
Maximum Clock Rate (MHz) 48
Maximum CPU Frequency (MHz) 48
Device Core ARM Cortex M0+
Program Memory Type Flash
Program Memory Size 32KB
RAM Size 4KB
Number of Programmable I/Os 26
Core Architecture ARM
Programmability Yes
Number of Timers 6
Interface Type I2C/SPI/USART
CAN 0
I2C 4
PWM 1
SPI 4
Watchdog 1
Ethernet 0
UART 0
Analog Comparators 2
USART 4
USB 0
Parallel Master Port No
I2S 0
Real Time Clock Yes
Maximum Operating Supply Voltage (V) 3.63
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
ADC Channels 10
ADC Resolution 12
Number of ADCs Single
Number of DACs Single
Packaging Tray
Minimum Operating Supply Voltage (V) 1.62
Typical Operating Supply Voltage (V) 1.8|2.5|3.3
Temperature Flag Opr
CECC Qualified No
Mounting Surface Mount
Package Height (mm) 0.95(Max)
Package Length (mm) 5
Package Width (mm) 5
PCB changed 32
Standard Package Name QFN
Supplier Package QFN EP
Pin Count 32
Lead Shape No Lead
