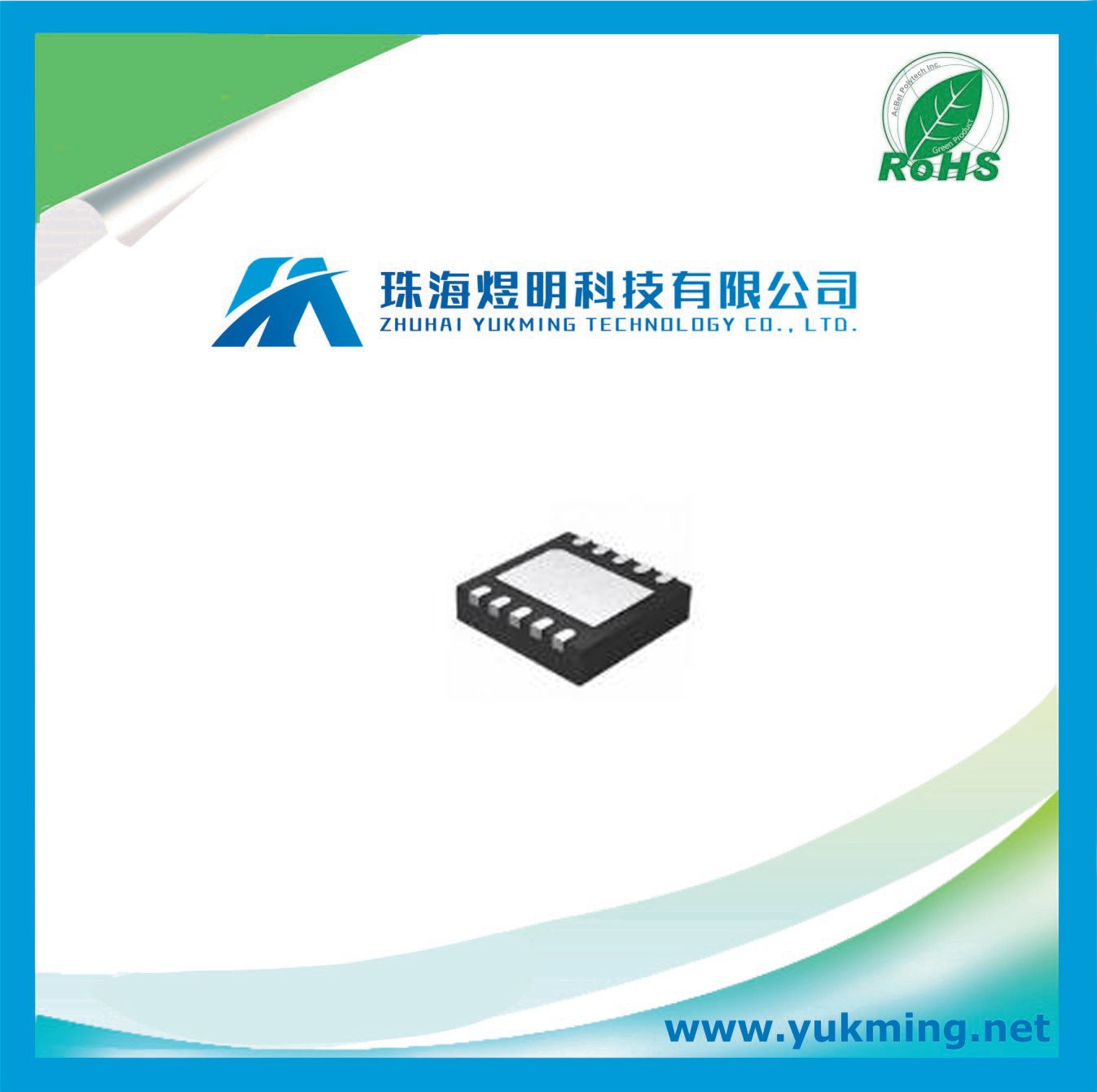

Integrated Circuit Attiny13A-Mmu of 8-Bit Microcontroller IC

Prod Model:	ATTINY13A-MMU
Data Bus Width (Bit):	8
Maximum Clock Rate (MHz):	20
Maximum CPU Frequency (MHz):	20
Program Memory Size:	1kb
Number Of Programmable I/OS:	6
Number Of Timers:	1
Maximum Operating Supply Voltage (V):	5.5
Operating Temperature:	-40 to 85 Degree C
Minimum Operating Supply Voltage:	1.8V
Maximum Operating Supply Voltage:	5.5V

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

8-bit Microcontroller with 1K Bytes In-System Programmable Flash

MANUFACTURER
Atmel

PRODUCT CATEGORY
Microcontroller

DESCRIPTION
MCU 8-bit ATtiny AVR RISC 1KB Flash 2.5V/3.3V/5V 10-Pin MLF EP

With the ATTINY13A-MMU microcontroller by Atmel, many functions and tasks can be automated to a developer's desired specifications. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 20 MHz. Its ADC resolution is 10. This is a 8 bit processor. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 1.8 V, while its maximum is 5.5 V. Its flash program memory is 1KB. This device is based on the AVR core architecture.

Specifications
EU RoHS Compliant
Family Name ATtiny
Data Bus Width (bit) 8
Instruction Set Architecture RISC
Maximum Clock Rate (MHz) 20
Maximum CPU Frequency (MHz) 20
Device Core AVR
Program Memory Type Flash
Program Memory Size 1KB
RAM Size 64B
Number of Programmable I/Os 6
Core Architecture AVR
Programmability Yes
Number of Timers 1
Interface Type SPI
CAN 0
I2C 0
PWM 1
SPI 1
Watchdog 1
Ethernet 0
UART 0
Analog Comparators 1
USART 0
USB 0
I2S 0
Maximum Operating Supply Voltage (V) 5.5
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
ADC Channels 4
ADC Resolution 10
Number of ADCs Single
Minimum Operating Supply Voltage (V) 1.8
Typical Operating Supply Voltage (V) 2.5|3.3|5
Supplier Temperature Grade Industrial
CECC Qualified No
Mounting Surface Mount
Package Height (mm) 0.88
Package Length (mm) 3
Package Width (mm) 3
PCB changed 10
Standard Package Name QFN
Supplier Package MLF EP
Pin Count 10
