Integrated Circuit B0322j5050ahf of Transformer IC

Name: Integrated Circuit B0322j5050ahf of Transformer IC
Brand: all-electronics-online.com
SKU: 799604025
Availability: InStock
Rating: 4.6 (85 reviews)

Price:	US $ 0.7658/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	B0322J5050AHF
Category:	RF/If and RFID
Family:	Balun
Series:	Xinger
Packaging:	Cut Tape (CT)
Part Status:	Active
Frequency Range:	300MHz ~ 2.2GHz
Impedance - Unbalanced/Balanced:	50 / 50 Ohm
Mounting Type:	Surface Mount

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

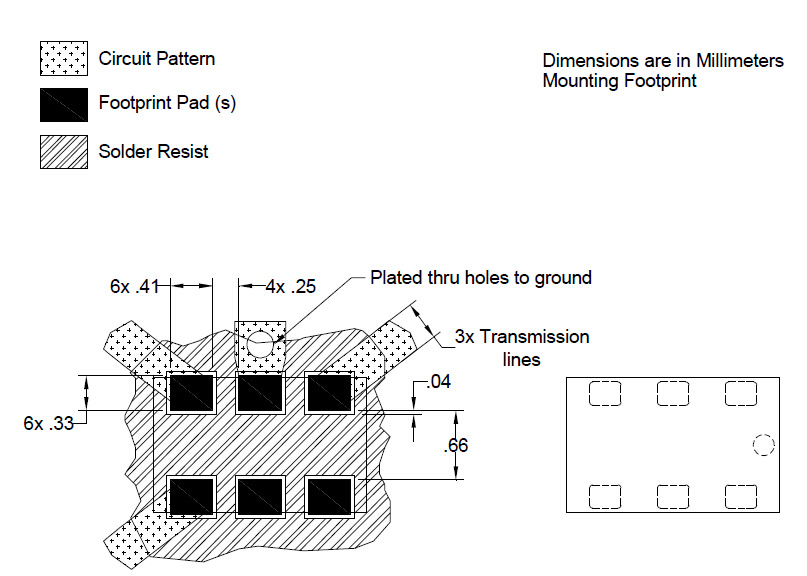

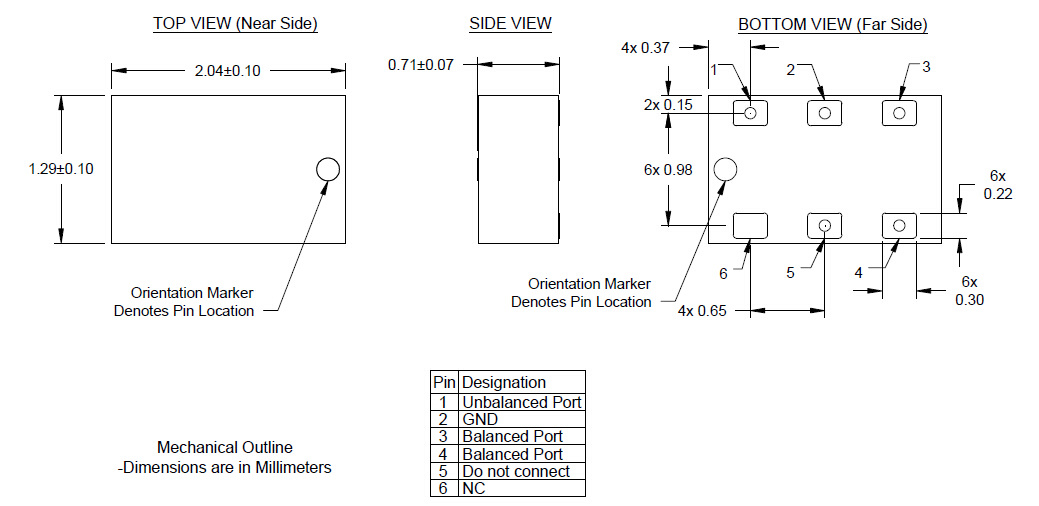

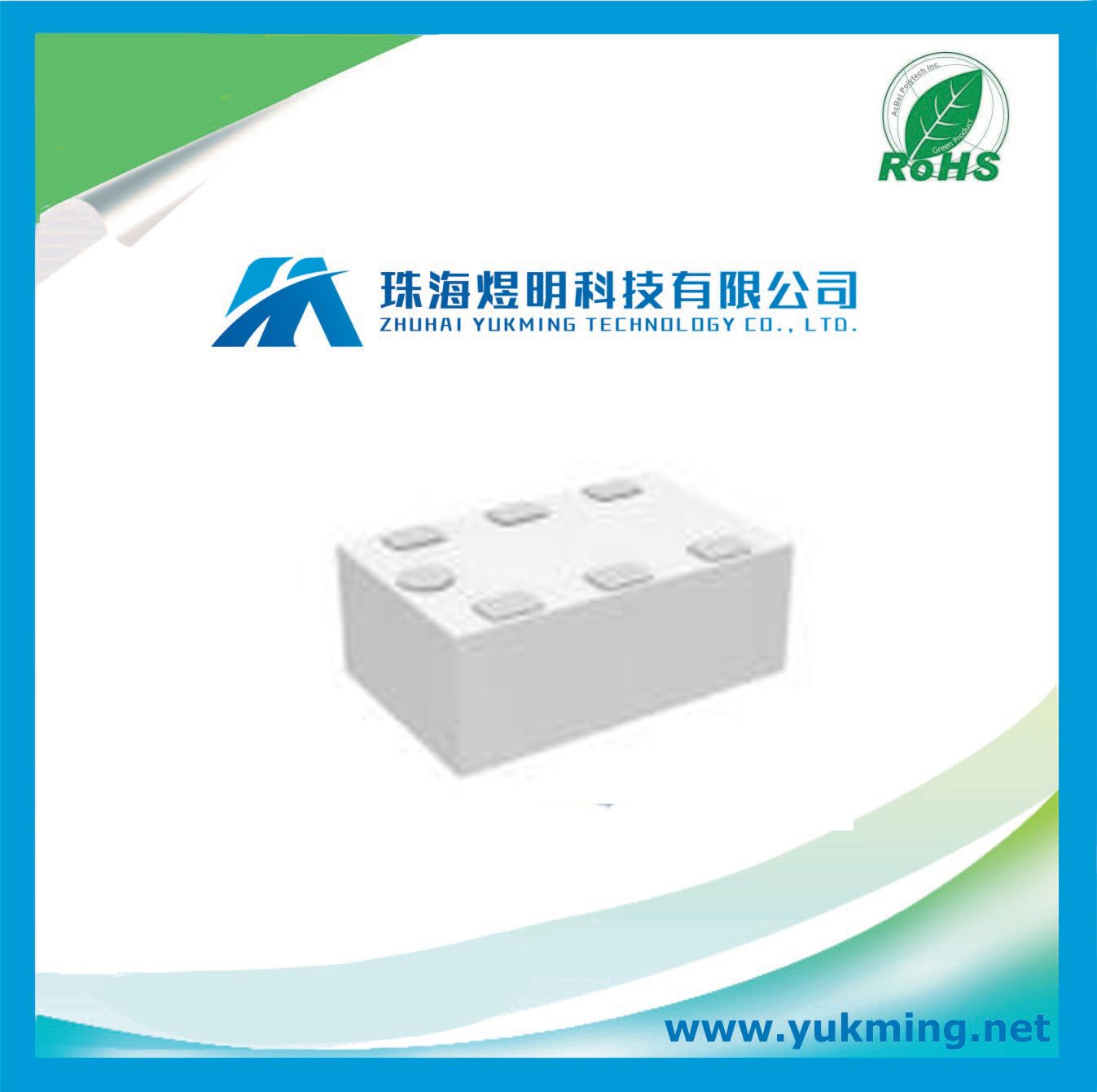

Ultra Low Profile 0805 Balun
50 to 50 Balanced

Category RF/IF and RFID
Family Balun
Manufacturer Anaren
Series Xinger®
Packaging Cut Tape (CT)
Part Status Active
Frequency Range 300MHz ~ 2.2GHz
Impedance - Unbalanced/Balanced 50 / 50 Ohm
Phase Difference 17°
Insertion Loss (Max) 1.6dB
Return Loss (Min) 12.2dB
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount

Description
The B0322J5050AHF is a low profile sub-miniature balanced to unbalanced
transformer designed for differential inputs and output locations on next generation
wireless chipsets in an easy to use surface mount package covering the GSM
frequency. The B0322J5050AHF is ideal for high volume manufacturing and is
higher performance than traditional ceramic and lumped element baluns. The
B0322J5050AHF has an unbalanced port impedance of 50 and a 50 balanced
port impedance. This transformation enables single ended signals to be applied to
differential ports on modern semiconductors. The output ports have equal amplitude
(-3dB) with 180 degree phase differential. The B0322J5050AHF is available on tape
and reel for pick and place high volume manufacturing.

Features:
• 300 - 2200 MHz
• 0.7mm Height Profile
• 50 Ohm to 2 x 25 Ohm
• Low Insertion Loss
• Surface Mountable
• Tape & Reel
• Non-conductive Surface
• RoHS Compliant
• Halogen Free

Parameter                     Min.          Typ.         Max           Unit
Frequency                     300                       2200          MHz
Unbalanced Port Impedance                   50                          Ω
Balanced Port Impedance                     50                          Ω
Return Loss                   12.2           16                         dB
Insertion Loss*                                1.3          1.6           dB
Amplitude Balance                            1.1           1.2           dB
Phase Balance                                17           20       Degrees
CMRR                                       15                         dB
Power Handling                                             2          Watts
Operating Temperature          -55                         +85          ºC
* Insertion Loss stated at room temperature (Insertion Loss is approximately 0.1 dB higher at +85 ºC)
