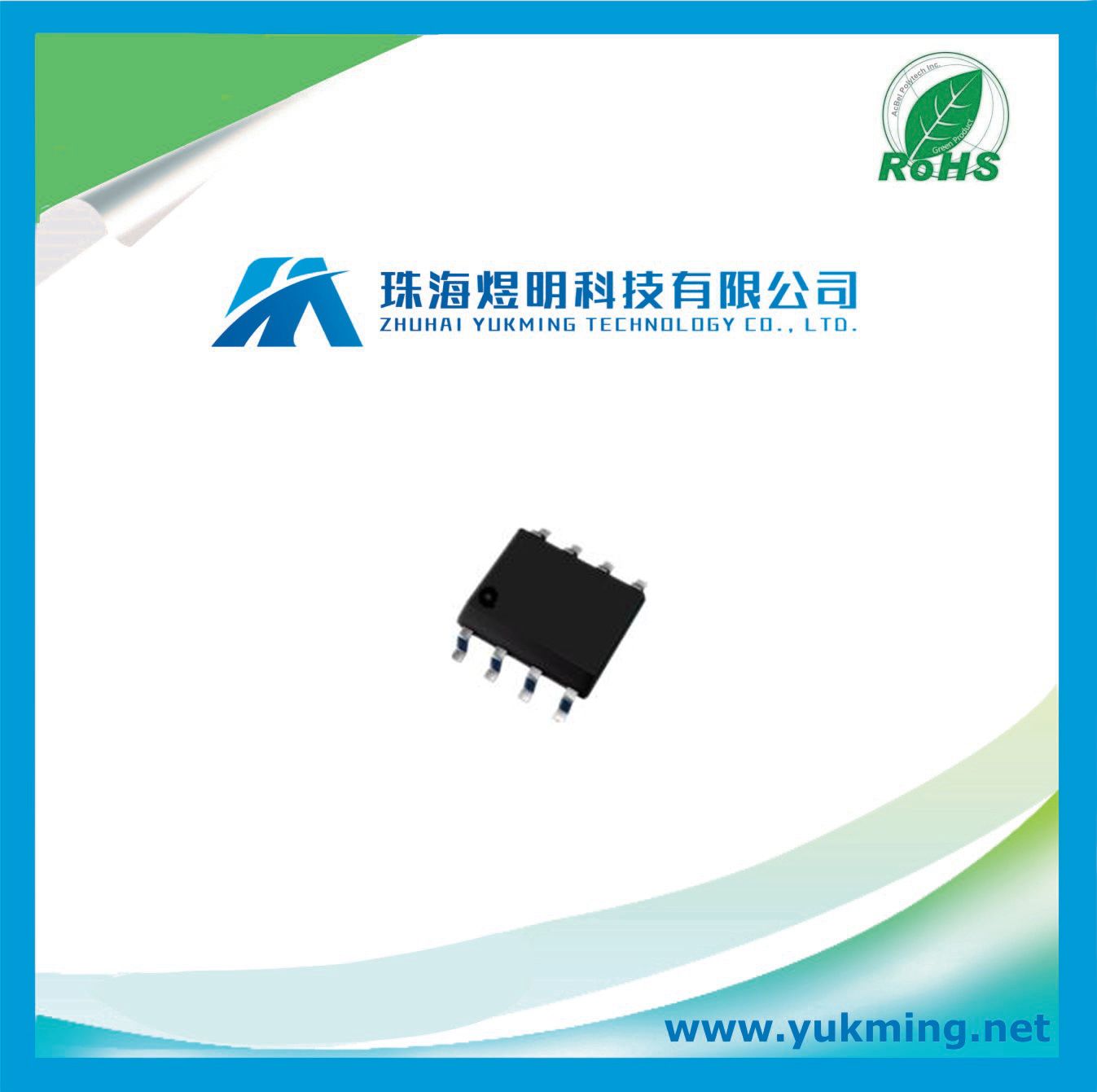

Integrated Circuit Bl4056b of Voltage Linear Charger IC

Integrated Circuit Bl4056b of Voltage Linear Charger IC
Price: US $ 0.19/Piece
Min Order: 3000/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: BL4056B

Product Description

Lead time2 to 3 days after receiving the payment.
Remark100% New and original ; 30 days warranty
Payment  Heng Seng Bank (Hong Kong), Paypal,
ShipmentDHL ,TNT ,FEDEX, UPS or any other express

General Description
BL4056 is a complete constant-current/constant voltage
linear charger for single cell lithium-ion batteries. With a
thermally enhanced 8-PIN SOP package on the bottom
and low external component count make the BL4056
ideally suited for portable applications. Furthermore the
BL4056 is specifically designed to work within USB power
specifications.
No external sense resistor is needed and no blocking
diode is required due to the internal PMOSFET
architecture .Thermal feedback regulates the charge
current to limit the die temperature during high power
operation or high ambient temperature .The charge voltage
is fixed at 4.2V/4.34V,and the charge current can be
programmed externally with a single resistor. The BL4056
automatically terminates the charge cycle when the charge
current drops to 1/10th the programmed value after the final
float voltage is reached.
When the input supply (wall adapter or USB supply) is
removed the BL4056 automatically enters a low current
state dropping the battery drain current to less than
2µA.A.The BL4056 can be put into shutdown mode reducing
the supply current to 55µA.
Other features include Battery temperature monitor,
under-voltage lockout, automatic recharge and two status
pins to indicate charge and charge termination.

Features
Protection of battery cell reverse connection
Programmable charge current up to 1A
No MOSFET sense resistor or blocking diode
required
Complete linear Charger in SOP8 Package for
single Cell Lithium-Ion Batteries.
Constant-Current/Constant-Voltage operation
with thermal regulation to maximize Rate
Without risk of overheating.
Preset 4.2V/4.34V charge voltage with ±1%
accuracy
Automatic Recharge
Two Status Indication for Charge status, no
battery and battery failure indicators
C/10 charge termination
55µA supply current in shutdown
2.9V trickle current charge threshold
Soft-Start limits inrush current
Battery Temperature Sensing

Application
Cellular Telephones
Digital Still Cameras
MP3 Players
Bluetooth Applications
Portable Devices
USB Bus-Powered Chargers
