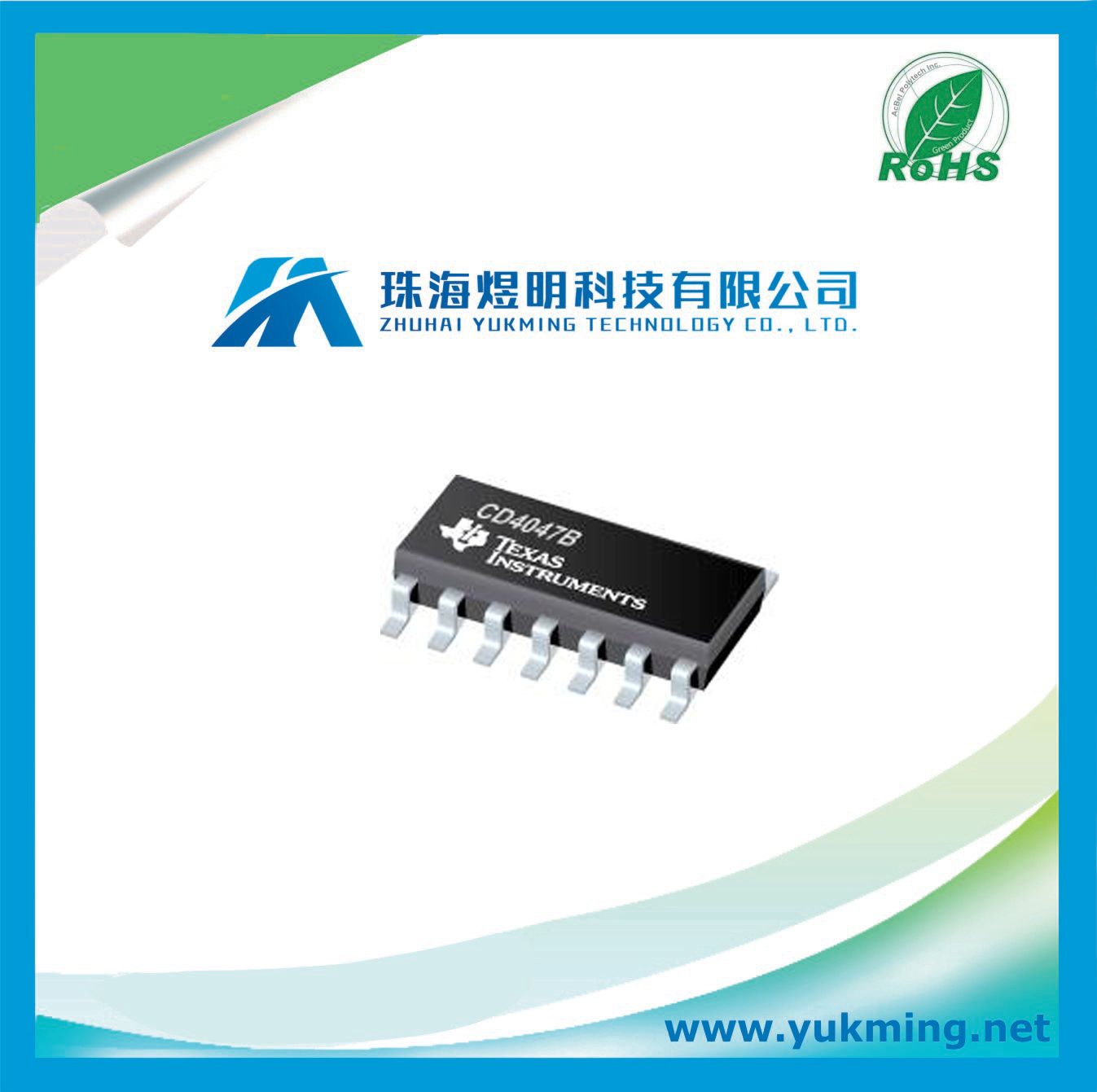

Integrated Circuit CD4047b of Monostable/Astable Multivibrator IC

Prod Model:	CD4047B

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

CMOS LOW-POWER MONOSTABLE/ASTABLE MULTIVIBRATOR

Features
Lower power consumption: special CMOS oscillator configuration
Monostable (one-shot) or astable (free-running) operation
True and complemented buffered outputs
Only one external R anc C required
Buffered inputs
100% tested for quiescent current at 20 V
Standardized, symmetrical output characteristics
5-V, 10-V, and 15-V parametric ratings
Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
Monostable Multivibrator Features:
Positive-or negative-edge trigger
Output pulse width independent of trigger pulse duration
Retriggerable option for pulse width expansion
Internal power-on reset circuit
Long pulse widths possible using small RC components by means of external counter provision
Fast recovery time essentially independent of pulse width
Pulse-width accuracy maintained at duty cycles approaching 100%
Astable Multivibrator Features:
Free-running or gatable operating modes
50% duty cycle
Oscillator output available
Good astable frequency stability:
   Frequency deviation:
     = ±2% + 0.03%/°C @ 100 kHz
     = ±0.5% +0.015%/°C @ 10 kHz (circuits "trimmed" to frequency VDD = 10 V ± 10%)

Applications:
Digital equipment where low-power dissipation and/or high noise immunity are primary design requirements:
Envelope detection
Frequency multiplication
Frequency division
Frequency discriminators
Timing circuits
Time-delay applications
