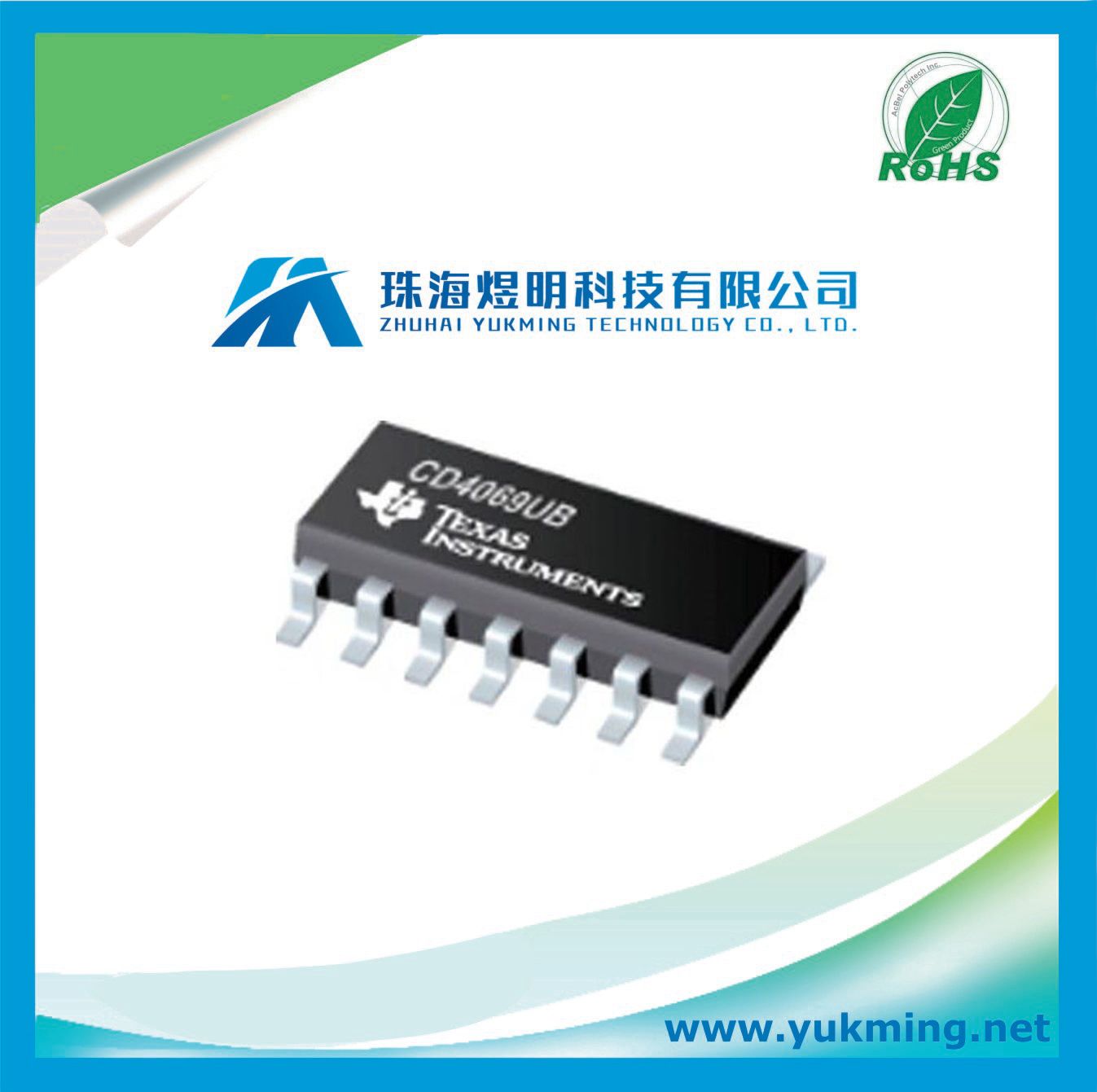

Integrated Circuit CD4069ubm96 of CMOS Hex Inverter IC

Name: Integrated Circuit CD4069ubm96 of CMOS Hex Inverter IC
Brand: all-electronics-online.com
SKU: 796599195
Availability: InStock
Rating: 4.9 (92 reviews)

Price:	US $ 0.15/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CD4069UBM96

Product Description

Features
• Standardized Symmetrical Output Characteristics
• Medium Speed Operation: -tPHL, tPLH = 30 ns at 10 V (Typical)
• 100% Tested for Quiescent Current at 20 V
• Maximum Input Current of 1 µA at 18 V Over Full Package-Temperature Range, 100 nA at
  18 V and 25°C
• Meets All Requirements of JEDEC Tentative Standard No. 13B, Standard Specifications
  for Description of B Series CMOS Devices

Category	Integrated Circuits (ICs)
Family	Logic - Gates and Inverters
Manufacturer	Texas Instruments
Series	4000B
Packaging	Tape & Reel (TR)
Logic Type	Inverter
Number of Circuits	6
Number of Inputs	6
Features	-
Voltage - Supply	3 V ~ 18 V
Current - Quiescent (Max)	1µA
Current - Output High, Low	3.4mA, 3.4mA
Logic Level - Low	1 V ~ 2.5 V
Logic Level - High	4 V ~ 12.5 V
Max Propagation Delay @ V, Max CL	50ns @ 15V, 50pF
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount

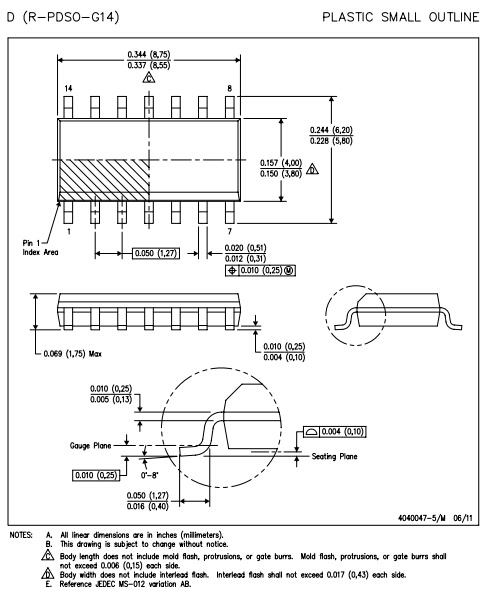

Supplier Device Package	14-SOIC
Package / Case	14-SOIC (0.154", 3.90mm Width)

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
