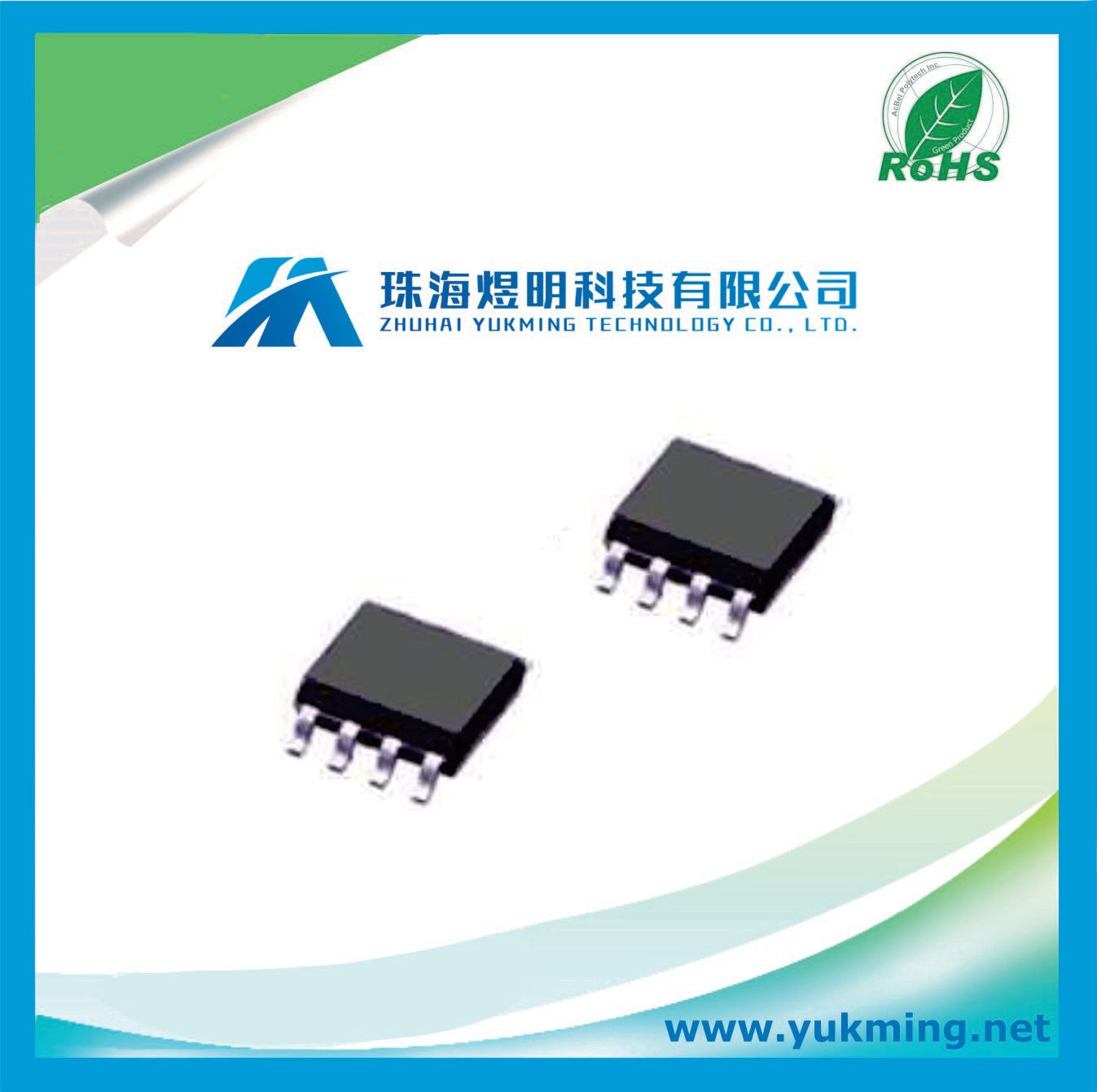

Integrated Circuit Ds1232lps-2 of Low Power Micromonitor IC

Name: Integrated Circuit Ds1232lps-2 of Low Power Micromonitor IC
Brand: all-electronics-online.com
SKU: 796622655
Availability: InStock
Rating: 5 (129 reviews)

Price:	US $ 0.67/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DS1232LPS-2

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

DESCRIPTION

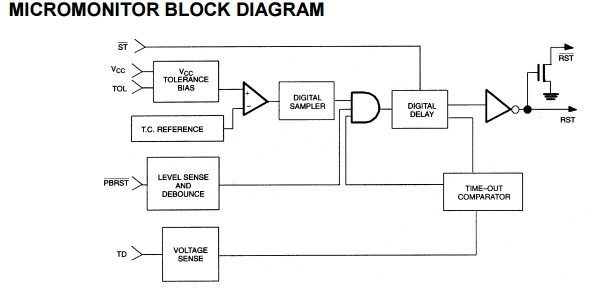

The DS1232LP/LPS Low Power MicroMonitor Chip monitors three vital conditions for a microprocessor: power supply, software execution, and external over-ride. First, a precision temperaturecompensated reference and comparator circuit monitors the status of VCC. When an out-of-tolerance condition occurs, an internal power-fail signal is generated which forces reset to the active state. When VCC returns to an in-tolerance condition, the reset signals are kept in the active state for a minimum of
250 ms to allow the power supply and processor to stabilize.

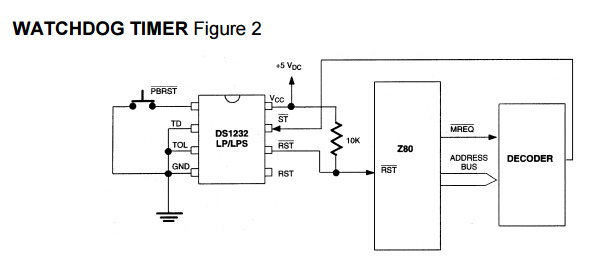

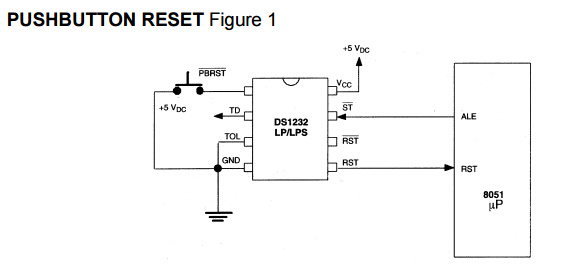

The second function the DS1232LP/LPS performs is pushbutton reset control. The DS1232LP/LPS debounces the pushbutton input and guarantees an active reset pulse width of 250 ms minimum. The third function is a watchdog timer. The DS1232LP/LPS has an internal timer that forces the reset signals to the active state if the strobe input is not driven low prior to timeout. The watchdog timer function can be set to operate on timeout settings of approximately 150 ms, 600 ms, and 1.2 seconds.

FEATURES
• Super-low power version of DS1232
• 50 µA quiescent current
• Halts and restarts an out-of-control
   microprocessor
• Automatically restarts microprocessor after
   power failure
• Monitors pushbutton for external override
• Accurate 5% or 10% microprocessor power
   supply monitoring

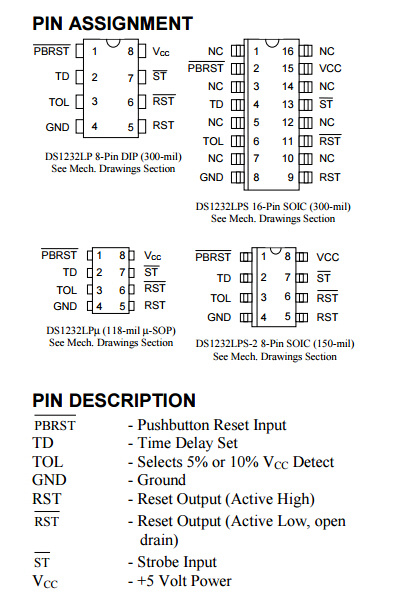

• 8-pin DIP, 8-pin SOIC or space saving µ-SOP
   package available
• Optional 16-pin SOIC package available
• Industrial temperature -40°C to +85°C
   available, designated N

Category	Integrated Circuits (ICs)
Family	PMIC - Supervisors
Manufacturer	Maxim Integrated
Series	MicroMonitor™
Packaging	Tube
Part Status	Active
Type	Simple Reset/Power-On Reset
Number of Voltages Monitored	1
Output	Open Drain, Push-Pull
Reset	Active High/Active Low
Reset Timeout	Adjustable/Selectable
Voltage - Threshold	4.37V, 4.62V
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
