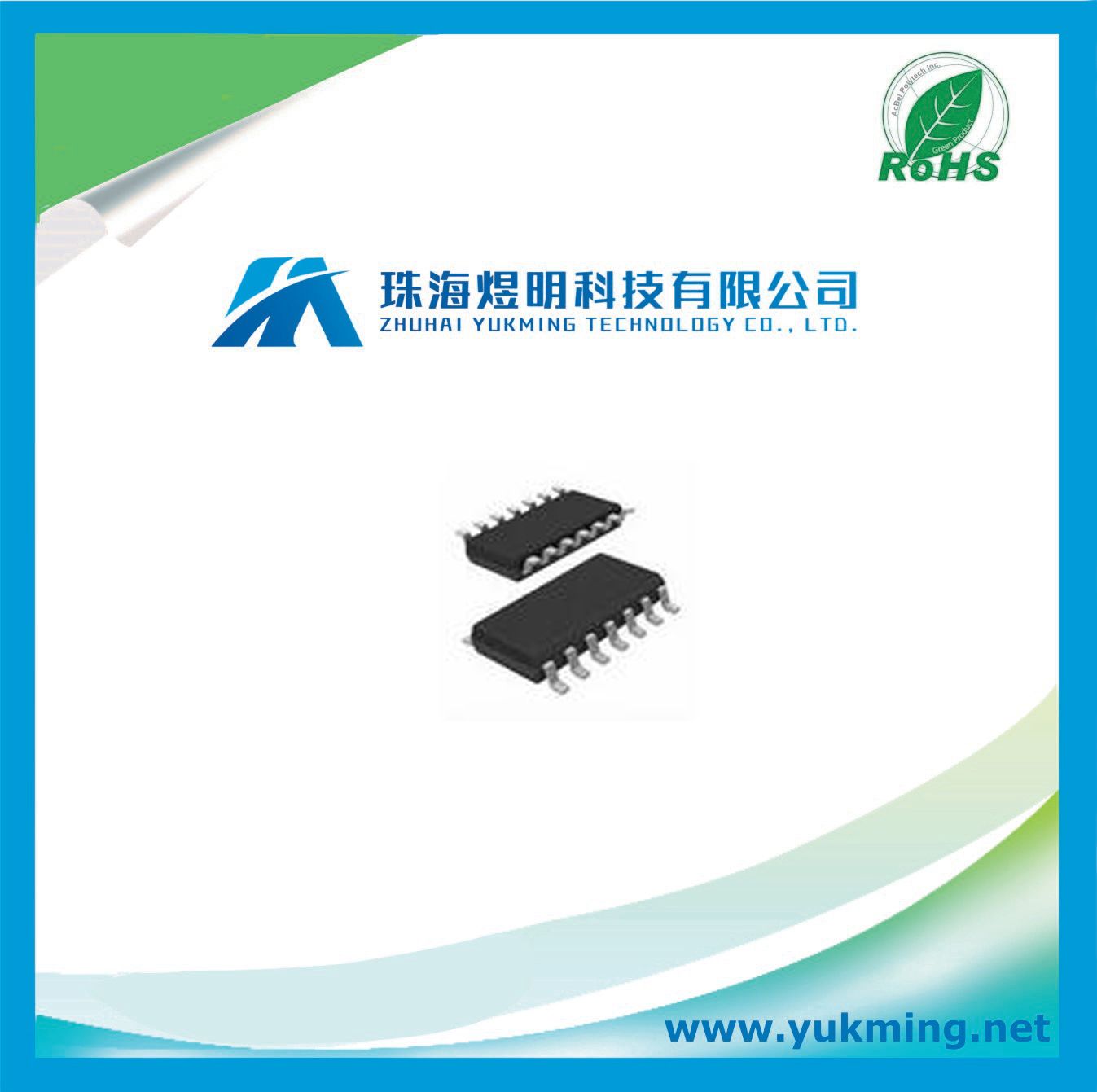

Integrated Circuit Hef4013bt of Flip Flop D-Type POS-Edge IC

Prod Model:	HEF4013BT

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
NXP Semiconductors

PRODUCT CATEGORY
Flip Flops

DESCRIPTION
Flip Flop D-Type Pos-Edge 2-Element 14-Pin SO T/R

NXP Semiconductors brings you their latest HEF4013BT flip flop device, a simple yet effective method for storing your circuit's state information. It has a differential output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This inverting/non-inverting device has a typical operating supply voltage of 3.3|5|9|12 V. Its minimum operating supply voltage of 3 V, while its maximum is 15 V. It has 2 channels per chip.

Specifications
EU RoHS Compliant
Logic Family HEF4000
Logic Function D-Type
Fabrication Technology CMOS
Number of Elements per Chip 2
Number of Element Inputs 1
Number of Element Outputs 1
Polarity Inverting/Non-Inverting
Triggering Type Positive-Edge
Minimum Operating Temperature (°C) -40
Number of Channels per Chip 2
Maximum Operating Temperature (°C) 125
Packaging Tape and Reel
Maximum High Level Output Current (mA) -4.2(Min)
Minimum Operating Supply Voltage (V) 3
Maximum Low Level Output Current (mA) 4.2(Min)
Maximum Operating Supply Voltage (V) 15
Typical Operating Supply Voltage (V) 3.3|5|9|12
Absolute Propagation Delay Time (ns) 220
Output Signal Type Differential
Mounting Surface Mount
Package Height (mm) 1.45(Max)
Package Length (mm) 8.75(Max)
Package Width (mm) 4(Max)
PCB changed 14
Standard Package Name SOP
Supplier Package SO
Pin Count 14
Lead Shape Gull-wing
