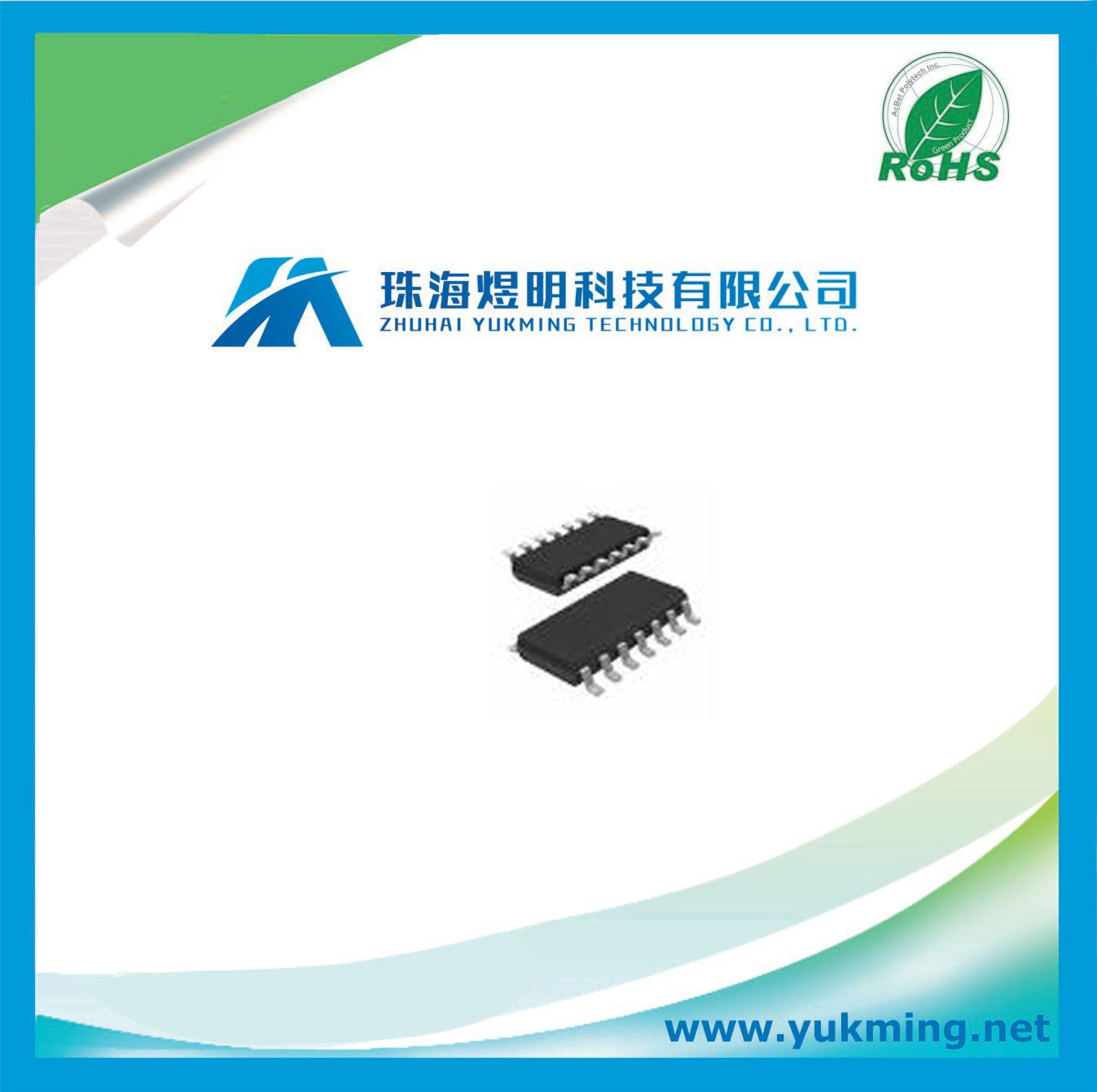

Integrated Circuit Hef4016bt of Analog Switch Multiplexers IC

Name: Integrated Circuit Hef4016bt of Analog Switch Multiplexers IC
Brand: all-electronics-online.com
SKU: 804793805
Availability: InStock
Rating: 4.8 (113 reviews)

Price:	US $ 0.145/Piece
Min Order:	2500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HEF4016BT
Number Of Channels Per Chip:	4
Number Of Inputs Per Chip:	4
Number Of Outputs Per Chip:	4

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Quadruple bilateral switches

MANUFACTURER
NXP Semiconductors

PRODUCT CATEGORY
Analog Switch Multiplexers

DESCRIPTION
Analog Switch Quad SPST 14-Pin SO Bulk

Specifications
EU RoHS Compliant
Type Analog Switch
Configuration Quad SPST
Number of Channels per Chip 4
Switch Architecture SPST
Number of Inputs per Chip 4
Number of Outputs per Chip 4
Polarity Non-Inverting
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Packaging Bulk
Maximum On Resistance (Ohm) 690@5V
Maximum Turn-On Time (ns) 80@5V
Maximum Turn-Off Time (ns) 130@5V
Maximum Power Dissipation (mW) 400
Minimum Single Supply Voltage (V) 4.5
Typical Single Supply Voltage (V) 5|9|12|15
Maximum Single Supply Voltage (V) 15.5
Power Supply Type Single
Temperature Grade Industrial
Mounting Surface Mount
Package Height (mm) 1.45(Max)
Package Length (mm) 8.75(Max)
Package Width (mm) 4(Max)
PCB changed 14
Standard Package Name SOP
Supplier Package SO
Pin Count 14
Lead Shape Gull-wing
