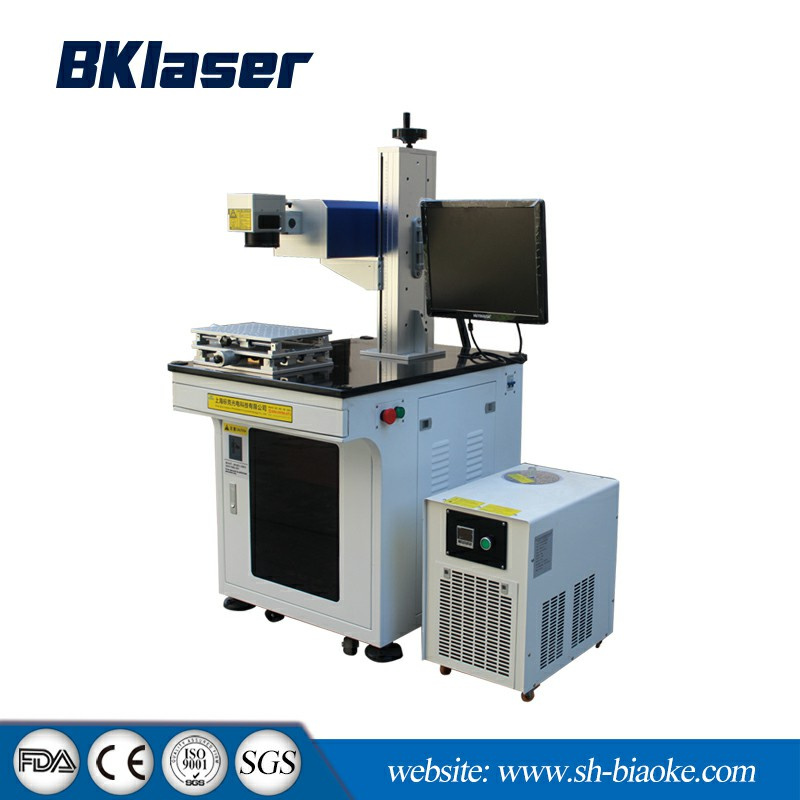

Integrated Circuit IC 355nm UV Laser Marking Machine Price

Name: Integrated Circuit IC 355nm UV Laser Marking Machine Price
Brand: all-electronics-online.com
SKU: 836261815
Availability: InStock
Rating: 4.6 (100 reviews)

Price:	US $ 12100-23000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BK-ZW
Marking Speed:	800 Standard Characters Per Second
Minimum Character:	0.15mm
Minimum Line Width:	0.005mm
Repeat Accuracy:	0.003mm
Operating Ambient Temperature:	15~35
Power Supply:	220V/Single-Phase/50Hz/<800W
Beam Quality:	M2 <1.1
Laser Module Life:	20000 Hours
Spot Diameter:	<0.01mm
Operate System:	Windowsxp

Product Description

Model	BK-ZW3W/5W/8W
Power	3W/5W/8W
Laser wavelength	355nm
Beam quality	M2 <1.1
Laser output power	0~100% (continuous and adjustable)
Laser output frequency	5KHz~80KHz (continuous and adjustable)
Power stability(8h)	<±1%rms
Pulse width	10-50ns
Spot diameter	<0.01mm
Tag type	Dynamic tag / static tag
Marking speed	800 standard characters per second
Min line width	≤0.005mm
Min character	0.15mm
Repeat accuracy	±0.003mm
Production pass rate	99.9%
Operate system	WindowsXP
Cooling method	Water-cooled
Operating ambient temperature	15ºC~35ºC
Power supply	220V/single-phase/50Hz/<800W
Laser module life	20000 hours

The main features of the product

1. laser tube life span is as long as 1,0000 hours; the cost of use and maintenance is very low; it can keep on working for a long time.
2. The software has strong compatibility.
3. It can even the figures, laminate set up parameters and preview the place of infrared light.

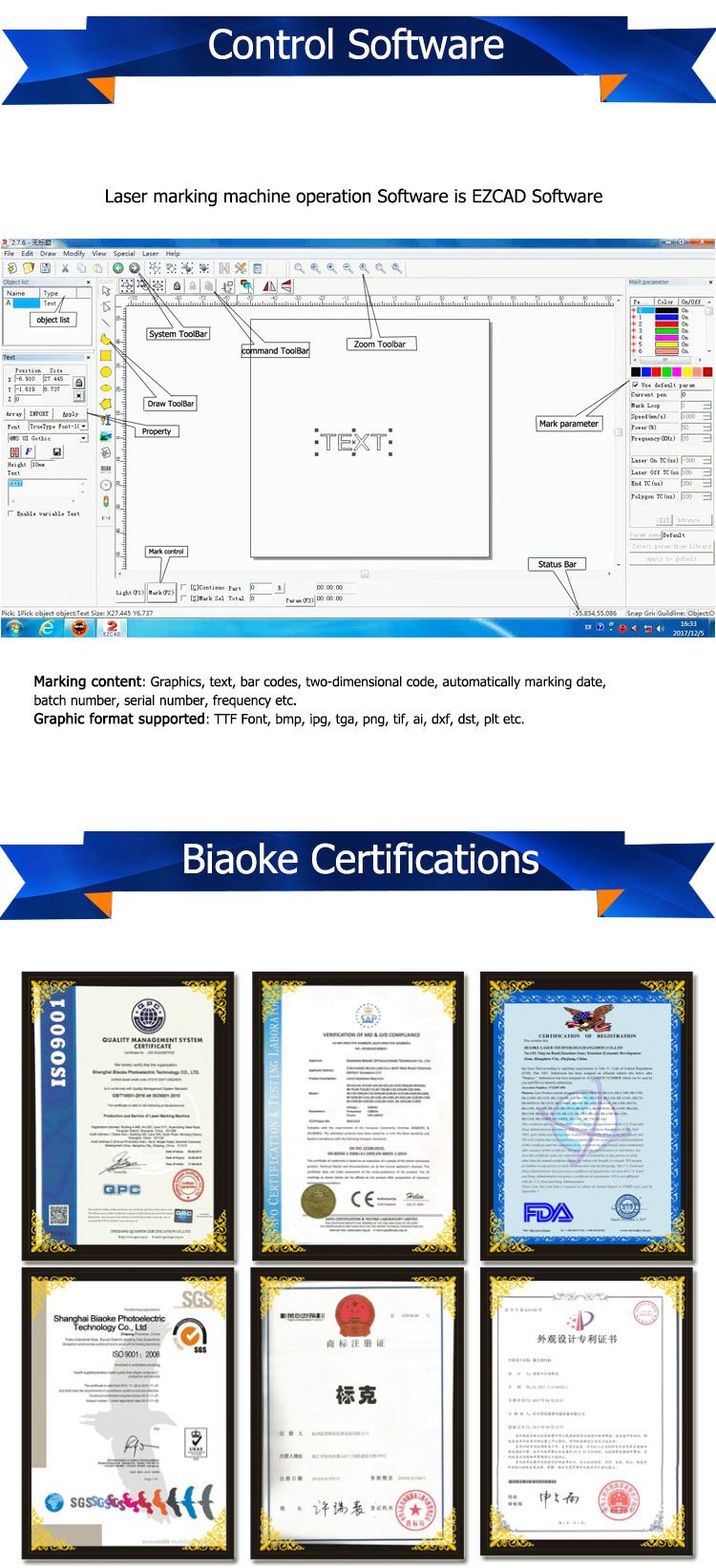

4. The software controlling system has the interface of WINDOWS, which is compatible with files output by software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc.
5. It can support graphic file formats such as PLT, PCX, DXF, BMP etc; and directly use fonts such as SHX, TTF.
6. It also can mark automatic code, sequence number, batch number date, bar code and two-dimensional code and so on.

UV Laser Marking Machine

1. Sheet metal fabrication	6. Elecrical cabinet	11. Elevator
2. Automotive parts	7. Aviation&Aerospace	12. Lighting lamps
3. Metal carfts & decoration	8. Hardware	13. Advertising
4. Furniture	9. Kitchenware equipment	14. Fitness equipment
5. Medical equipment	10. Agriculturalmachinery	15. watches & glassware

FAQ

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Main business: Laser marking machine, laser cutting machine, laser welding machine, Laser cleaning machine and a series of testing machine.

Our products exported to Japan, South Korea, Spain, Italy, Brazil, Chile, Jordan, India, Ukraine and other countries.

We have CE ISO FDA SGS Cerficate about our laser products.

We will serve better service for our company.

Welcome to join us.
