Integrated Circuit Irs2181strpbf of High and Low Driver IC

Integrated Circuit Irs2181strpbf of High and Low Driver IC
Price: US $ 1.9363/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: IRS2181STRPBF
Driver Type: High and Low Side
Driver Configuration: Non-Inverting
Peak Output Current (a)  : 2.3(Typ)
Number Of Drivers: 2
Minimum Operating Supply Voltage (V): 10
Maximum Operating Supply Voltage (V): 20
Maximum Rise Time (Ns): 60
Maximum Fall Time (Ns): 35
Maximum Turn-on Delay Time (Ns): 35
Maximum Turn-off Delay Time (Ns): 35

Product Description

Lead time2 to 3 days after receiving the payment.
Remark100% New and original ; 30 days warranty
Payment  Heng Seng Bank (Hong Kong), Paypal,
ShipmentDHL ,TNT ,FEDEX, UPS or any other express

High and Low Driver


Features
· Floating channel designed for bootstrap operation
· Fully operational to +600 V
· Tolerant to negative transient voltage, dV/dt
immune
· Gate drive supply range from 10 V to 20 V
· Undervoltage lockout for both channels
· 3.3 V and 5 V input logic compatible
· Matched propagation delay for both channels
· Logic and power ground +/- 5 V offset
· Lower di/dt gate driver for better noise immunity
· Output source/sink current capability 1.4 A/1.8 A
· RoHS compliant

Specifications
EU RoHS                                                                  Compliant
Driver Type                                                         High and Low Side
Driver Configuration                                                Non-Inverting
Peak Output Current (A)                                             2.3(Typ)
Number of Drivers                                                            2
Minimum Operating Supply Voltage (V)                           10
Maximum Operating Supply Voltage (V)                           20
Input Logic Compatibility                               CMOS|LSTTL|3.3V(Min)|5V
Maximum Rise Time (ns)                                                  60
Maximum Fall Time (ns)                                                   35
Maximum Turn-On Delay Time (ns)                                35
Maximum Turn-Off Delay Time (ns)                                35
Minimum Operating Temperature (°C)                           -40
Maximum Operating Temperature (°C)                           125

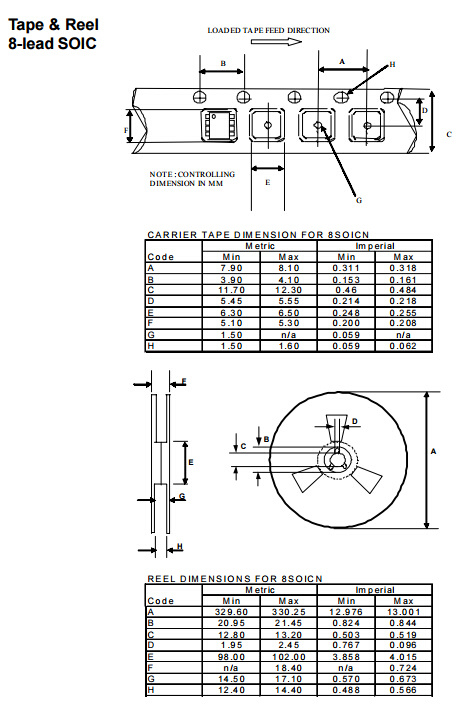

Packaging                                                              Tape and Reel
Maximum Propagation Delay Time (ns)                          330
Maximum Power Dissipation (mW)                                  625

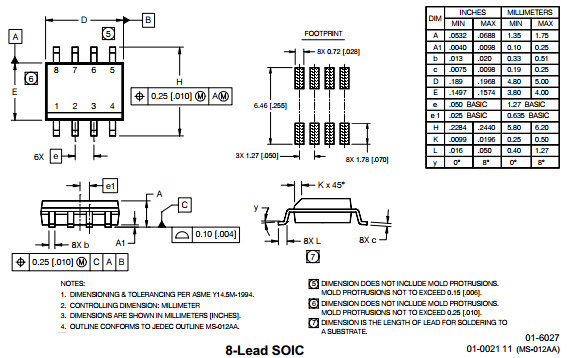

Mounting                                                                Surface Mount
Package Height (mm)                                                  1.5(Max)
Package Length (mm)                                                  5(Max)
Package Width (mm)                                                    4(Max)
PCB changed                                                                 8
Standard Package Name                                               SOP
Supplier Package                                                           SOIC
Pin Count                                                                        8
Lead Shape                                                              Gull-wing
