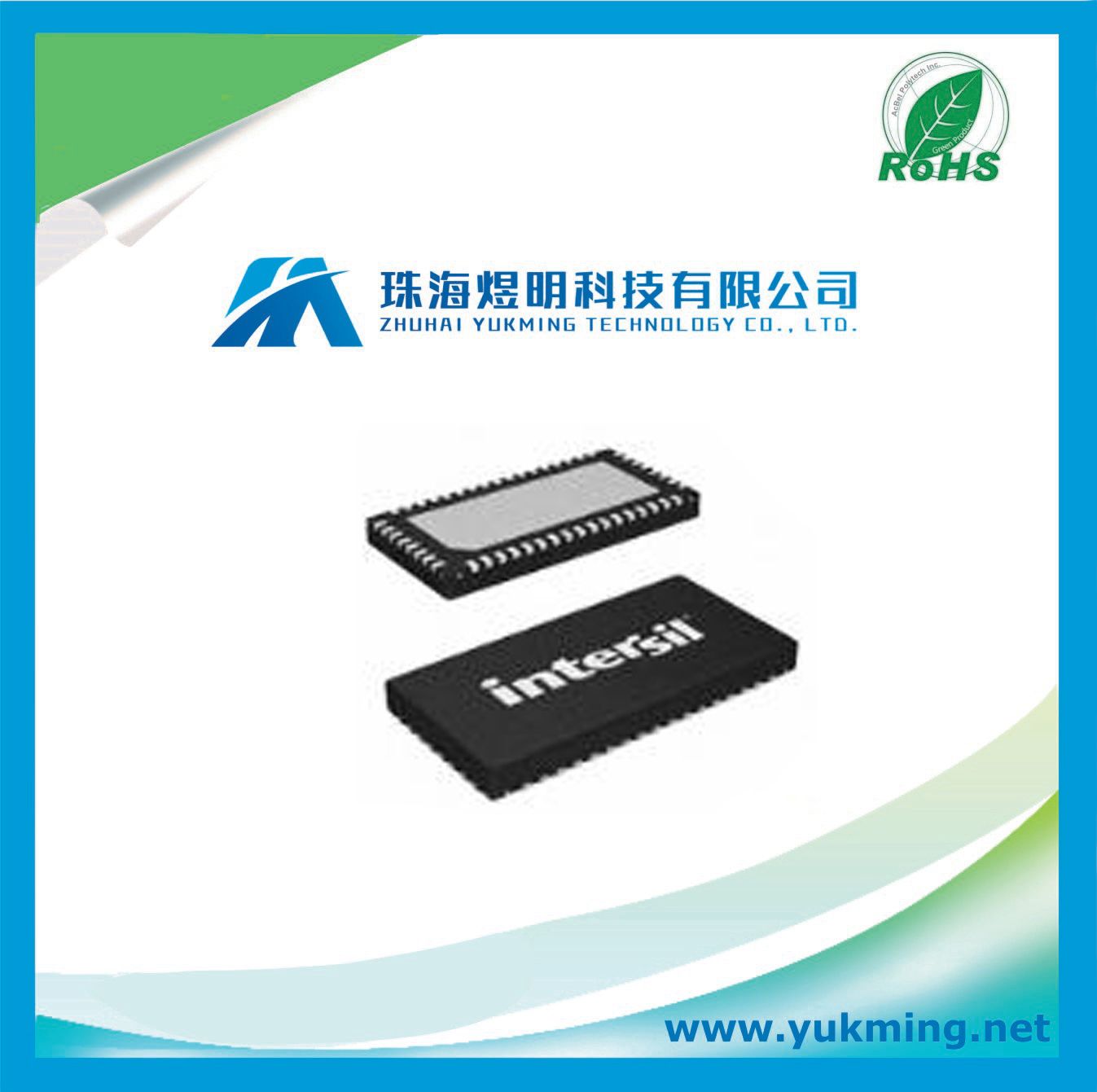

Integrated Circuit Isl65426hrz of Buck Regulator IC

Name: Integrated Circuit Isl65426hrz of Buck Regulator IC
Brand: all-electronics-online.com
SKU: 799604355
Availability: InStock
Rating: 4.3 (127 reviews)

Price:	US $ 2.432/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ISL65426HRZ
High Efficiency:	up to 95%
Fixed Frequency:	1MHz
Operates Supply:	2.375V to 5.5V
Output:	0.6V to 4.0V
Number Of Element Inputs:	2-in
Number Of Outputs:	2
Output Configuration:	Positive

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

6A Dual Synchronous Buck Regulator with Integrated MOSFETs

Features
• High Efficiency: Up to 95%
• Fixed Frequency: 1MHz
• Operates From 2.375V to 5.5V Supply
• ±1% Reference
• Flexible Output Voltage Options
- Programmable 2-Bit VID Input
- Adjustable Output From 0.6V to 4.0V
• User-Partitioned Power Blocks
• Ultra-Compact DC/DC Converter Design
• PWMs Synchronized 180° Out of Phase
• Independent Enable Inputs and System Enable
• Stable All Ceramic Solutions
• Excellent Dynamic Response
• Independent Output Digital Soft-Start
• Power Good Output Voltage Monitor
• Short-Circuit and Thermal-Overload Protection
• Overcurrent and Undervoltage Protection
• Pb-Free Plus Anneal Available (RoHS Compliant)

Applications
• FPGA, CPLD, DSP, and CPU Core and I/O Voltages
- Xilinx Spartan IIITM, Virtex IITM, Virtex II ProTM,
Virtex 4TM
- Altera StratixTM, Stratix IITM, CycloneTM, Cyclone IITM
- Actel FusionTM, LatticeSCTM, LatticeECTM
• Low-Voltage, High-Density Distributed Power Systems
• Point-of-Load Regulation
• Distributed Power Systems
• Set-Top Boxes

Category Integrated Circuits (ICs)
Family PMIC - Voltage Regulators - DC DC Switching Regulators
Manufacturer Intersil
Series -
Packaging Tube
Part Status Active
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 2
Voltage - Input (Min) 3V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1V
Voltage - Output (Max) 4V
Current - Output 6A
Frequency - Switching 1MHz
Synchronous Rectifier Yes
Operating Temperature -10°C ~ 125°C (TJ)
Mounting Type Surface Mount

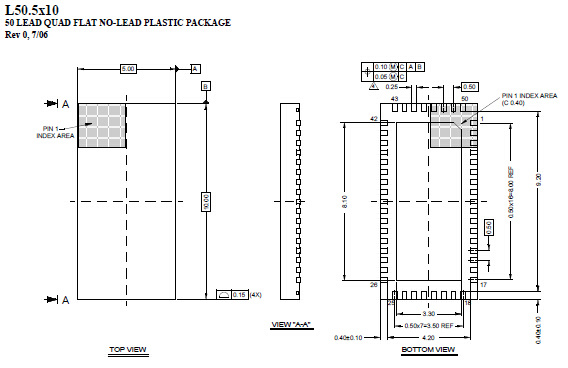

Package / Case 50-VFQFN Exposed Pad
Supplier Device Package 50-QFN (5x10)
