Integrated Circuit Isl94208irz of Pmic - Battery Management IC

Prod Model:	ISL94208IRZ
Category:	Pmic - Battery Management
Function:	Power Management
Battery Chemistry:	Lithium-Ion
Number Of Cells:	4~6
Operating Temperature Range:	-40 to 85 Degree C

Product Description

Categories	Integrated Circuits (ICs)
	PMIC - Battery Management
Manufacturer	Intersil
Packaging	Tube
Part Status	Active
Function	Power Management
Battery Chemistry	Lithium-Ion
Number of Cells	4 ~ 6
Fault Protection	Over Current, Over Temperature, Short Circuit
Interface	I²C
Operating Temperature	-40°C ~ 85°C (TA)

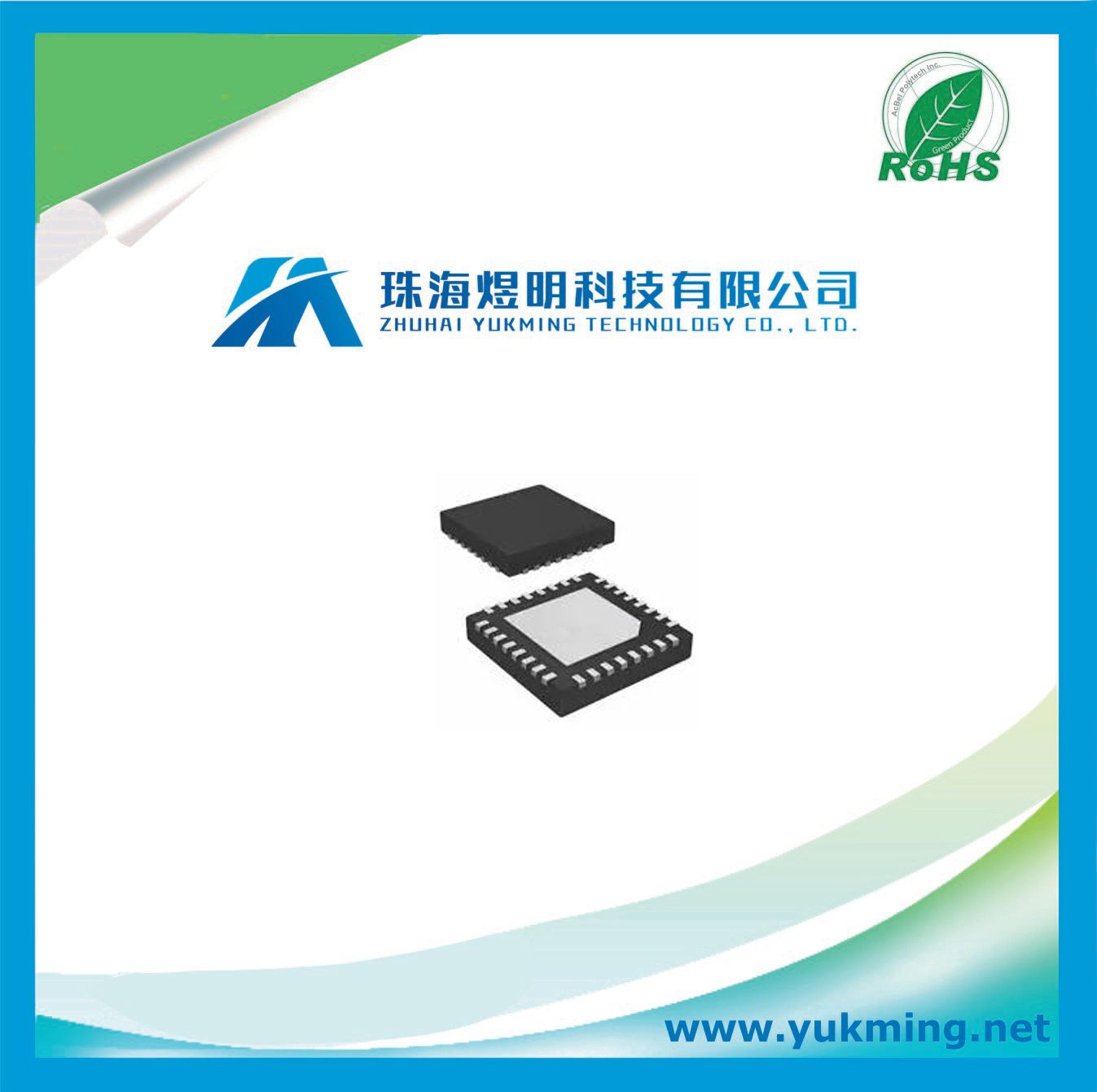

Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-QFN (5x5)


The ISL94208 battery management IC is designed for use with
a microcontroller and features an analog front-end with
overcurrent protection for multi-cell Li-ion battery packs. The
ISL94208 supports battery packs consisting of 4 to 6 cells in
series and one or more cells in parallel.
Using an internal analog multiplexer, the ISL94208 allows a
separate microcontroller with an A/D converter to monitor
each cell voltage plus internal and external temperature.
The ISL94208 provides integral overcurrent and short circuit
protection circuitry, an internal 3.3V voltage regulator, internal
cell balancing switches, and drive circuitry for external FET
devices for control of pack charge and discharge.

Features
• Software selectable overcurrent protection levels and
variable protect detection times
- 4 discharge overcurrent thresholds
- 4 short circuit thresholds
- 4 charge overcurrent thresholds
- 8 overcurrent delay times (charge)
- 8 overcurrent delay times (discharge)
- 2 short circuit delay times (discharge)
• Automatic FET turn-off and cell balance disable on reaching
external (battery) or internal (IC) temperature limit
• Automatic cell balance turn off on IC over-temperature
• Integrated charge/discharge FET drive circuitry
• Internal cell balancing FETs handle up to 200mA of
balancing current for each cell
• Sleep operation with negative or positive edge wake-up
• <10µA Sleep mode

Applications
• Power tools
• Portable equipment
• Battery backup systems
• Military electronics
