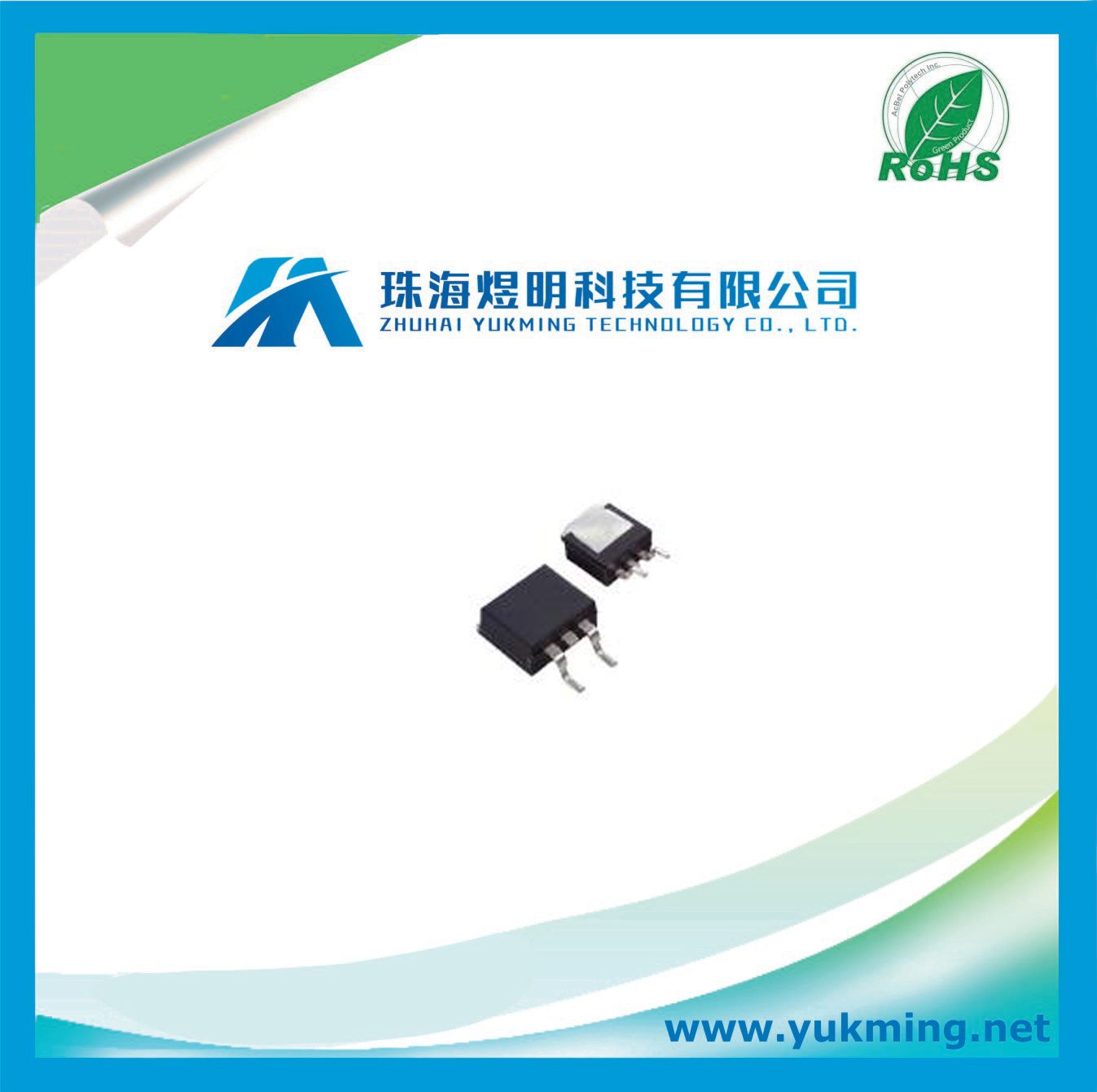

Integrated Circuit L4940d2t5-Tr of Ldo Linear Regulator IC

Prod Model:	L4940D2T5-TR
Output Voltage Tolerance (Lm317A):	1%

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
STMicroelectronics

PRODUCT CATEGORY
Linear Regulator

DESCRIPTION
LDO Regulator Pos 5V 1.5A 3-Pin(2+Tab) D2PAK T/R

Maintain a steady voltage level with this LDO L4940D2T5-TR linear regulator from STMicroelectronics. Its typical dropout voltage at current is 0.2@500mA|0.5@1500mA V. This voltage regulation device's single output can produce a current up to 1.5 A. The best way to provide power to your application is by using this, which needs a voltage lower than 17 V. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 25mV and line regulation of 10mV your circuit is capable of maintaining a constant voltage level at your output. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 150 °C. Its polarity is positive. The maximum dropout voltage is 0.4@500mA|0.9@1500mA V.

Specifications
EU RoHS Compliant
Type LDO
Number of Outputs 1
Output Type Fixed
Output Voltage (V) 5
Polarity Positive
Maximum Output Current (A) 1.5
Maximum Input Voltage (V) 17
Typical Dropout Voltage @ Current (V) 0.2@500mA|0.5@1500mA
Maximum Dropout Voltage @ Current (V) 0.4@500mA|0.9@1500mA
Line Regulation 10mV
Load Regulation 25mV
Maximum Quiescent Current (mA) 8
Special Features Current Limit|Reverse Polarity Protection|Safe Area Protection|Short Circuit Protection|Thermal
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Mounting Surface Mount
Package Height (mm) 4.6(Max)
Package Length (mm) 10.4(Max)
Package Width (mm) 9.35(Max)
PCB changed 2
Tab Tab
Standard Package Name TO-263
Supplier Package D2PAK
Pin Count 3
Lead Shape Gull-wing
