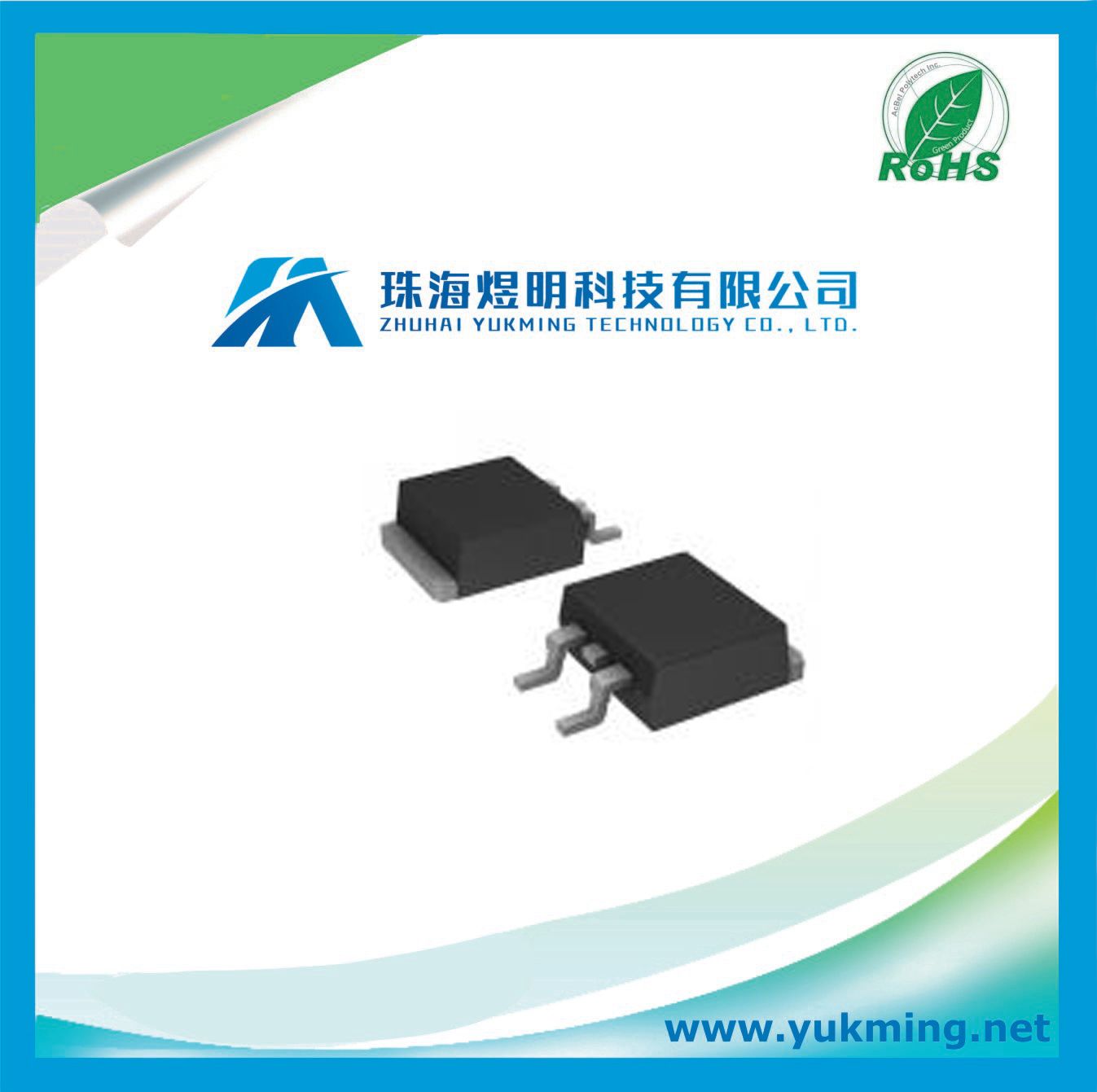

Integrated Circuit L7812c2t of Positive Voltage Regulator IC

Name: Integrated Circuit L7812c2t of Positive Voltage Regulator IC
Brand: all-electronics-online.com
SKU: 799583065
Availability: InStock
Rating: 4.4 (62 reviews)

Price:	US $ 1.3378/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L7812C2T
Family:	Positive Voltage Regulator
Output Current:	1.5A
Output Voltages:	5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V
Feature 1:	Thermal Overload Protection
Feature 2:	Short Circuit Protection
Feature 3:	Output Transition Soa Protection

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

FEATURE
OUTPUT CURRENT TO 1.5A
OUTPUT VOLTAGES OF 5; 5.2; 6; 8; 8.5; 9;
10; 12; 15; 18; 24V
THERMAL OVERLOAD PROTECTION
SHORT CIRCUIT PROTECTION
OUTPUT TRANSITION SOA PROTECTION

DESCRIPTION
The L7800 series of three-terminal positive
regulators is available in TO-220, TO-220FP,
TO-220FM, TO-3 and D2PAK packages and
several fixed output voltages, making it useful in a
wide range of applications. These regulators can
provide local on-card regulation, eliminating the
distribution problems associated with single point
regulation. Each type employs internal current
limiting, thermal shut-down and safe area
protection, making it essentially indestructible. If
adequate heat sinking is provided, they can
deliver over 1A output current. Although designed
primarily as fixed voltage regulators, these
devices can be used with external components to
obtain adjustable voltage and currents.
