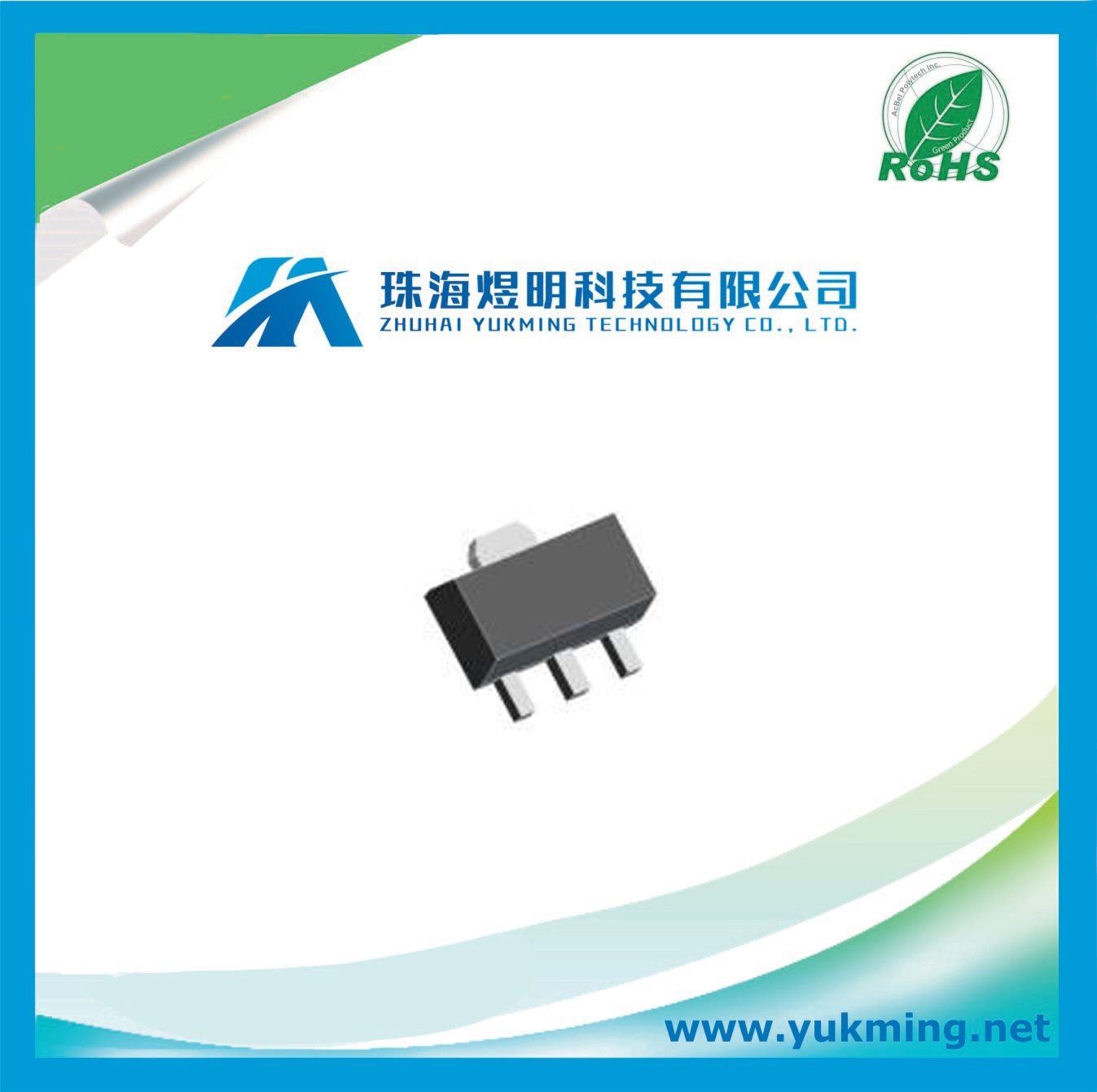

Integrated Circuit L79L15acutr of Negative Voltage Regulator IC

Prod Model:	L79L15ACUTR
Family:	Pmic - Voltage Regulators - Linear
Part Status:	Active
Voltage - Output:	-15V
Current - Output:	100mA
Voltage - Dropout (Typical):	1.7V @ 40mA
Number Of Regulators:	1
Voltage - Input:	Down to -35V

Product Description

Negative voltage regulators

Features
Output current up to 100 mA
Output voltages of -5; -6; -8; -9; -12; -15V
Thermal overload protection
Short circuit protection
No external components are required
Available in either ±5% (AC) or ±10% (C)
Selection

Description
The L79Lxx series of three-terminal negative
regulators employ internal current limiting and
thermal shutdown, making them essentially
indestructible. If adequate heat-sink is provided,
they can deliver up to 100 mA output current.
They are intended as fixed voltage regulators in a
wide range of applications including local or oncard
regulation for elimination of noise and
distribution problems associated with single-point
regulation. In addition, they can be used with
power pass elements to make high-current
voltage regulators.
The L79Lxx series used as Zener diode/resistor
combination replacement, offers an effective
output impedance improvement of typically two
orders of magnitude, along with lower quiescent
current and lower noise.


Category	Integrated Circuits (ICs)
Family	PMIC - Voltage Regulators - Linear
Manufacturer	STMicroelectronics
Packaging	Tape & Reel (TR)
Part Status	Active
Regulator Topology	Negative Fixed
Voltage - Output	-15V
Current - Output	100mA
Voltage - Dropout (Typical)	1.7V @ 40mA
Number of Regulators	1
Voltage - Input	Down to -35V
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	SOT-89-3
