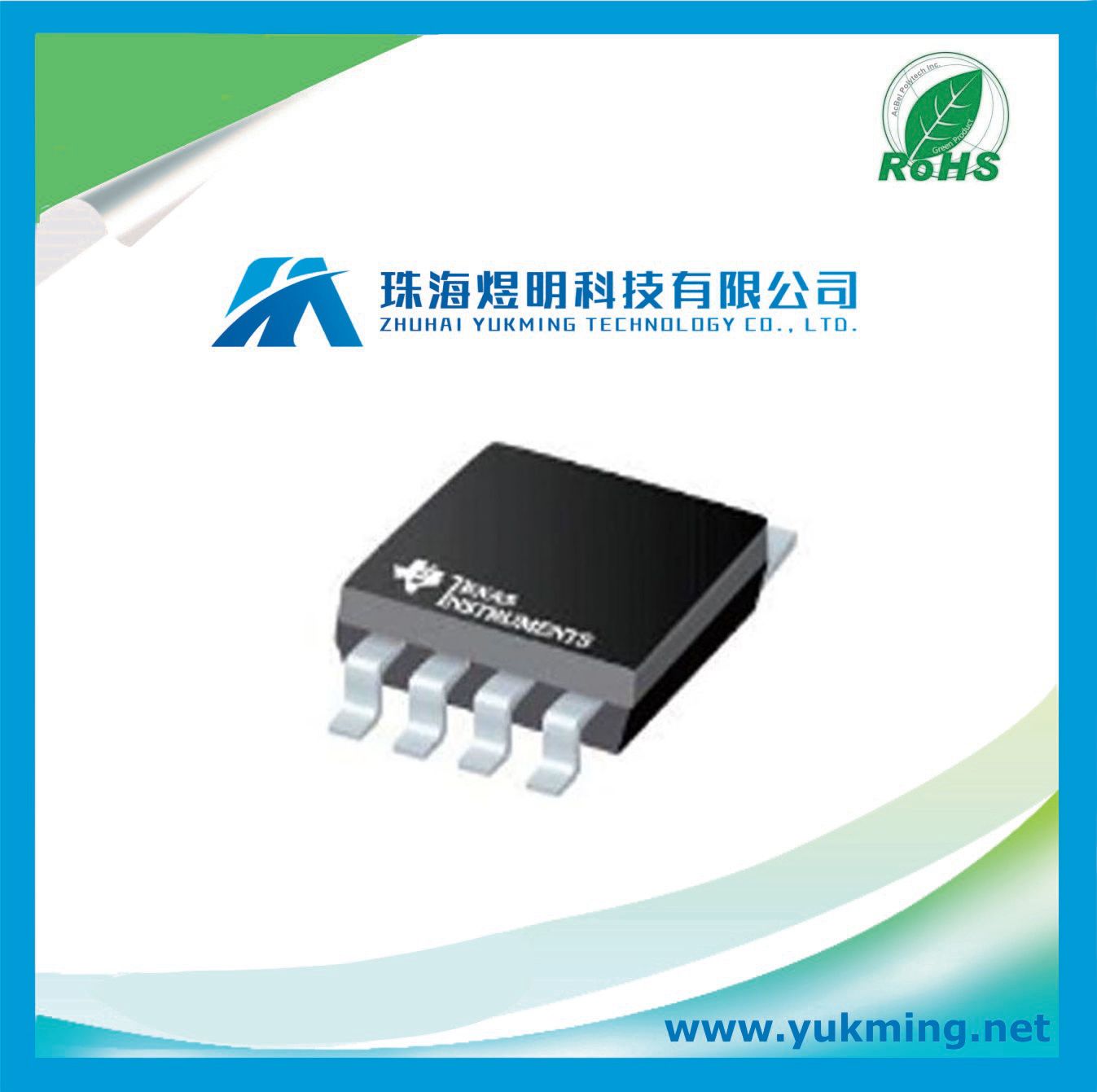

Integrated Circuit Lm258dr of Operational Amplifier IC Texas Instruments

Name: Integrated Circuit Lm258dr of Operational Amplifier IC Texas Instruments
Brand: all-electronics-online.com
SKU: 796533475
Availability: InStock
Rating: 4.7 (68 reviews)

Price:	US $ 0.084/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM258DR
Number Of Channels Per Chip:	2
Typical Gain Bandwidth Product (MHz):	0.7
Operating Temperature Range:	-25 to 85 Degree C

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
OP Amp

DESCRIPTION
OP Amp Dual GP

The infinite open-loop gain, high input impedance and low output impedance of this general purpose amplifier LM258DR OP amp from Texas Instruments produces a large amount of gain. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±1.5 V and maximum of ±16 V. This op amp has a temperature range of -25 °C to 85 °C. This device uses one or two power supplies. It has 2 channels per chip. This device utilizes bipolar technology.

Specification
EU RoHS Compliant
Manufacturer Type High Gain Amplifier
Type General Purpose Amplifier
Number of Channels per Chip 2
Technology Bipolar
Rail to Rail No
Typical Gain Bandwidth Product (MHz) 0.7
Maximum Input Offset Voltage (mV) 5@30V
Maximum Input Offset Current (uA) 0.03@5V
Maximum Input Bias Current (uA) 0.15@5V
Minimum Operating Temperature (°C) -25
Maximum Operating Temperature (°C) 85
Packaging Tape and Reel
Maximum Single Supply Voltage (V) 32
Maximum Dual Supply Voltage (V) ±16
Typical Slew Rate (V/us) 0.3@±15V
Shut Down Support No
Minimum Single Supply Voltage (V) 3
Typical Single Supply Voltage (V) 5|9|12|15|18|24|28
Minimum Dual Supply Voltage (V) ±1.5
Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
Minimum CMRR (dB) 70
Typical Voltage Gain (dB) 100
Power Supply Type Single|Dual
Temperature Grade Commercial
Mounting Surface Mount
Package Height (mm) 1.5(Max)
Package Length (mm) 5(Max)
Package Width (mm) 4(Max)
PCB changed 8
Standard Package Name SOP
Supplier Package SOIC
Pin Count 8
Lead Shape Gull-wing

Wide Supply Range:
   − Single Supply . . . 3 V to 32 V
     (26 V for LM2904)
   − or Dual Supplies . . . 1.5 V to 16 V
     (13 V for LM2904)
Low Supply-Current Drain, Independent of
   Supply Voltage . . . 0.7 mA Typ
Common-Mode Input Voltage Range
   Includes Ground, Allowing Direct Sensing
Near Ground
Low Input Bias and Offset Parameters:
   − Input Offset Voltage . . . 3 mV Typ
     A Versions . . . 2 mV Typ
   − Input Offset Current . . . 2 nA Typ
   − Input Bias Current . . . 20 nA Typ
     A Versions . . . 15 nA Typ
Differential Input Voltage Range Equal to
   Maximum-Rated Supply Voltage . . . 32 V
   (26 V for LM2904)
Open-Loop Differential Voltage
    Amplification . . . 100 V/mV Typ
Internal Frequency Compensation
