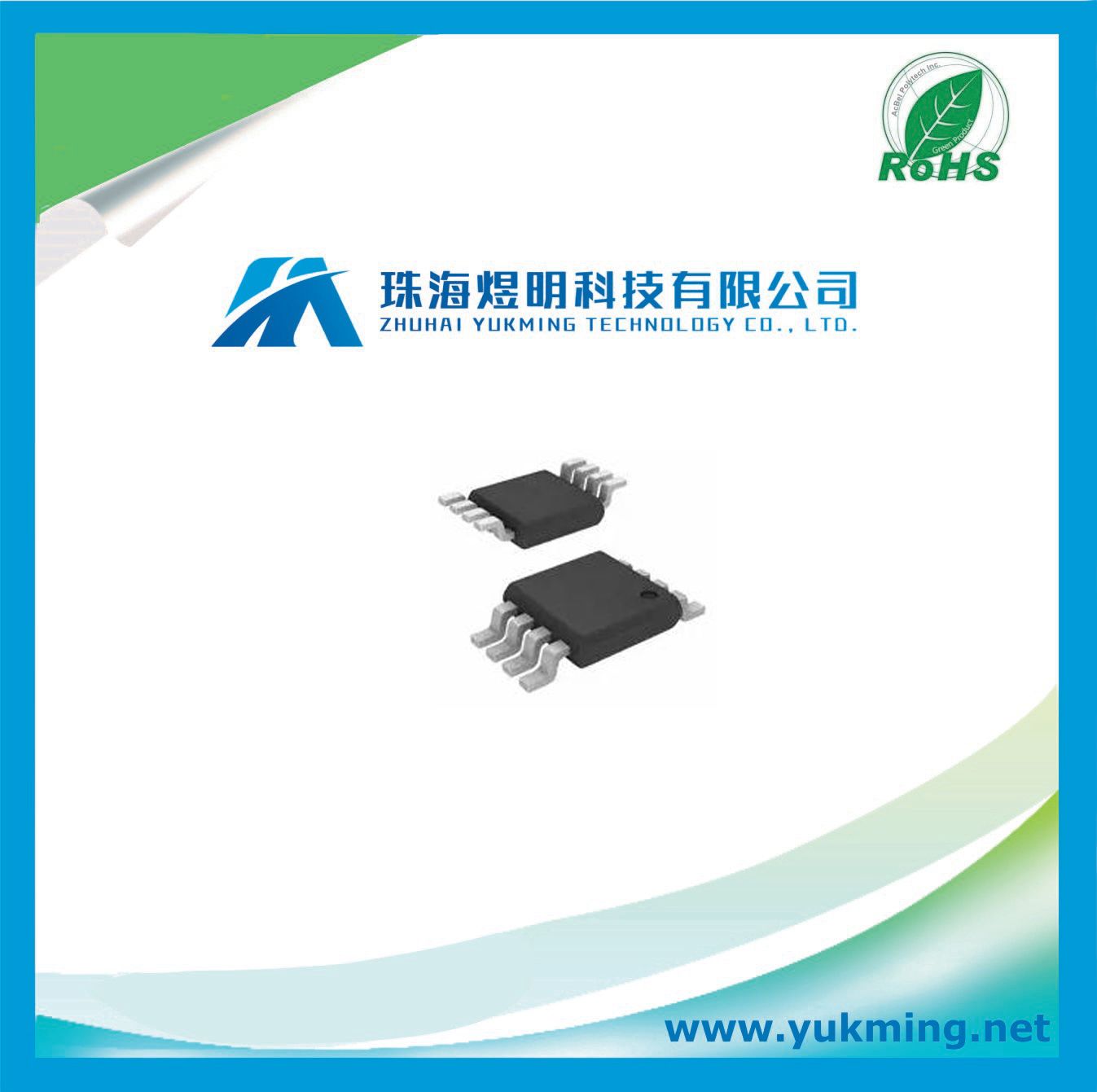

Integrated Circuit Lm2903avqpwr of Linear Comparator IC

Prod Model:	LM2903AVQPWR
Packing:	Digi-Reel
Part Status:	Active
Differential:	Type
Number Of Elements:	2
Output Type:	CMOS, MOS, Open-Collector, Ttl
Voltage - Supply, Single/Dual (+/-):	2 V ~ 36 V, +/-1 V ~ 18 V
Current - Output (Typ):	20mA
Current - Quiescent (Max):	2.5mA

Product Description

Categories	Integrated Circuits (ICs)
	Linear - Comparators
Manufacturer	Texas Instruments
Packaging	Digi-Reel
Part Status	Active
Type	Differential
Number of Elements	2
Output Type	CMOS, MOS, Open-Collector, TTL
Voltage - Supply, Single/Dual (+/-)	2 V ~ 36 V, +/-1 V ~ 18 V
Voltage - Input Offset (Max)	2mV @ 5V
Current - Input Bias (Max)	0.25 uA @ 5V
Current - Output (Typ)	20mA
Current - Quiescent (Max)	2.5mA
Operating Temperature	-40 degree C ~ 125 degree C
Package / Case	8-TSSOP (0.173", 4.40mm Width)
Mounting Type	Surface Mount
Supplier Device Package	8-TSSOP


Single Supply or Dual Supplies
Wide Range of Supply Voltage
− Max Rating ...2 V to 36 V
− Tested to 30 V . . . Non-V Devices
− Tested to 32 V ...V-Suffix Devices
Low Supply-Current Drain Independent of
Supply Voltage . . . 0.4 mA Typ Per
Comparator
Low Input Bias Current . . . 25 nA Typ
Low Input Offset Current ...3 nA Typ
(LM193)
Low Input Offset Voltage ...2 mV Typ
Common-Mode Input Voltage Range
Includes Ground
Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage . . .
±36 V
Low Output Saturation Voltage
Output Compatible With TTL, MOS, and
CMOS

Description/ordering information
These devices consist of two independent voltage
comparators that are designed to operate from a
single power supply over a wide range of voltages.
Operation from dual supplies also is possible as
long as the difference between the two supplies is
2 V to 36 V, and VCC is at least 1.5 V more positive
than the input common-mode voltage. Current drain is
independent of the supply voltage. The outputs
 can be connected to other open-collector outputs to achieve
wired-AND relationships.The LM193 is characterized for
operation from −55°C to 125°C. The LM293 and LM293A
are characterized for operation from −25°C to 85°C.
The LM393 and LM393A are characterized for operation
from 0°C to 70°C. The LM2903 is characterized for operation
from −40°C to 125°C.
