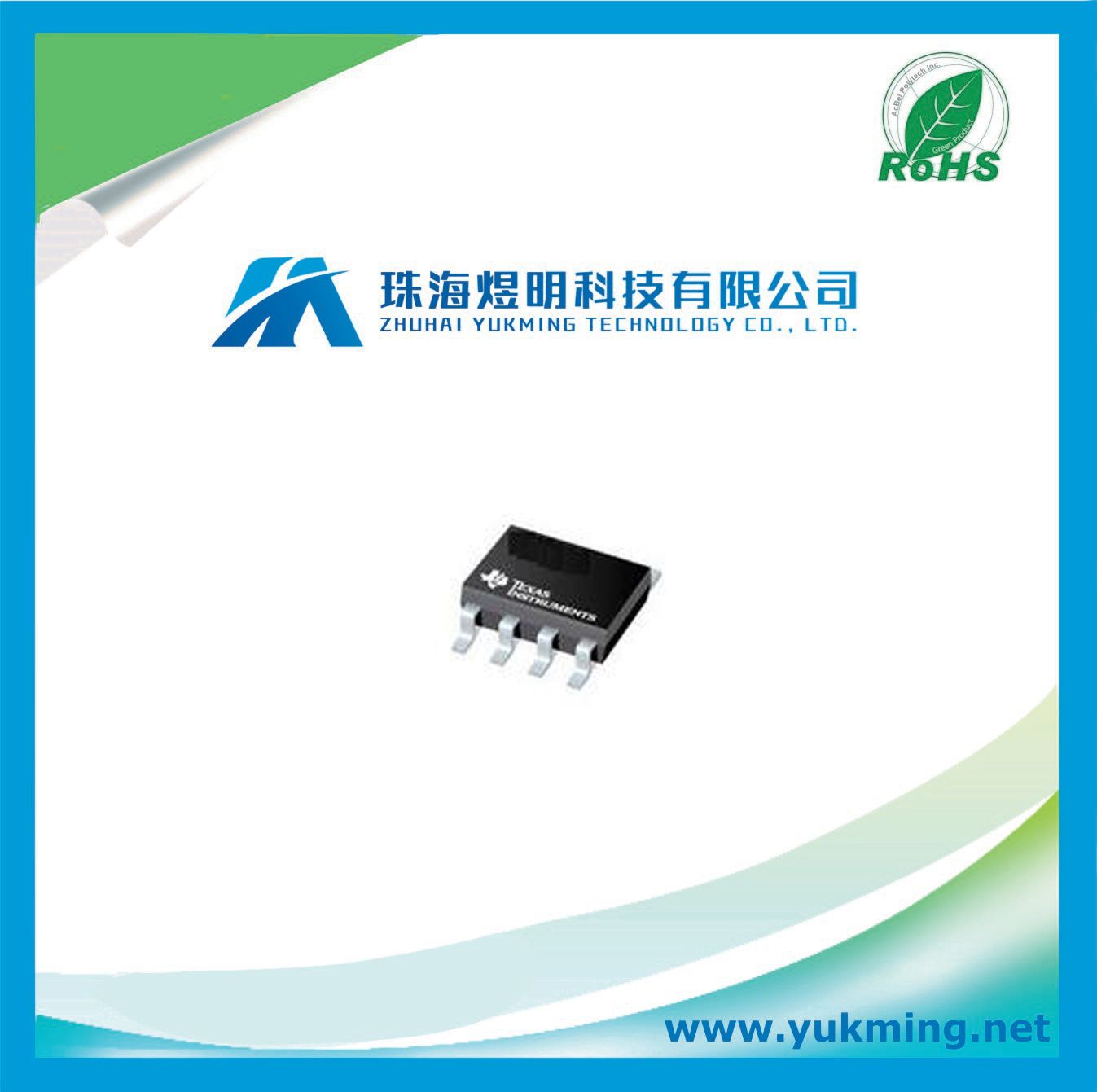

Integrated Circuit Lm393dr of Comparator IC

Prod Model:	LM393DR

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Comparator

DESCRIPTION
Comparator Dual ±15V/30V 8-Pin SOIC T/R

Easily compare input currents and voltages in your electronic circuit design with the addition of this LM393DR comparator circuit from Texas Instruments. It has an open collector output. Its typical dual supply voltage is ±3|±5|±9|±12 V, with a minimum of ±1 V and maximum of ±15 V. This comparator has a temperature range of 0 °C to 70 °C. This device uses one or two power supplies. It has 2 channels per chip. This device utilizes bipolar technology.

Specifications
EU RoHS Compliant
Manufacturer Type Differential Comparator
Number of Channels per Chip 2
Maximum Quiescent Current (mA) 1@5V
Rail to Rail No
Technology Bipolar
Output Type Open Collector
Maximum Input Offset Voltage (mV) 5@30V
Maximum Input Bias Current (uA) 0.25@5V
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 70
Packaging Tape and Reel
Maximum Single Supply Voltage (V) 30
Typical Voltage Gain (dB) 106.02
Minimum Single Supply Voltage (V) 2
Power Supply Type Single|Dual
Typical Single Supply Voltage (V) 3|5|9|12|15|18|24|28
Typical Response Time (us) 1.3
Minimum Dual Supply Voltage (V) ±1
Typical Dual Supply Voltage (V) ±3|±5|±9|±12
Maximum Dual Supply Voltage (V) ±15
Temperature Grade Commercial
Mounting Surface Mount
Package Height (mm) 1.5(Max)
Package Length (mm) 5(Max)
Package Width (mm) 4(Max)
PCB changed 8
Standard Package Name SOP
Supplier Package SOIC
Pin Count 8
Lead Shape Gull-wing
