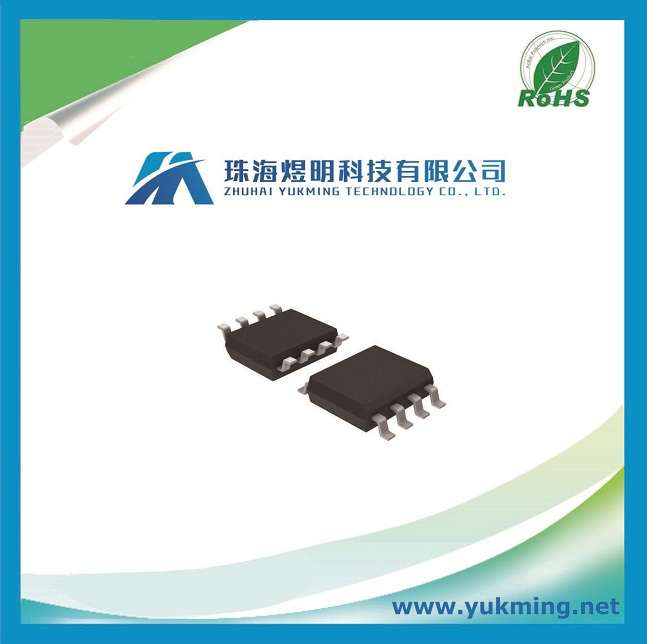

Integrated Circuit Lm4871mx of 3W Audio Power Amplifier IC

Name: Integrated Circuit Lm4871mx of 3W Audio Power Amplifier IC
Brand: all-electronics-online.com
SKU: 800647315
Availability: InStock
Rating: 4.9 (79 reviews)

Price:	US $ 0.4556/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM4871MX
Speaker AMP Type:	Class-Ab
Speaker Channels:	Mono
Output Power (W):	3
Psrr(dB):	60
Input Type:	Analog Input
Maximum Input Voltage (V):	9
Operating Temperature Range(ºC):	-40 to 85

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

3W Audio Power Amplifier with Shutdown Mode

Description
The LM4871 is a mono bridged audio power amplifier capable of delivering 3W of continuous average power into a 3Ω load with less than 10% THD when powered by a 5V power supply (see Note). To conserve power in portable applications, the LM4871's micropower shutdown mode (IQ = 0.6µA, typ) is activated when VDD is applied to the SHUTDOWN pin.

Boomer audio power amplifiers are designed specifically to provide high power, high fidelity audio output. They require few external components and operate on low supply voltages from 2.0V to 5.5V. Since the LM4871 does not require output coupling capacitors, bootstrap capacitors, or snubber networks, it is ideally suited for low-power portable systems that require minimum volume and weight.

Additional LM4871 features include thermal shutdown protection, unity-gain stability, and external gain set.

Note: An LM4871LD that has been properly mounted to a circuit board will deliver 3W into 3Ω (at 10% THD). The other package options for the LM4871 will deliver 1.5W into 8Ω (at 10% THD). See the section for further information concerning the LM4871LD, LM4871MM, LM4871M, and the LM4871N.

Features
No Output Coupling Capacitors, Bootstrap Capacitors, or
  Snubber Circuits Required
Unity-gain Stable

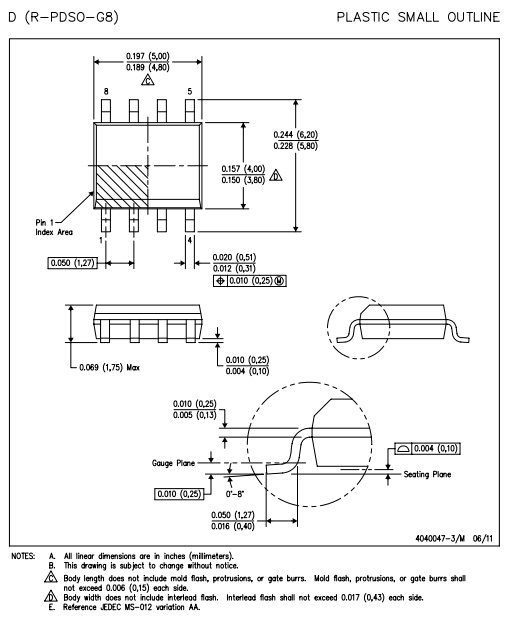

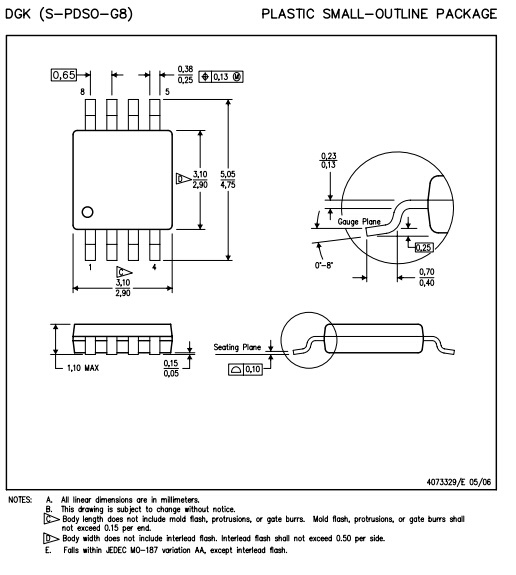

WSON, VSSOP, SOIC, or PDIP Packaging
External Gain Configuration Capability
Pin Compatible with the LM4861

Key Specifications
PO at 10% THD+N, 1kHz
  LM4871LD: 3Ω , 4Ω Loads; 3W (typ),
2.5 W (typ)
  All other LM4871 Packages: 8Ω load
1.5 W (typ)
Shutdown Current 0.6µA (typ)
Supply Voltage Range 2.0V to 5.5 V
THD at 1kHz at 1W Continuous Average Output Power into 8Ω 0.5% (max)

Parameters

	LM4871
Speaker Amp Type	Class-AB
Speaker Channels	Mono
Output Power (W)	3
PSRR(dB)	60
Input Type	Analog Input
Rating	Catalog
Operating Temperature Range(ºC)	-40 to 85
