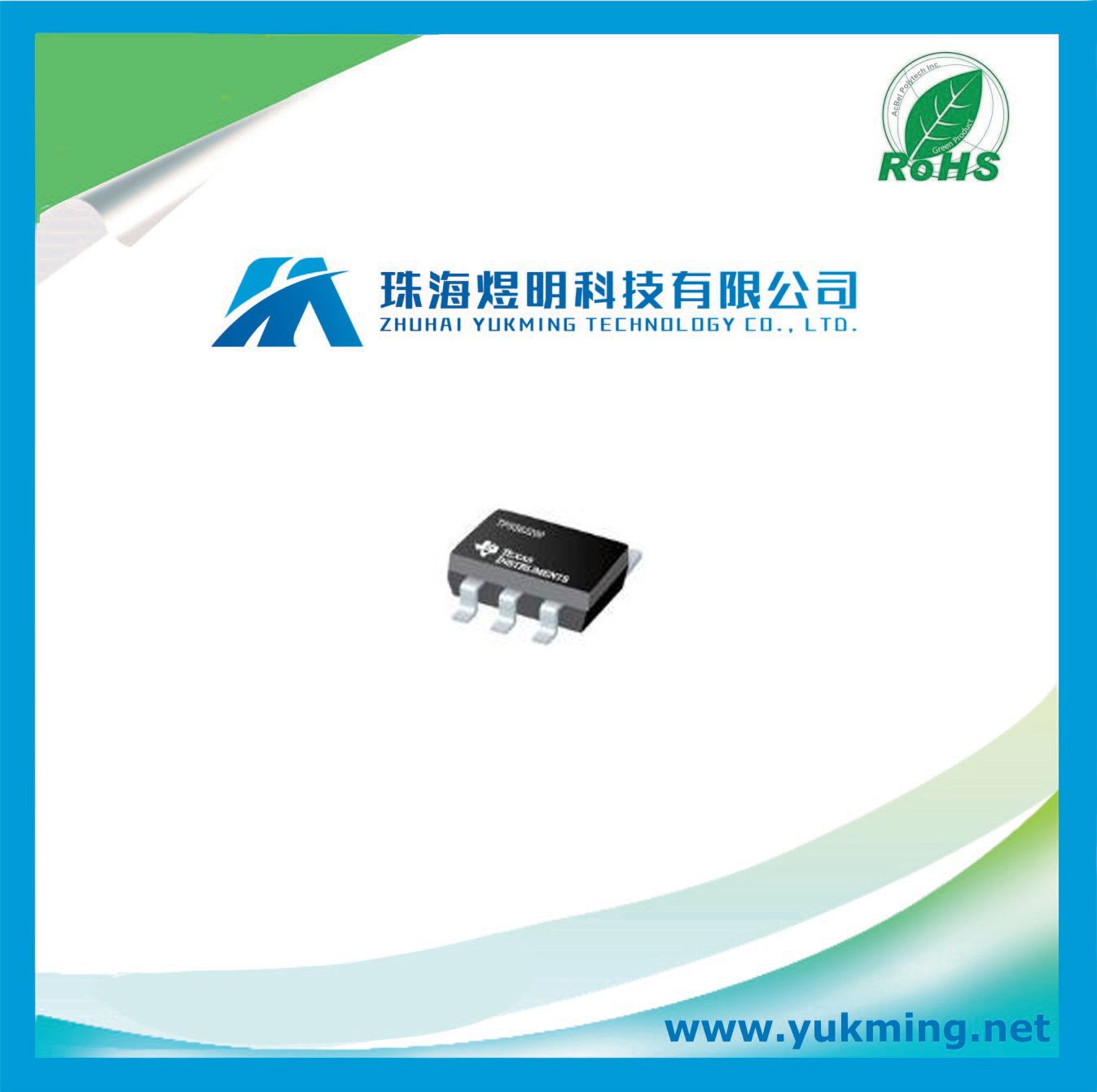

Integrated Circuit LMR14203xmke/Nopb of Converter and Switching Regulator IC

Prod Model:	LMR14203XMKE/NOPB
Operating Temperature Range:	-40 to 125 Degree C
Number Of Outputs:	1
Output Voltage (V):	0.765 to 34
Maximum Output Current (a):	0.3
Minimum Input Voltage (V):	4.5
Maximum Input Voltage (V):	42

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
DC to DC Converter and Switching Regulator Chip

DESCRIPTION
Conv DC-DC 4.5V to 42V Step Down Single-Out 0.765V to 34V 0.3A 6-Pin TSOT-23 T/R

Adjust the voltage level of your devices with this step down LMR14203XMKE/NOPB DC to DC converter from Texas Instruments. This converter's single output can produce a current up to 0.3 A. By only needing an input voltage of 4.5 V with a maximum of 42 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 0.765 to 34 V, this is power management at its best. You can operate this at a switching frequency of 1250(Typ) kHz. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This converter has an operating temperature range of -40 °C to 125 °C.

Specifications
EU RoHS Compliant
Type Step Down
Number of Outputs 1
Output Type Adjustable
Output Voltage (V) 0.765 to 34
Maximum Output Current (A) 0.3
Minimum Input Voltage (V) 4.5
Maximum Input Voltage (V) 42
Switching Regulator Yes
Switching Frequency (kHz) 1250(Typ)
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Packaging Tape and Reel
Typical Quiescent Current (uA) 1350
Mounting Surface Mount
Package Height (mm) 1(Max)
Package Length (mm) 3.05(Max)
Package Width (mm) 1.75(Max)
PCB changed 6
Standard Package Name SOT-23
Supplier Package TSOT-23
Pin Count 6
Lead Shape Gull-wing
