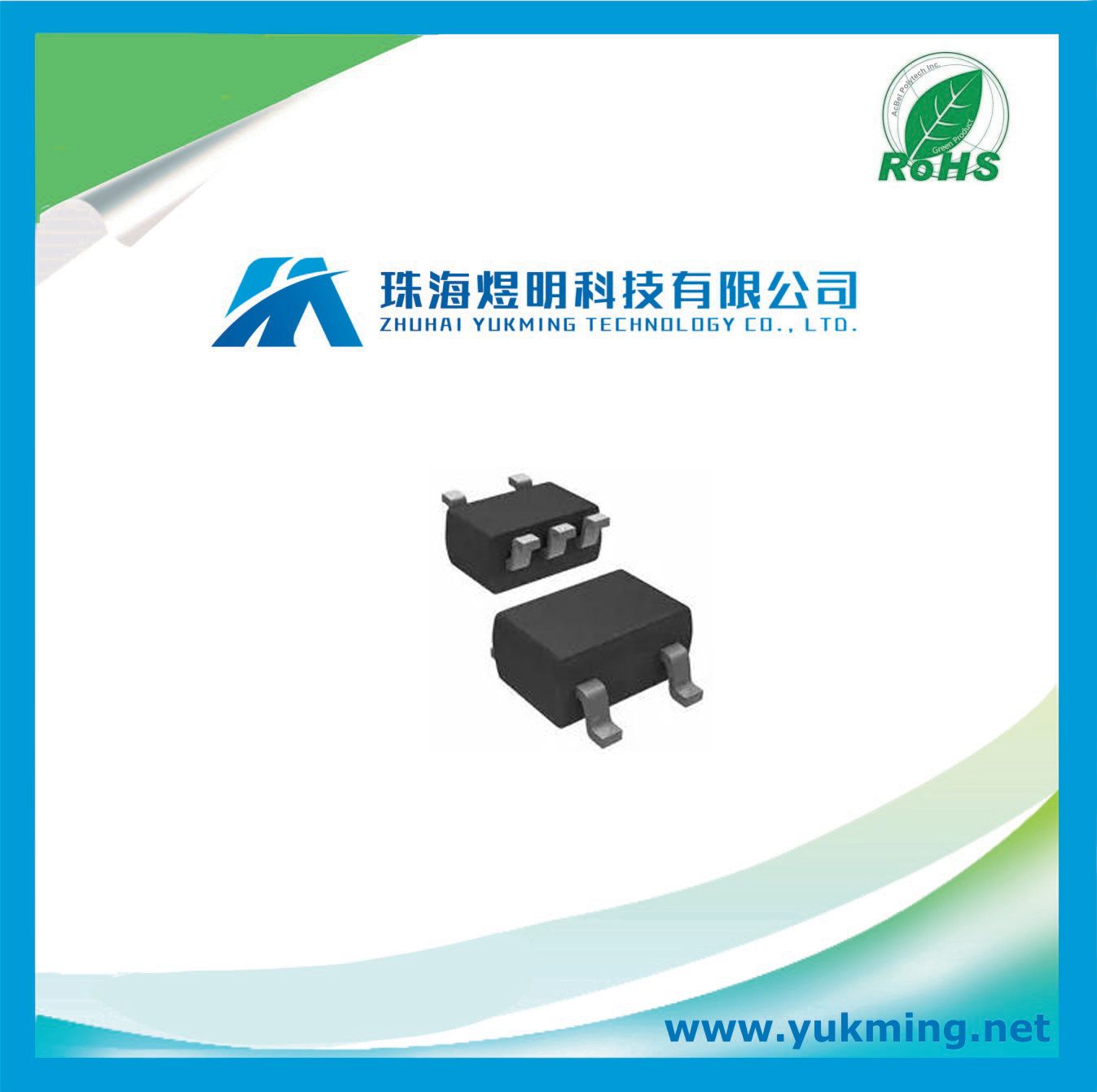

Integrated Circuit Lmv641mgx/Nopb of Operational Amplifier IC

Prod Model:	LMV641MGX/NOPB
Low Power Supply Current:	138 Ua
High Unity Gain Bandwidth:	10MHz
Max Input Offset Voltage:	500UV
Cmrr:	120 dB
Psrr:	105 dB
Operating Temperature Range:	-40 to 125 Degree C

Product Description

Categories	Integrated Circuits (ICs)
	Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Manufacturer	Texas Instruments
Packaging	Digi-Reel
Part Status	Active
Amplifier Type	General Purpose
Number of Circuits	1
Output Type	Rail-to-Rail
Slew Rate	2.6 V/us
Gain Bandwidth Product	10MHz
Current - Input Bias	70nA
Voltage - Input Offset	5uV
Current - Supply	158uA
Current - Output / Channel	112mA
Voltage - Supply, Single/Dual (+/-)	2.7 V ~ 12 V, +/- 1.35 V ~ 6 V
Operating Temperature	-40 degree C ~ 125 degree C
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Supplier Device Package	SC-70-5


Description
The LMV641 is a low-power, wide-bandwidth operational amplifier with an extended power supply voltage range of 2.7 V to 12 V.
The device features 10 MHz of gain bandwidth product with unity gain stability on a typical supply current of 138 µA. Other key specifications are a PSRR of 105 dB, CMRR of 120 dB, VOS of 500 µV, input referred voltage noise of 14 nV/√Hz, and a THD of 0.002%. This amplifier has a rail-to-rail output stage and a common mode input voltage, which includes the negative supply.
The LMV641 device operates over a temperature range of -40°C to +125°C and is offered in the board-space-saving 5-Pin SC70, SOT-23, and 8-Pin SOIC packages.

Features
Specified for 2.7-V, and ±5-V Performance
Low Power Supply Current: 138 µA
High Unity Gain Bandwidth: 10 MHz
Max Input Offset Voltage: 500 µV
CMRR: 120 dB
PSRR: 105 dB
Input Referred Voltage Noise: 14 nV/√Hz
1/f Corner Frequency: 4 Hz
Output Swing With 2-kΩ Load 40 mV from Rail
Total Harmonic Distortion: 0.002% at 1 kHz, 2 kΩ
Temperature Range -40°C to 125°C
